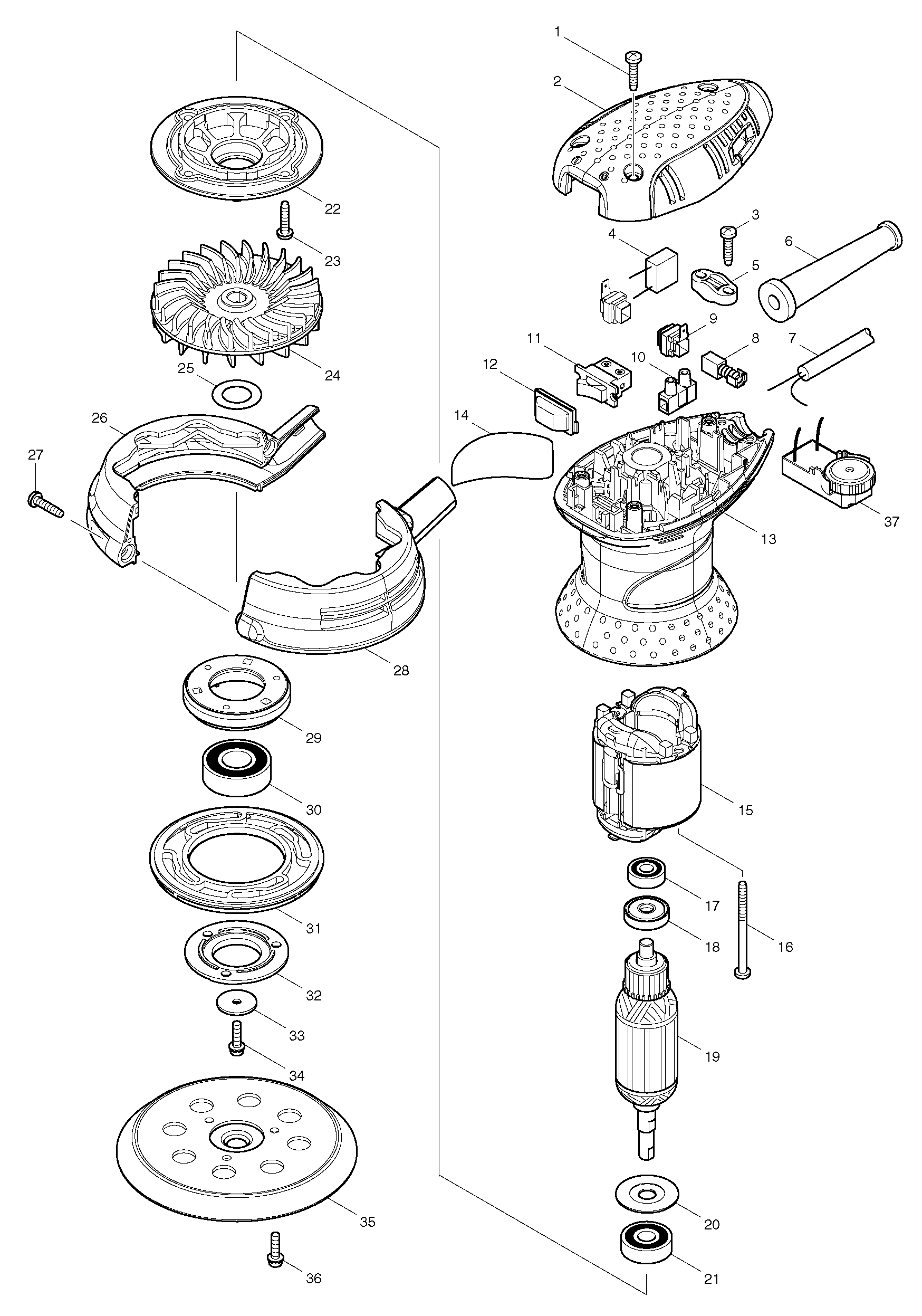

Sheet 1: Makita BO5031 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 450810-9 | Makita 450810-9 TOP COVER, BO5031 |
| 3 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 4 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 5 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 6 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 7 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 8 | 191962-4 | Old code CB-419 = CB-407 |
| 9 | 643995-0 | Makita 643995-0 BRUSH HOLDER, HP1040 |
| 10 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 11 | 651527-9 | Makita 651527-9 Switch AR01-13C-BB5B for MT920 BO4553 |
| 12 | 424039-3 | Makita 424039-3 SWITCH COVER, BO4555 |
| 13 | 450809-4 | Makita 450809-4 MOTOR HOUSING, BO5031 |
| 14 | 866159-1 | Makita 866159-1 BO5031 NAME PLATEBO5031 |
| 15 | 633674-8 | Makita 633674-8 FIELD 240V 285T, BO5030 |
| 16 | 266147-2 | Makita 266147-2 TAPPING SCREW FLANGE PT 4 X55 |
| 17 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 18 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 19 | 515734-7 | Makita 515734-7 ARMATURE ASS'Y, BO5031 |
| 20 | 267806-1 | Makita 267806-1 FLAT WASHER 9, MT920 |
| 21 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 22 | 450672-5 | Makita 450672-5 BRACKET, BO5030 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 241673-2 | Makita 241673-2 FAN 88, BO5030 |
| 25 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 26 | 188579-2 | Makita 188579-2 SKIRT L/R SETBO5031 |
| 27 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 28 | 188579-2 | Makita 188579-2 SKIRT L/R SETBO5031 |
| 29 | 318304-9 | Makita 318304-9 BEARING BOX, BO5030 |
| 30 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 31 | 424131-5 | Makita 424131-5 BRAKE RING, BO5030 |
| 32 | 318303-1 | Makita 318303-1 BEARING BOX COVER, BO5030 |
| 33 | 253739-6 | Makita 253739-6 FLAT UASHER 4, MT922 |
| 34 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 35 | 743081-8 | Old number 743081-8 |
| 36 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 37 | 631832-0 | Makita 631832-0 CONTROLLER, BO5031 |
