Makita BO5021
Makita BO5021: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BO5021: 36 positions on 1 sheet

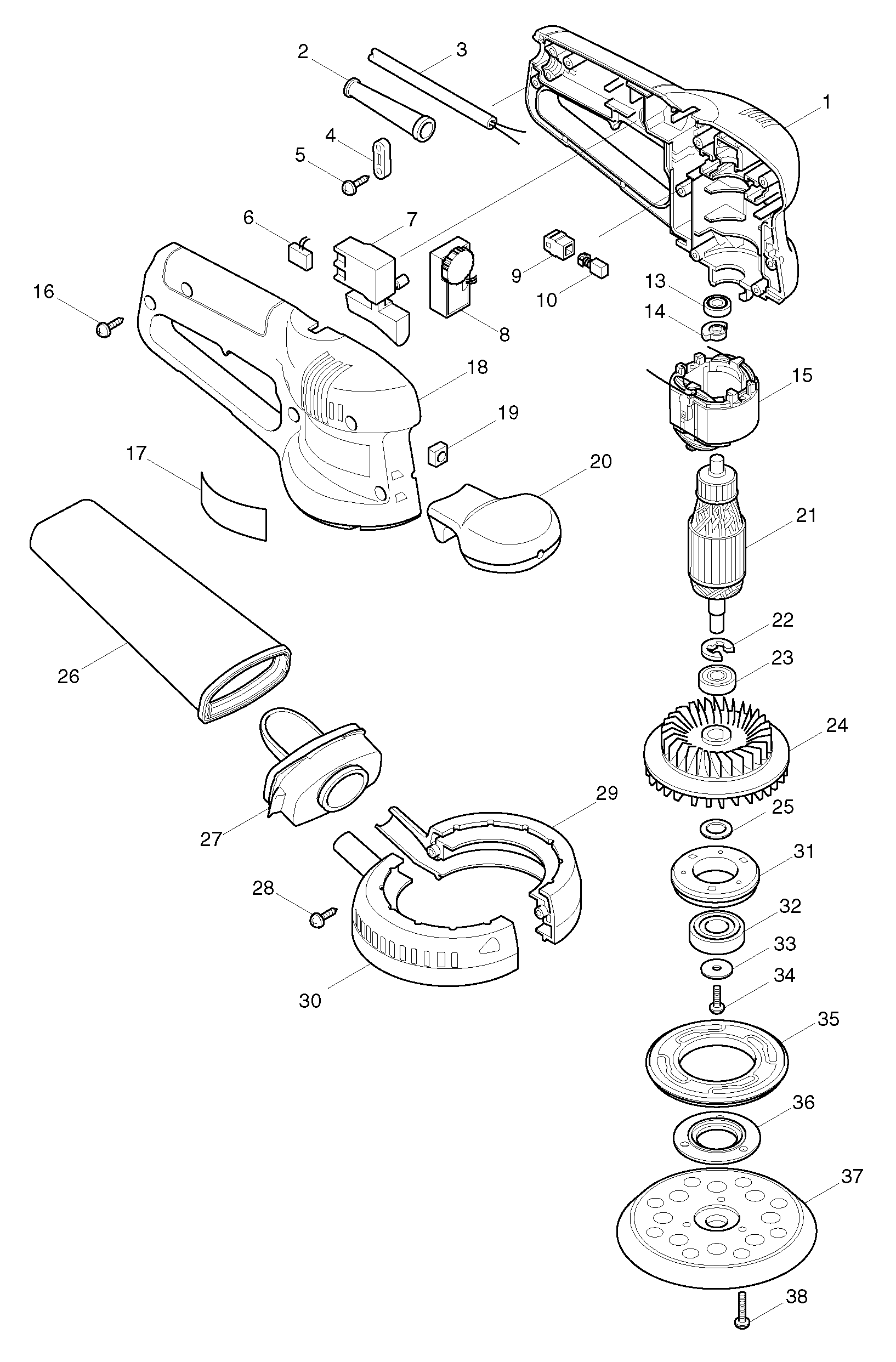

Sheet 1: Makita BO5021 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183108-6 | Makita 183108-6 HOUSING SET FOR BO5021 |
| 2 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 3 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 4 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 5 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 6 | 645006-7 | Makita 645006-7 CAPACITOR PAB473, M560 |
| 7 | 651286-5 | Makita 651286-5 Switch for 4322 4323 4327 4329 BO3700 BO4900V BO4901 BO5021 |
| 8 | 631352-4 | Makita 631352-4 CONTROLLER |
| 9 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 10 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 13 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 14 | 313080-0 | Makita 313080-0 COUNTER WEIGHT |
| 15 | 633433-0 | Makita 633433-0 FIELD 220-240V |
| 16 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 17 | 851742-7 | Makita 851742-7 NAME PLATE BO5021 |
| 18 | 183108-6 | Makita 183108-6 HOUSING SET FOR BO5021 |
| 19 | 252045-6 | Makita 252045-6 SQUARE NUT M5 |
| 20 | 168324-1 | Makita 168324-1 FRONT GRIP |
| 21 | 517233-5 | Makita 517233-5 Armature Assembly for BO5010 |
| 22 | 961015-1 | Makita 961015-1 STOP RING E-9, 6220D |
| 23 | 210020-8 | Makita 210020-8 BALL BEARING 6000DDU |
| 24 | 241896-2 | Makita 241896-2 FAN 88, BO5010 |
| 25 | 253315-6 | Makita 253315-6 THIN WASHER 15 |
| 26 | 151517-7 | Makita 151517-7 Dust Bag for BO5020 BO5021 BO6030 BO4900V |
| 27 | 151518-5 | Makita 151518-5 Plastic Dust Nozzle Piece For Sanders BO5021 BO6030 BO4900V |
| 28 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 29 | 183088-6 | Makita 183088-6 SKIRT SET FOR, BO5020 |
| 30 | 183088-6 | Makita 183088-6 SKIRT SET FOR, BO5020 |
| 31 | 316835-2 | Makita 316835-2 BEARING BOX, BO5010 |
| 32 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 33 | 253739-6 | Makita 253739-6 FLAT UASHER 4, MT922 |
| 34 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 35 | 416062-2 | Makita 416062-2 BRAKE RING FOR, BO5010 |
| 36 | 316834-4 | Makita 316834-4 Bearing Box Cover for BO5010 |
| 37 | 743051-7 | |
| 38 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
