All parts of Makita BO4901: 58 positions on 1 sheet

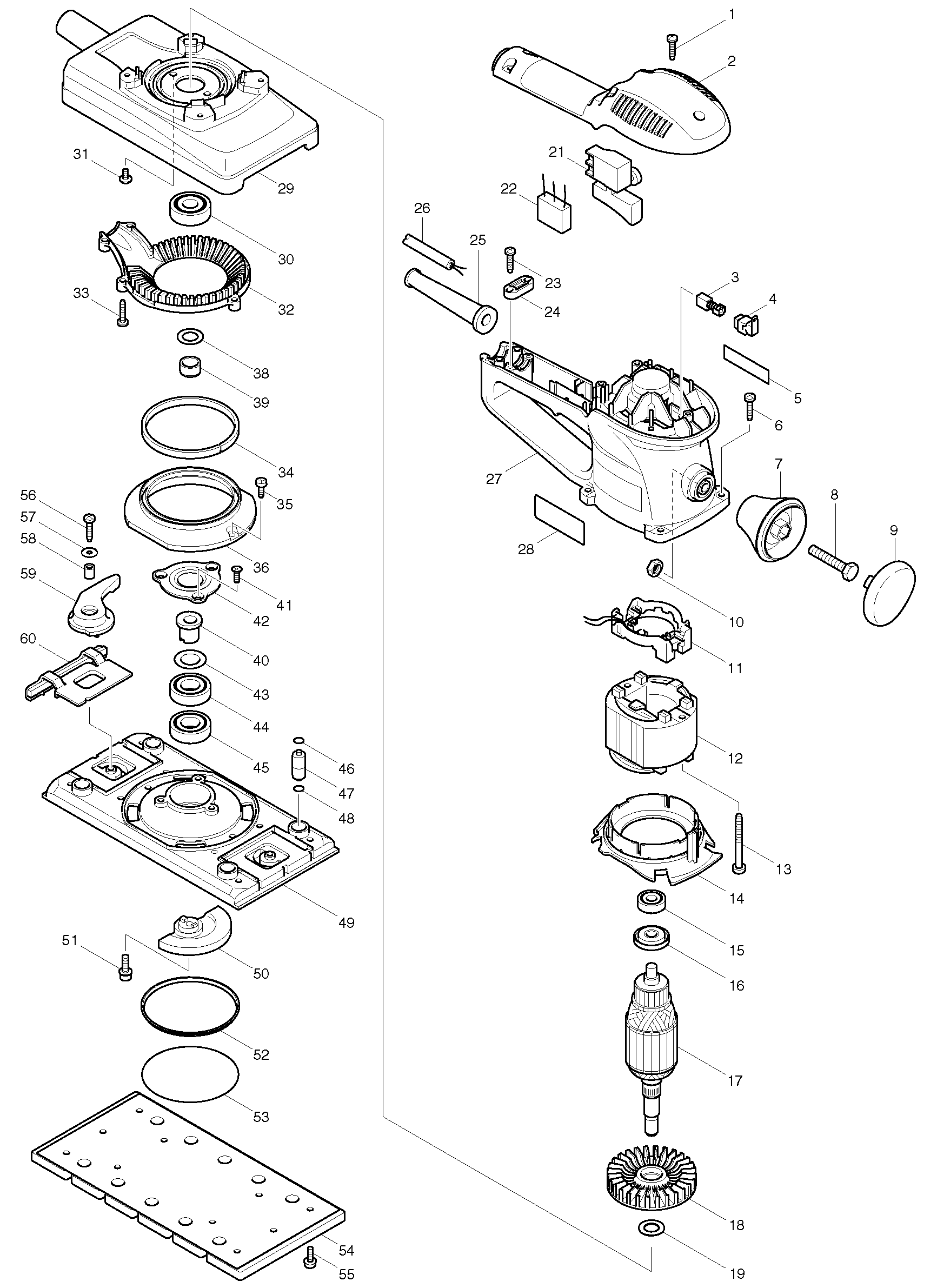

Sheet 1: Makita BO4901 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 417779-0 | Makita 417779-0 TOP COVER BO4901 |
| 3 | 191962-4 | Old code CB-419 = CB-407 |
| 4 | 643923-5 | Makita 643923-5 BRUSH HOLDER 6.5-9.5, HR2410 |
| 5 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 6 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 7 | 417774-0 | Makita 417774-0 KNOB BO4900V |
| 8 | 921467-8 | Makita 921467-8 HEX. BOLT M8X45 |
| 9 | 417775-8 | Makita 417775-8 KNOB COVER BO4900V |
| 10 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 11 | 638135-3 | |
| 12 | 634464-2 | |
| 13 | 266046-8 | Makita 266046-8 TAPPING SCREW 5X50, HR2010 |
| 14 | 417777-4 | Makita 417777-4 BAFFLE PLATE BO4900V |
| 15 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 16 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 17 | 513504-8 | Makita 513504-8 ARMATURE ASS'Y BO4900V |
| 18 | 240043-2 | Makita 240043-2 FAN 70 |
| 19 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 21 | 651286-5 | Makita 651286-5 Switch for 4322 4323 4327 4329 BO3700 BO4900V BO4901 BO5021 |
| 22 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 25 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 26 | 665890-4 | Makita 665890-4 POWER S.CORD CEE(H07RN-F), JR3060T |
| 27 | 183419-9 | Makita 183419-9 MOTOR HOUSING BO4901 |
| 28 | 853507-3 | Makita 853507-3 NAME PLATE, BO4901 |
| 29 | 317538-1 | Makita 317538-1 FRAME BO4900V |
| 30 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 31 | 251291-8 | Makita 251291-8 SCREW M4X8 |
| 32 | 417782-1 | Makita 417782-1 SCROLL COVER BO4901 |
| 33 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 34 | 443108-1 | Makita 443108-1 FELT 6X225X3, BO3700 |
| 35 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 36 | 417772-4 | Makita 417772-4 DUST GUIDE BO4900V |
| 38 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 39 | 214109-4 | Makita 214109-4 PLANE BEARING 12, 2012NB |
| 40 | 313104-2 | |
| 41 | 266058-1 | Makita 266058-1 TAPPING SCREW CT 4X12 |
| 42 | 162171-2 | Makita 162171-2 BEARING RETAINER 24 |
| 43 | 253315-6 | Makita 253315-6 THIN WASHER 15 |
| 44 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 45 | 211201-7 | Makita 211201-7 BALL BEARING 6002LLB |
| 46 | 213047-7 | Makita 213047-7 O RING, BO3700 |
| 47 | 317535-7 | Makita 317535-7 FOOT FOR, BO4900V |
| 48 | 213047-7 | Makita 213047-7 O RING, BO3700 |
| 49 | 317537-3 | Makita 317537-3 BASE FOR BO4901 |
| 50 | 317536-5 | Makita 317536-5 BALANCER BO4900V |
| 51 | 266071-9 | Makita 266071-9 HEX. SOCKET HEAD BOLT M5X |
| 52 | 345211-3 | Makita 345211-3 UNDER COVER BO4900V |
| 53 | 213755-0 | Makita 213755-0 O RING 75 HM1400 |
| 54 | 193523-6 | Makita 193523-6 PAD FOR, BO4900; BO4900V; BO4901 |
| 55 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 56 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 57 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 58 | 257659-6 | Makita 257659-6 SLEEVE 4 |
| 59 | 153361-8 | Makita 153361-8 CLAMP LEVER COMPL |
| 60 | 153362-6 | Makita 153362-6 PAPER CLAMP COMPL |
