All parts on this sheet0
All parts of Makita BO4561: 32 positions on 1 sheet

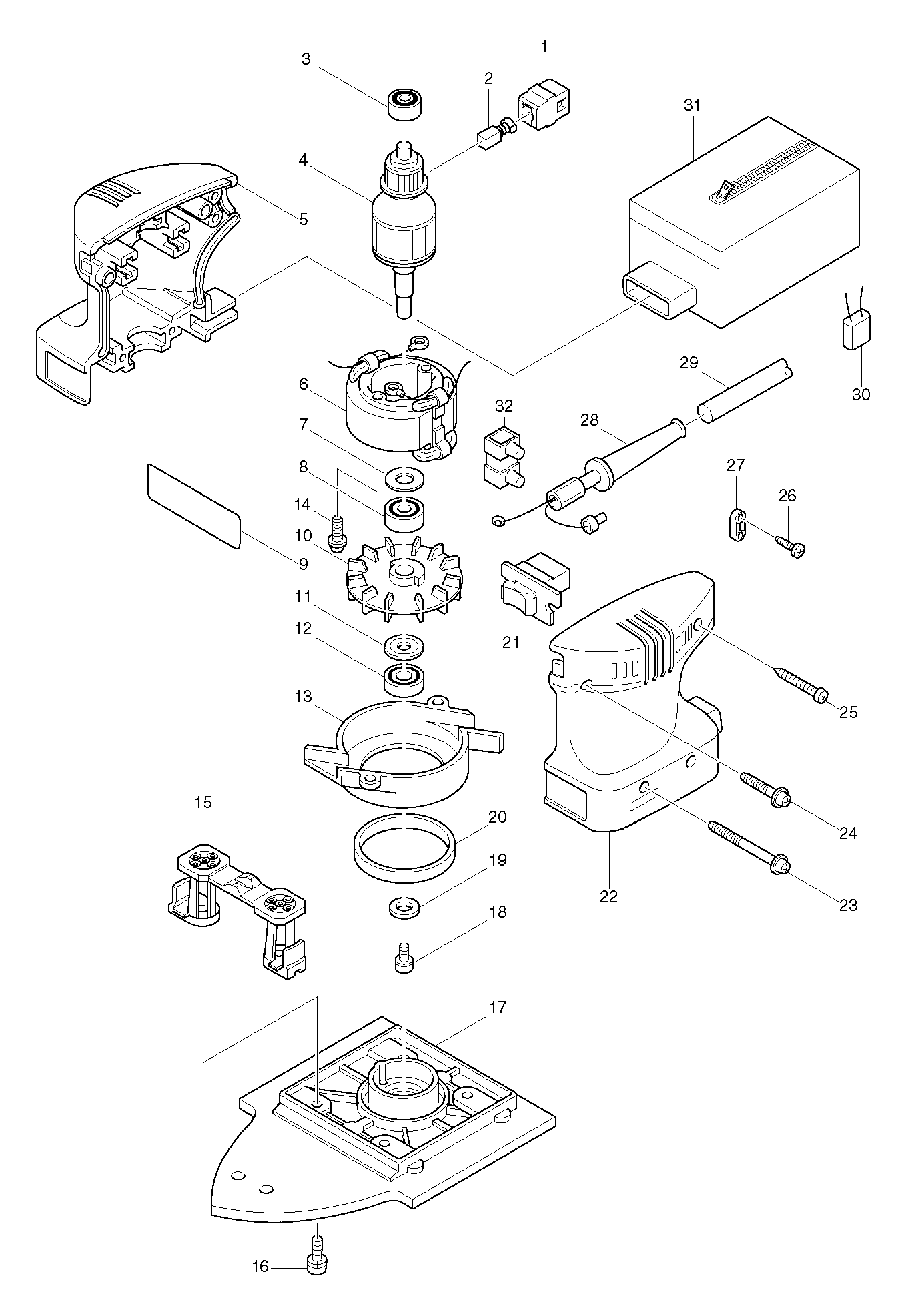

Sheet 1: Makita BO4561 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 2 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 3 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 4 | 517083-8 | Makita 517083-8 ARMATURE ASS'Y BO4561 |
| 5 | 182777-0 | Makita 182777-0 HOUSING SET BO4561 |
| 6 | 599319-7 | Makita 599319-7 FIELD ASS Y 220V |
| 7 | 253214-2 | Makita 253214-2 FLAT WASHER 9 |
| 8 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 9 | 858238-9 | Makita 858238-9 NAME PLATE BO4561 |
| 10 | 241658-8 | Makita 241658-8 FAN 63 |
| 11 | 213051-6 | Makita 213051-6 DUST SEAL 10 |
| 12 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 13 | 410752-9 | Makita 410752-9 BAFFLE PLATE |
| 14 | 265871-4 | Makita 265871-4 TAPPING SCREW BT M4X16 |
| 15 | 414312-9 | Makita 414312-9 FOOT |
| 16 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 17 | 152478-4 | DISC 152478-4 |
| 18 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 19 | 253825-3 | Makita 253825-3 FLAT WASHER 6 |
| 20 | 262512-3 | Makita 262512-3 RUBBER SLEEVE 48 |
| 21 | 651606-3 | Makita 651606-3 Switch SS106A-7 for 9207SPB BO4530 BO4510 GE0600 BO4510 |
| 22 | 182777-0 | Makita 182777-0 HOUSING SET BO4561 |
| 23 | 265872-2 | Makita 265872-2 TAPPING SCREW BT 4X50 |
| 24 | 265875-6 | Makita 265875-6 TAPPING SCREW BT 4X25 |
| 25 | 265876-4 | Makita 265876-4 TAPPING SCREW BT 4X40 |
| 26 | 266121-0 | Makita 266121-0 TAPPING SCREW FLANGE PF 4 X18 |
| 27 | 687063-9 | Makita 687063-9 CORD CLAMP, 6410 |
| 28 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 29 | 666053-5 | Makita 666053-5 POWER S.CORD HD-21 CORD, 4329 |
| 30 | 645118-6 | Makita 645118-6 NOISE SUPPRESSOR |
| 31 | 166027-1 | Makita 166027-1 Dust Bag for BO4550 BO4561 BO4553 BO4554 |
| 32 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
