Makita BO3700
Makita BO3700: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BO3700: 43 positions on 1 sheet

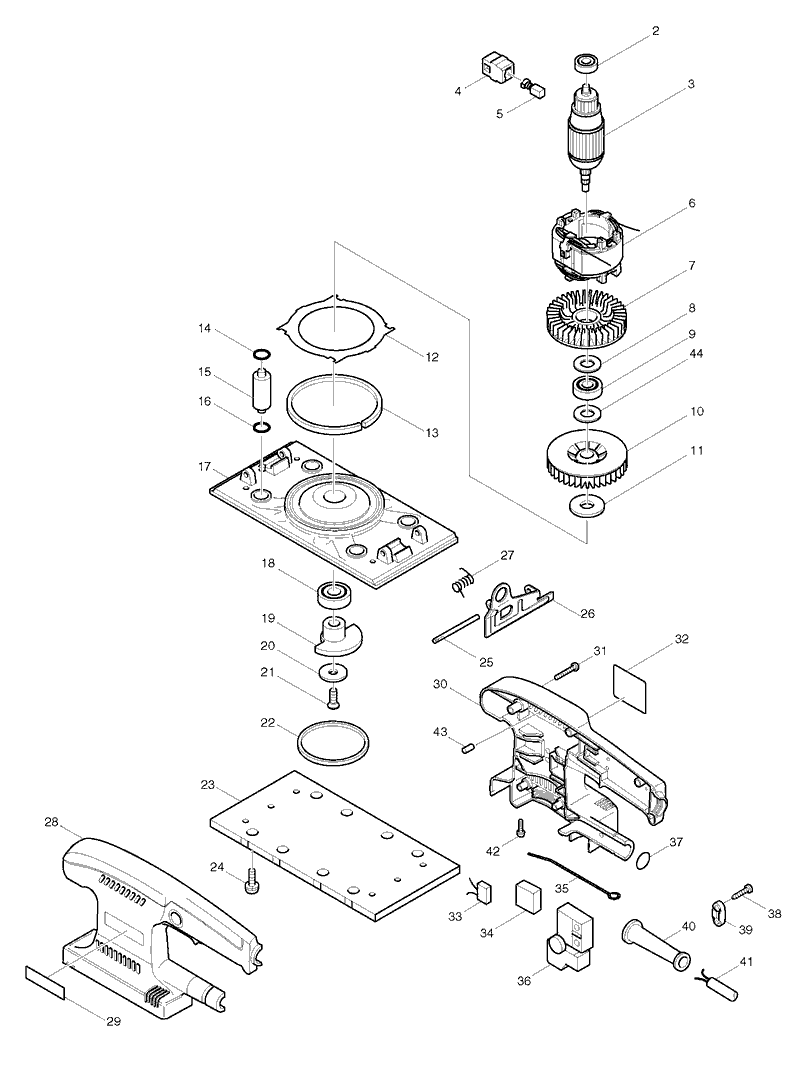

Sheet 1: Makita BO3700 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 3 | 517339-9 | Makita 517339-9 ARMATURE ASSY 230-240V, BO3700 |
| 4 | 643552-4 | Makita 643552-4 BRUSH HOLDER, 6409 |
| 5 | 191627-8 | Makita 191627-8 Carbon Brushes CB-64 for JR3000V BO3710 BO4552 |
| 6 | 599339-1 | Makita 599339-1 FIELD ASSY 220-240V, BO3700 |
| 7 | 240038-5 | Makita 240038-5 FAN 65, BO3700 |
| 8 | 253311-4 | Makita 253311-4 THIN WASHER, BO3700 |
| 9 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 10 | 240029-6 | Makita 240029-6 FAN 68, BO3700 |
| 11 | 267216-2 | Makita 267216-2 FLAT WASHER 8, BO3700 |
| 12 | 344832-8 | Makita 344832-8 PLATE, BO3700 |
| 13 | 443108-1 | Makita 443108-1 FELT 6X225X3, BO3700 |
| 14 | 213047-7 | Makita 213047-7 O RING, BO3700 |
| 15 | 324031-8 | Makita 324031-8 FOOT, BO3700 |
| 16 | 213047-7 | Makita 213047-7 O RING, BO3700 |
| 17 | 317285-4 | Makita 317285-4 BASE, BO3700 |
| 18 | 211227-9 | Makita 211227-9 BALL BEARING 6002DDW |
| 19 | 317284-6 | Makita 317284-6 BALANCER, BO3700 |
| 20 | 267001-3 | Makita 267001-3 FLAT WASHER 7, BO3700 |
| 21 | 912222-9 | Makita 912222-9 COUNTERSUNK HEAD M5X16, M926 |
| 22 | 261114-2 | Makita 261114-2 SPONGE WASHER 53 |
| 23 | 151781-0 | |
| 24 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 25 | 256739-5 | Makita 256739-5 PIN 4-55 |
| 26 | 344831-0 | Makita 344831-0 PAPER CLAMP |
| 27 | 231647-1 | Makita 231647-1 TORSION SPRING 4, BO3700 |
| 28 | 183232-5 | Makita 183232-5 MOTOR HOUSING COMPLETE, BO3700 |
| 29 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 30 | 183232-5 | Makita 183232-5 MOTOR HOUSING COMPLETE, BO3700 |
| 31 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 32 | 852707-2 | Makita 852707-2 NAME PLATE BO3700 |
| 33 | 645006-7 | Makita 645006-7 CAPACITOR PAB473, M560 |
| 34 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 35 | 323947-4 | Makita 323947-4 EARTH WIRE |
| 36 | 651286-5 | Makita 651286-5 Switch for 4322 4323 4327 4329 BO3700 BO4900V BO4901 BO5021 |
| 37 | 213315-8 | Makita 213315-8 O RING 19, BO3710 |
| 38 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 39 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 40 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 41 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 42 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 43 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 44 | 253311-4 | Makita 253311-4 THIN WASHER, BO3700 |
