Makita BMR102
Makita BMR102: exploded parts diagram, 1 sheet, 100 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BMR102: 100 positions on 1 sheet

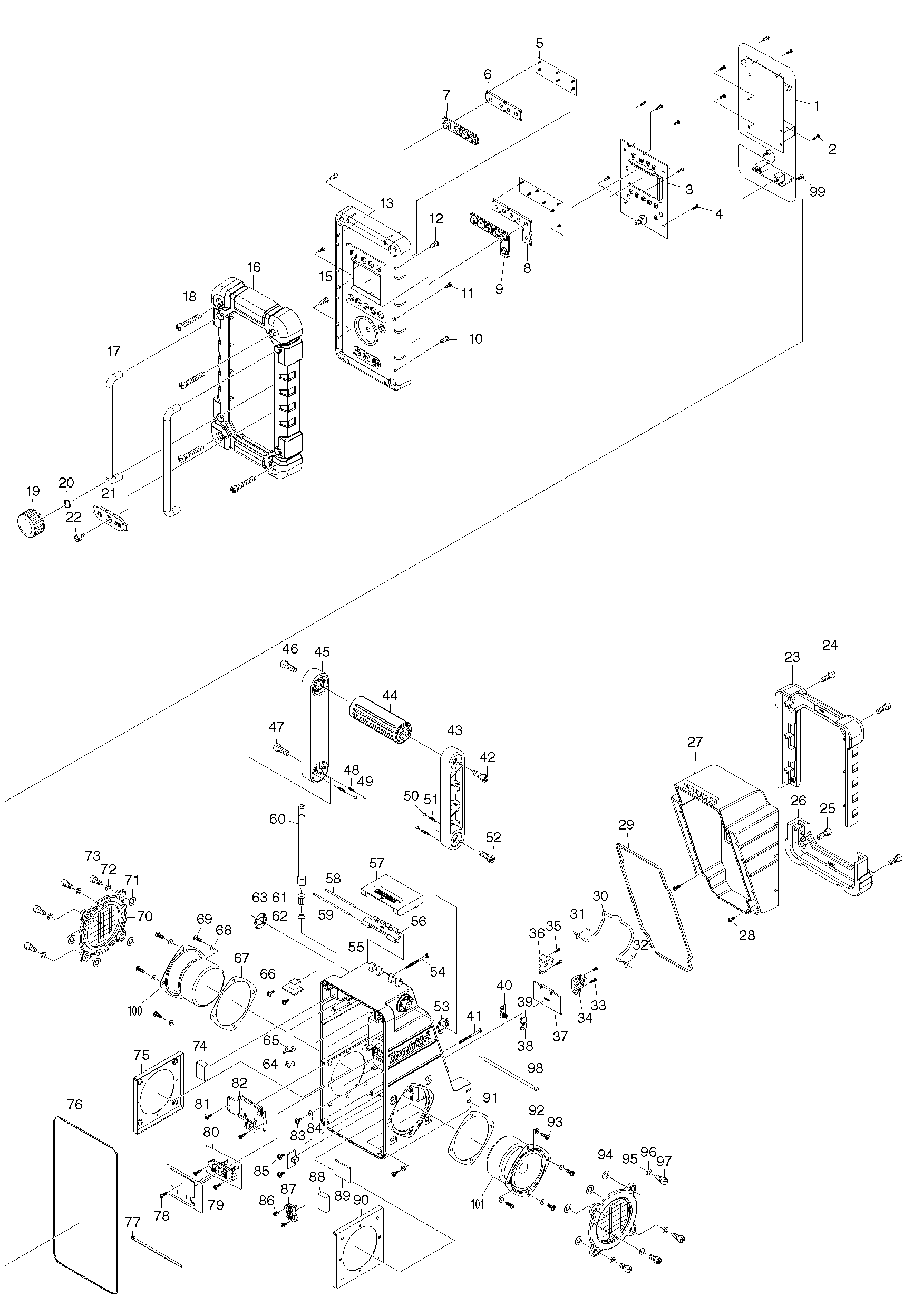

Sheet 1: Makita BMR102 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | SE00000140 | Makita SE00000140 CIRCUIT BOARD A ASSY |
| 2 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 3 | SE00000155 | Makita SE00000155 CIRCUIT BOARD C ASSY |
| 4 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 5 | SE09090011 | Makita SE09090011 SCREW 1.7 DMR108 |
| 6 | SE020PC020 | Makita SE020PC020 POWER BUTTON HOLDER DMR107 |
| 7 | SE00000157 | Makita SE00000157 POWER BUTTON (GRY) |
| 8 | SE020PC030 | Makita SE020PC030 PRESET BUTTON HOLDER DMR107 |
| 9 | SE00000158 | Makita SE00000158 PRESET BUTTON (GRY) |
| 10 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 11 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 12 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 13 | SE00000204 | Makita SE00000204 FRONT CABINET ASSY |
| 15 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 16 | SE00000159 | Makita SE00000159 FRONT BUMPER |
| 17 | SE0338PC5Z | Makita SE0338PC5Z FRONT BAR |
| 18 | SE00000160 | Makita SE00000160 SCREW PTHE6X47 (CR) |
| 19 | SE00000161 | Makita SE00000161 Radio Volume Switch Knob for BMR102W |
| 20 | SE21B1110A | Makita SE21B1110A ROTARY KNOB RING |
| 21 | SE0335PC5Z | |
| 22 | SE09173106 | Makita SE09173106 HEX SCREW M3X10 |
| 23 | SE00000162 | Makita SE00000162 BATTERY COVER BUMPER |
| 24 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 25 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 26 | SE00000165 | Makita SE00000165 REAR BUMPER |
| 27 | SE00000166 | Makita SE00000166 BATTERY COVER |
| 28 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 29 | SE00000168 | Makita SE00000168 PACKING |
| 30 | SE00000169 | Makita SE00000169 SUPPORT BAR |
| 31 | SE00000170 | Makita SE00000170 SPRING-L |
| 32 | SE00000171 | Makita SE00000171 SPRING-R |
| 33 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 34 | SE00000173 | Makita SE00000173 SPRING HOLDER-R |
| 35 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 36 | SE00000175 | Makita SE00000175 SPRING HOLDER-L |
| 37 | SE0307PC5Z | Makita SE0307PC5Z BACK UP BATTER COVER DMR107 |
| 38 | SE021E9010 | Makita SE021E9010 BATTERY CONTACT (+) |
| 39 | SE021E9020 | Makita SE021E9020 BATTERY CONTACT (-) |
| 40 | SE021E9030 | Makita SE021E9030 +/- BATTERY CONTACT ASS'Y |
| 41 | SE09163452 | Makita SE09163452 SCREW M3X45 DMR107 |
| 42 | SE00000176 | Makita SE00000176 SCREW PTHE6X20(CR) |
| 43 | SE00000177 | Makita SE00000177 HANDLE HOLDER ( R) |
| 44 | SE00000179 | Makita SE00000179 Handle DMR104 DMR104W DMR102 BMR102 |
| 45 | SE00000180 | Makita SE00000180 HANDLE HOLDER (L) |
| 46 | SE00000176 | Makita SE00000176 SCREW PTHE6X20(CR) |
| 47 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 48 | SE00000184 | Makita SE00000184 SPRING |
| 49 | SE09994007 | Makita SE09994007 STEEL BALL |
| 50 | SE09994007 | Makita SE09994007 STEEL BALL |
| 51 | SE00000184 | Makita SE00000184 SPRING |
| 52 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 53 | SE00000187 | Makita SE00000187 HANDLE SUS-PLATE ( R) |
| 54 | SE09163452 | Makita SE09163452 SCREW M3X45 DMR107 |
| 55 | SE00000188 | Makita SE00000188 REAR CABINET |
| 56 | SE00000067 | Makita SE00000067 LOCKER HINGERBMR100W |
| 57 | SE00000190 | Makita SE00000190 BATTERY COVER LOCKER |
| 58 | SE021PC050 | Makita SE021PC050 LOCKER FIXER PIN 63.8 |
| 59 | SE021PC040 | Makita SE021PC040 LOCKER FIXER PIN 79.BMR100 |
| 60 | SE00000191 | Makita SE00000191 Radio Aerial Antenna Rod for BMR103B DMR102 |
| 61 | SE021J9032 | Makita SE021J9032 ROD ANT HOLDER |
| 62 | SE024J9050 | Makita SE024J9050 PACKING |
| 63 | SE00000192 | Makita SE00000192 HANDLE SUS-PLATE (L) |
| 64 | SE021P0020 | Makita SE021P0020 NUT |
| 65 | SE021PC100 | Makita SE021PC100 ROD ANT TERMINAL |
| 66 | SE00000193 | Makita SE00000193 SCREW 3X10 |
| 67 | SE024J9030 | Makita SE024J9030 PACKING |
| 68 | SE024J9070 | Makita SE024J9070 PACKING |
| 69 | SE09090023 | Makita SE09090023 SCREW M4X12 DMR107 |
| 70 | SE00000205 | Makita SE00000205 Speaker Net Assembly |
| 71 | SE024J9090 | Makita SE024J9090 PACKING |
| 72 | SE024J9040 | Makita SE024J9040 PACKING |
| 73 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
| 74 | SE023PC020 | Makita SE023PC020 EVA 25X18X5.5 |
| 75 | SE021J9010 | Makita SE021J9010 SPEAKER HOLDER BMR100 |
| 76 | SE024PC040 | Makita SE024PC040 PACKING |
| 77 | SE00000195 | Makita SE00000195 W/TIES 100MM |
| 78 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 79 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 80 | SE00000098 | Makita SE00000098 CLUSTER BATTERY HOLDER |
| 81 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 82 | SE00000197 | Makita SE00000197 TERMINAL D |
| 83 | SE00000193 | Makita SE00000193 SCREW 3X10 |
| 84 | SE00000199 | Makita SE00000199 SILICON RUBBER WASHER |
| 85 | SE00000193 | Makita SE00000193 SCREW 3X10 |
| 86 | SE09163062 | |
| 87 | SE00000200 | Makita SE00000200 TERMINAL C |
| 88 | SE023PC020 | Makita SE023PC020 EVA 25X18X5.5 |
| 89 | SE02311000 | |
| 90 | SE021J9010 | Makita SE021J9010 SPEAKER HOLDER BMR100 |
| 91 | SE024J9030 | Makita SE024J9030 PACKING |
| 92 | SE024J9070 | Makita SE024J9070 PACKING |
| 93 | SE09090023 | Makita SE09090023 SCREW M4X12 DMR107 |
| 94 | SE024J9090 | Makita SE024J9090 PACKING |
| 95 | SE00000205 | Makita SE00000205 Speaker Net Assembly |
| 96 | SE024J9040 | Makita SE024J9040 PACKING |
| 97 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
| 98 | SE021PC030 | Makita SE021PC030 BATTERY COVER LOCKER |
| 99 | SE00000193 | Makita SE00000193 SCREW 3X10 |
| 100 | SE01620771 | Makita SE01620771 Speaker BMR100 |
| 101 | SE01620771 | Makita SE01620771 Speaker BMR100 |
