All parts of Makita BMR100W: 93 positions on 1 sheet

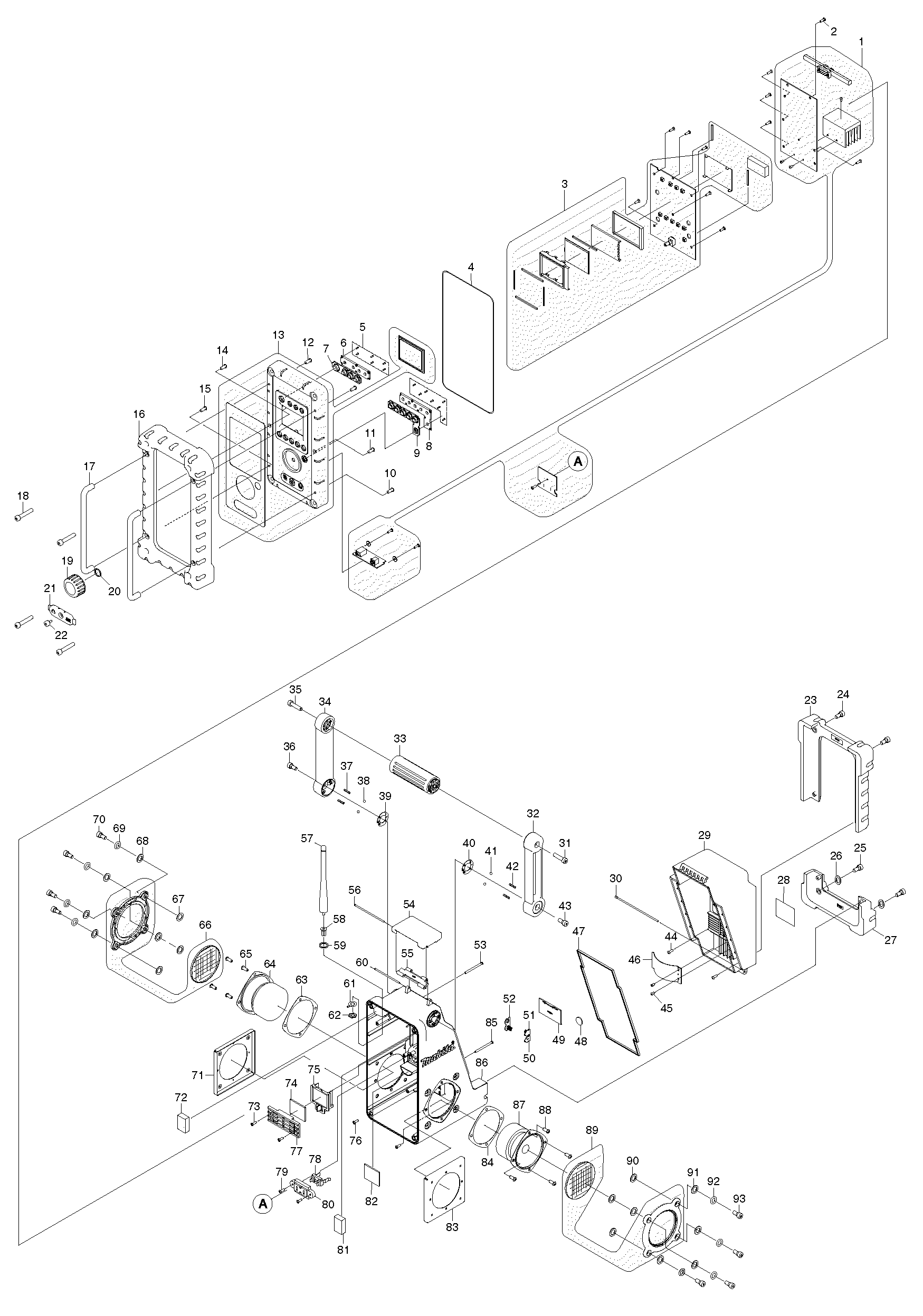

Sheet 1: Makita BMR100W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | SE00000036 | |
| 2 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 3 | SE00000037 | |
| 4 | SE024PC040 | Makita SE024PC040 PACKING |
| 5 | SE09090011 | Makita SE09090011 SCREW 1.7 DMR108 |
| 6 | SE020PC020 | Makita SE020PC020 POWER BUTTON HOLDER DMR107 |
| 7 | SE0310PC5Z | |
| 8 | SE020PC030 | Makita SE020PC030 PRESET BUTTON HOLDER DMR107 |
| 9 | SE0312PC5Z | |
| 10 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 11 | SE09163082 | |
| 12 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 13 | SE00000005 | |
| 14 | SE09163082 | |
| 15 | SE09064161 | Makita SE09064161 SCREW M4X16 DMR107 |
| 16 | SE0331PC5Z | |
| 17 | SE0338PC5Z | Makita SE0338PC5Z FRONT BAR |
| 18 | SE09176426 | |
| 19 | SE0313PC5Z | Makita SE0313PC5Z Radio Volume Switch Knob for BMR100W BMR101W |
| 20 | SE21B1110A | Makita SE21B1110A ROTARY KNOB RING |
| 21 | SE00000042 | Makita SE00000042 Jack Cover BMR100 |
| 22 | SE09173106 | Makita SE09173106 HEX SCREW M3X10 |
| 23 | SE0334PC5Z | |
| 24 | SE09176106 | |
| 25 | SE09176106 | |
| 26 | SE024J9070 | Makita SE024J9070 PACKING |
| 27 | SE0333PC5Z | |
| 28 | SE0340PC5Z | |
| 29 | SE00000027 | Makita SE00000027 BATTERY COVER (WHITE) |
| 30 | SE021PC030 | Makita SE021PC030 BATTERY COVER LOCKER |
| 31 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
| 32 | SE00000028 | |
| 33 | SE0309J96A | Makita SE0309J96A Radio Replacement Grip Handle BMR100 BMR101 |
| 34 | SE00000029 | |
| 35 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
| 36 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 37 | SE021J9090 | Makita SE021J9090 SPRING |
| 38 | SE09994007 | Makita SE09994007 STEEL BALL |
| 39 | SE021J9070 | Makita SE021J9070 HANDLE SUS-PLATE |
| 40 | SE021J9070 | Makita SE021J9070 HANDLE SUS-PLATE |
| 41 | SE09994007 | Makita SE09994007 STEEL BALL |
| 42 | SE021J9090 | Makita SE021J9090 SPRING |
| 43 | SE09176166 | Makita SE09176166 HEX SCREW M6X16 |
| 44 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 45 | SE09163062 | |
| 46 | SE021PC000 | |
| 47 | SE024PC010 | Makita SE024PC010 PACKINGBMR100 |
| 48 | SE00000030 | |
| 49 | SE00000031 | |
| 50 | SE021E9010 | Makita SE021E9010 BATTERY CONTACT (+) |
| 51 | SE021E9020 | Makita SE021E9020 BATTERY CONTACT (-) |
| 52 | SE021E9030 | Makita SE021E9030 +/- BATTERY CONTACT ASS'Y |
| 53 | SE09163452 | Makita SE09163452 SCREW M3X45 DMR107 |
| 54 | SE0308PC5Z | Makita SE0308PC5Z BATTERY COVER LOCKERBMR100 |
| 55 | SE0314PC5Z | Makita SE0314PC5Z LOCKER HINGERBMR100 |
| 56 | SE021PC040 | Makita SE021PC040 LOCKER FIXER PIN 79.BMR100 |
| 57 | SE00000033 | Makita SE00000033 Aerial Antenna Rod BMR100 BMR102 DMR102 DRM104 BMR103B |
| 58 | SE021J9032 | Makita SE021J9032 ROD ANT HOLDER |
| 59 | SE024J9050 | Makita SE024J9050 PACKING |
| 60 | SE021PC050 | Makita SE021PC050 LOCKER FIXER PIN 63.8 |
| 61 | SE021PC100 | Makita SE021PC100 ROD ANT TERMINAL |
| 62 | SE021P0020 | Makita SE021P0020 NUT |
| 63 | SE024J9030 | Makita SE024J9030 PACKING |
| 64 | SE01620771 | Makita SE01620771 Speaker BMR100 |
| 65 | SE09090023 | Makita SE09090023 SCREW M4X12 DMR107 |
| 66 | SE00000006 | |
| 67 | SE024J9090 | Makita SE024J9090 PACKING |
| 68 | SE024J9070 | Makita SE024J9070 PACKING |
| 69 | SE024J9040 | Makita SE024J9040 PACKING |
| 70 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
| 71 | SE021J9010 | Makita SE021J9010 SPEAKER HOLDER BMR100 |
| 72 | SE023PC020 | Makita SE023PC020 EVA 25X18X5.5 |
| 73 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 74 | SE023PC000 | Makita SE023PC000 SPACER |
| 75 | GM00000530 | Makita GM00000530 BATTERY HOLDERBML184 |
| 76 | SE09153102 | |
| 77 | SE020PC050 | Makita SE020PC050 SLIDE BATTERY HOLDER |
| 78 | 643926-9 | Makita 643926-9 BATTERY HOLDER |
| 79 | SE09163102 | Makita SE09163102 SCREW M3X10 |
| 80 | SE020PC040 | Makita SE020PC040 CLUSTER BATTERY HOLDER |
| 81 | SE023PC020 | Makita SE023PC020 EVA 25X18X5.5 |
| 82 | SE02311000 | |
| 83 | SE021J9010 | Makita SE021J9010 SPEAKER HOLDER BMR100 |
| 84 | SE024J9030 | Makita SE024J9030 PACKING |
| 85 | SE09163452 | Makita SE09163452 SCREW M3X45 DMR107 |
| 86 | SE00000032 | |
| 87 | SE01620771 | Makita SE01620771 Speaker BMR100 |
| 88 | SE09090023 | Makita SE09090023 SCREW M4X12 DMR107 |
| 89 | SE00000006 | |
| 90 | SE024J9090 | Makita SE024J9090 PACKING |
| 91 | SE024J9070 | Makita SE024J9070 PACKING |
| 92 | SE024J9040 | Makita SE024J9040 PACKING |
| 93 | SE9076146A | Makita SE9076146A Hex Screw M6X14 for BMR101 BMR101W |
