Makita BMR100

Makita BMR100: exploded parts diagram, 1 sheet, 93 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BMR100: 93 positions on 1 sheet

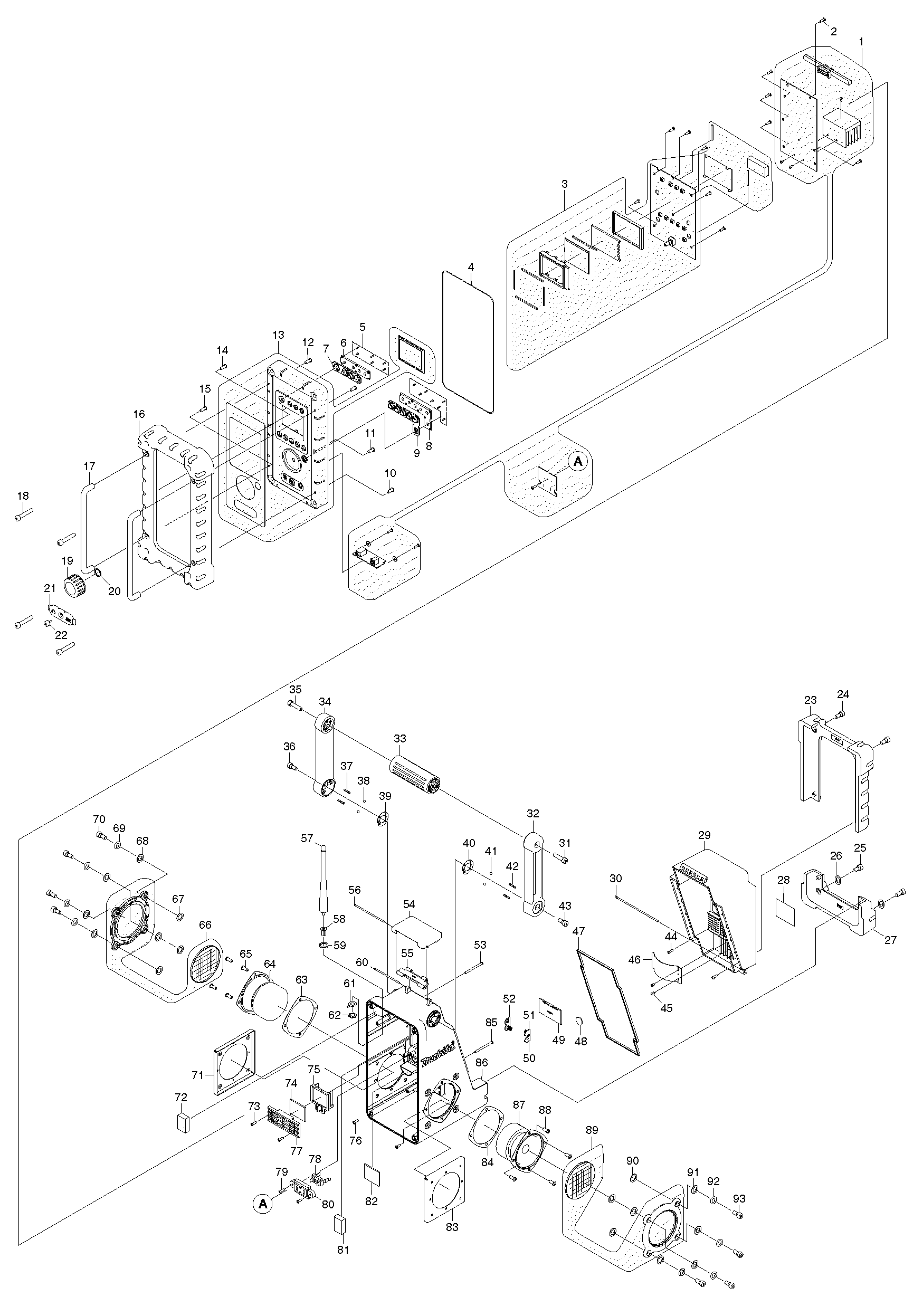

Sheet 1: Makita BMR100 parts diagram

Makita BMR100 parts diagram, sheet 1
No.Part numberPart name
1SE00000012Makita SE00000012 CIRCUIT BOARD A ASSY, BMR100
2SE09163102Makita SE09163102 SCREW M3X10
3SE00000013Makita SE00000013 CIRCUIT BOARD C ASSY, BMR100
4SE024PC040Makita SE024PC040 PACKING
5SE09090011Makita SE09090011 SCREW 1.7 DMR108
6SE020PC020Makita SE020PC020 POWER BUTTON HOLDER DMR107
7SE0310PC5Z
8SE020PC030Makita SE020PC030 PRESET BUTTON HOLDER DMR107
9SE0312PC5Z
10SE09064161Makita SE09064161 SCREW M4X16 DMR107
11SE09163082
12SE09064161Makita SE09064161 SCREW M4X16 DMR107
13SE00000005
14SE09163082
15SE09064161Makita SE09064161 SCREW M4X16 DMR107
16SE0331PC5Z
17SE0338PC5ZMakita SE0338PC5Z FRONT BAR
18SE09176426
19SE0313PC5ZMakita SE0313PC5Z Radio Volume Switch Knob for BMR100W BMR101W
20SE21B1110AMakita SE21B1110A ROTARY KNOB RING
21SE0335PC5Z
22SE09173106Makita SE09173106 HEX SCREW M3X10
23SE0334PC5Z
24SE09176106
25SE09176106
26SE024J9070Makita SE024J9070 PACKING
27SE0333PC5Z
28SE0340PC5Z
29SE0304PC5ZMakita SE0304PC5Z BATTERY COVERBMR100
30SE021PC030Makita SE021PC030 BATTERY COVER LOCKER
31SE9076146AMakita SE9076146A Hex Screw M6X14 for BMR101 BMR101W
32SE309PC5ZRMakita SE309PC5ZR HANDLE HOLDER RBMR100
33SE0309J96AMakita SE0309J96A Radio Replacement Grip Handle BMR100 BMR101
34SE309PC5ZLMakita SE309PC5ZL HANDLE HOLDER LBMR100
35SE9076146AMakita SE9076146A Hex Screw M6X14 for BMR101 BMR101W
36SE09176166Makita SE09176166 HEX SCREW M6X16
37SE021J9090Makita SE021J9090 SPRING
38SE09994007Makita SE09994007 STEEL BALL
39SE021J9070Makita SE021J9070 HANDLE SUS-PLATE
40SE021J9070Makita SE021J9070 HANDLE SUS-PLATE
41SE09994007Makita SE09994007 STEEL BALL
42SE021J9090Makita SE021J9090 SPRING
43SE09176166Makita SE09176166 HEX SCREW M6X16
44SE09163102Makita SE09163102 SCREW M3X10
45SE09163062
46SE021PC000
47SE024PC010Makita SE024PC010 PACKINGBMR100
48SE023PC030
49SE0307PC5ZMakita SE0307PC5Z BACK UP BATTER COVER DMR107
50SE021E9010Makita SE021E9010 BATTERY CONTACT (+)
51SE021E9020Makita SE021E9020 BATTERY CONTACT (-)
52SE021E9030Makita SE021E9030 +/- BATTERY CONTACT ASS'Y
53SE09163452Makita SE09163452 SCREW M3X45 DMR107
54SE0308PC5ZMakita SE0308PC5Z BATTERY COVER LOCKERBMR100
55SE0314PC5ZMakita SE0314PC5Z LOCKER HINGERBMR100
56SE021PC040Makita SE021PC040 LOCKER FIXER PIN 79.BMR100
57SE0360PC5JMakita SE0360PC5J ROD ANTBMR100
58SE021J9032Makita SE021J9032 ROD ANT HOLDER
59SE024J9050Makita SE024J9050 PACKING
60SE021PC050Makita SE021PC050 LOCKER FIXER PIN 63.8
61SE021PC100Makita SE021PC100 ROD ANT TERMINAL
62SE021P0020Makita SE021P0020 NUT
63SE024J9030Makita SE024J9030 PACKING
64SE01620771Makita SE01620771 Speaker BMR100
65SE09090023Makita SE09090023 SCREW M4X12 DMR107
66SE00000006
67SE024J9090Makita SE024J9090 PACKING
68SE024J9070Makita SE024J9070 PACKING
69SE024J9040Makita SE024J9040 PACKING
70SE9076146AMakita SE9076146A Hex Screw M6X14 for BMR101 BMR101W
71SE021J9010Makita SE021J9010 SPEAKER HOLDER BMR100
72SE023PC020Makita SE023PC020 EVA 25X18X5.5
73SE09163102Makita SE09163102 SCREW M3X10
74SE023PC000Makita SE023PC000 SPACER
75643926-9Makita 643926-9 BATTERY HOLDER
76SE09153102
77SE020PC050Makita SE020PC050 SLIDE BATTERY HOLDER
78GM00000530Makita GM00000530 BATTERY HOLDERBML184
79SE09163102Makita SE09163102 SCREW M3X10
80SE020PC040Makita SE020PC040 CLUSTER BATTERY HOLDER
81SE023PC020Makita SE023PC020 EVA 25X18X5.5
82SE02311000
83SE021J9010Makita SE021J9010 SPEAKER HOLDER BMR100
84SE024J9030Makita SE024J9030 PACKING
85SE09163452Makita SE09163452 SCREW M3X45 DMR107
86SE0303PC5Z
87SE01620771Makita SE01620771 Speaker BMR100
88SE09090023Makita SE09090023 SCREW M4X12 DMR107
89SE00000006
90SE024J9090Makita SE024J9090 PACKING
91SE024J9070Makita SE024J9070 PACKING
92SE024J9040Makita SE024J9040 PACKING
93SE9076146AMakita SE9076146A Hex Screw M6X14 for BMR101 BMR101W
