Makita BMR050: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BMR050: 32 positions on 1 sheet

Sheet 1: Makita BMR050 parts diagram

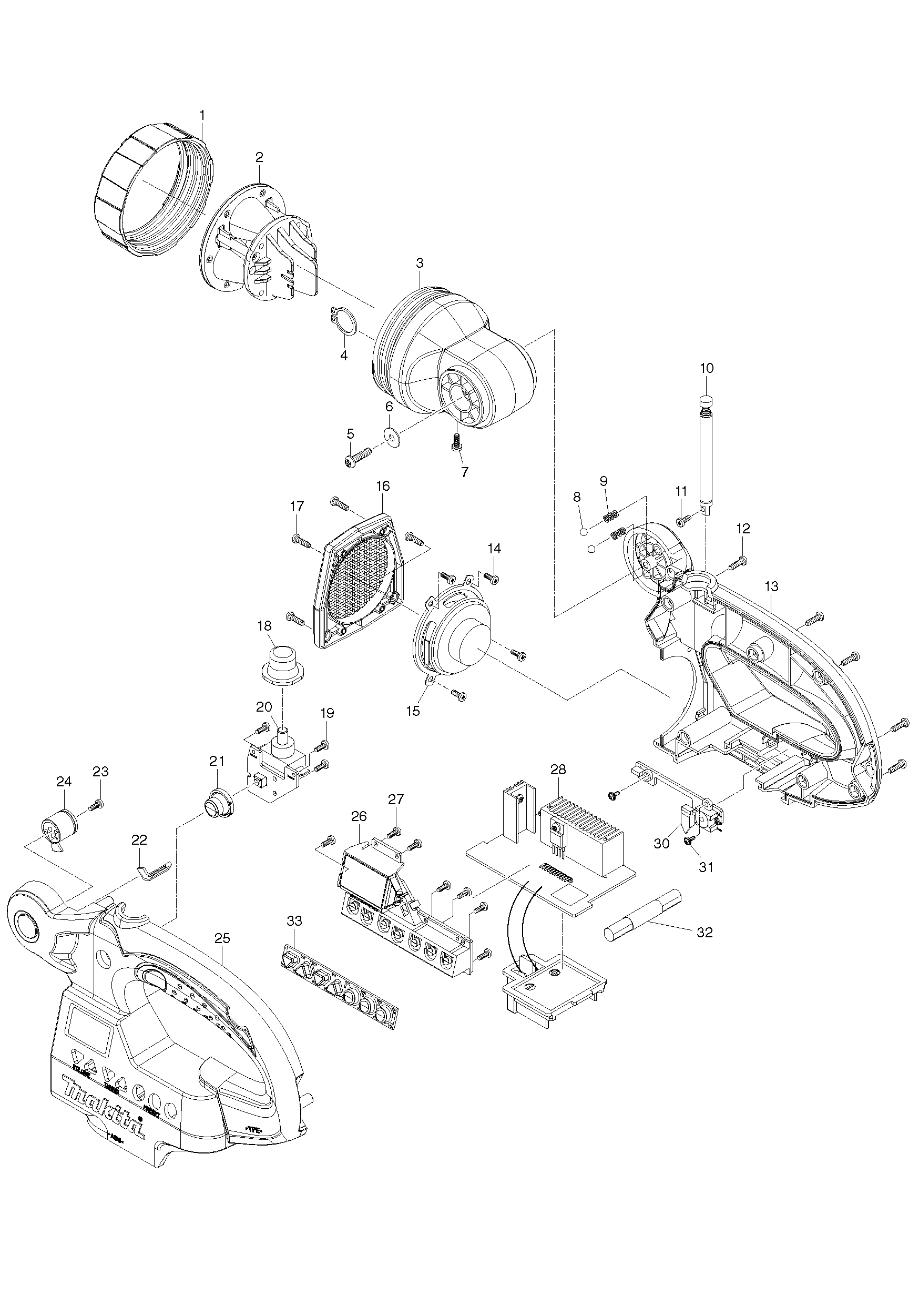

Makita BMR050 parts diagram, sheet 1
No.Part numberPart name
1SE00000108Makita SE00000108 LIGHT COVER
2SE00000109Makita SE00000109 LED MOUDLE
3SE00000111Makita SE00000111 LIGHT REAR COVER
4SE00000112Makita SE00000112 C RING
5SE00000113Makita SE00000113 SCREW M4X15
6SE00000114Makita SE00000114 WASHER 4
7SE00000115Makita SE00000115 SCREW M3X8
8SE00000116Makita SE00000116 STEEL BALL 4
9SE00000117Makita SE00000117 CLICK SPRING
10SE00000118Makita SE00000118 Radio Aerial Antenna Ariel Rod for BMR050 BMR 050
11SE00000119Makita SE00000119 SCREW M2,6X7
12SE00000120Makita SE00000120 SCREW M3X10
13SE00000121Makita SE00000121 REAR CABINET
14SE00000119Makita SE00000119 SCREW M2,6X7
15SE00000122Makita SE00000122 SPEAKER KIT
16SE00000123Makita SE00000123 SPEAKER GRILL
17SE00000120Makita SE00000120 SCREW M3X10
18SE00000124Makita SE00000124 PUSH KNOB
19SE00000119Makita SE00000119 SCREW M2,6X7
20SE00000125Makita SE00000125 LIGHT KNOB ASSY
21SE00000126Makita SE00000126 PUSH KNOB
22SE00000127Makita SE00000127 WIRE COVER
23SE00000119Makita SE00000119 SCREW M2,6X7
24SE00000128Makita SE00000128 LIGHT SHAFT
25SE00000129Makita SE00000129 FRONT CABINET
26SE00000130Makita SE00000130 CIRCUIT BOARD C ASSY
27SE00000119Makita SE00000119 SCREW M2,6X7
28SE00000133Makita SE00000133 CIRCUIT BOARD A ASSY
30SE00000134Makita SE00000134 SENSOR TERMINAL ASSY
31SE00000135Makita SE00000135 SCREW M2X5
32SE00000136Makita SE00000136 BAR ANT ASSY
33SE00000137Makita SE00000137 PUSH KNOB FUNCTION
