Makita BML184
Makita BML184: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BML184: 17 positions on 1 sheet

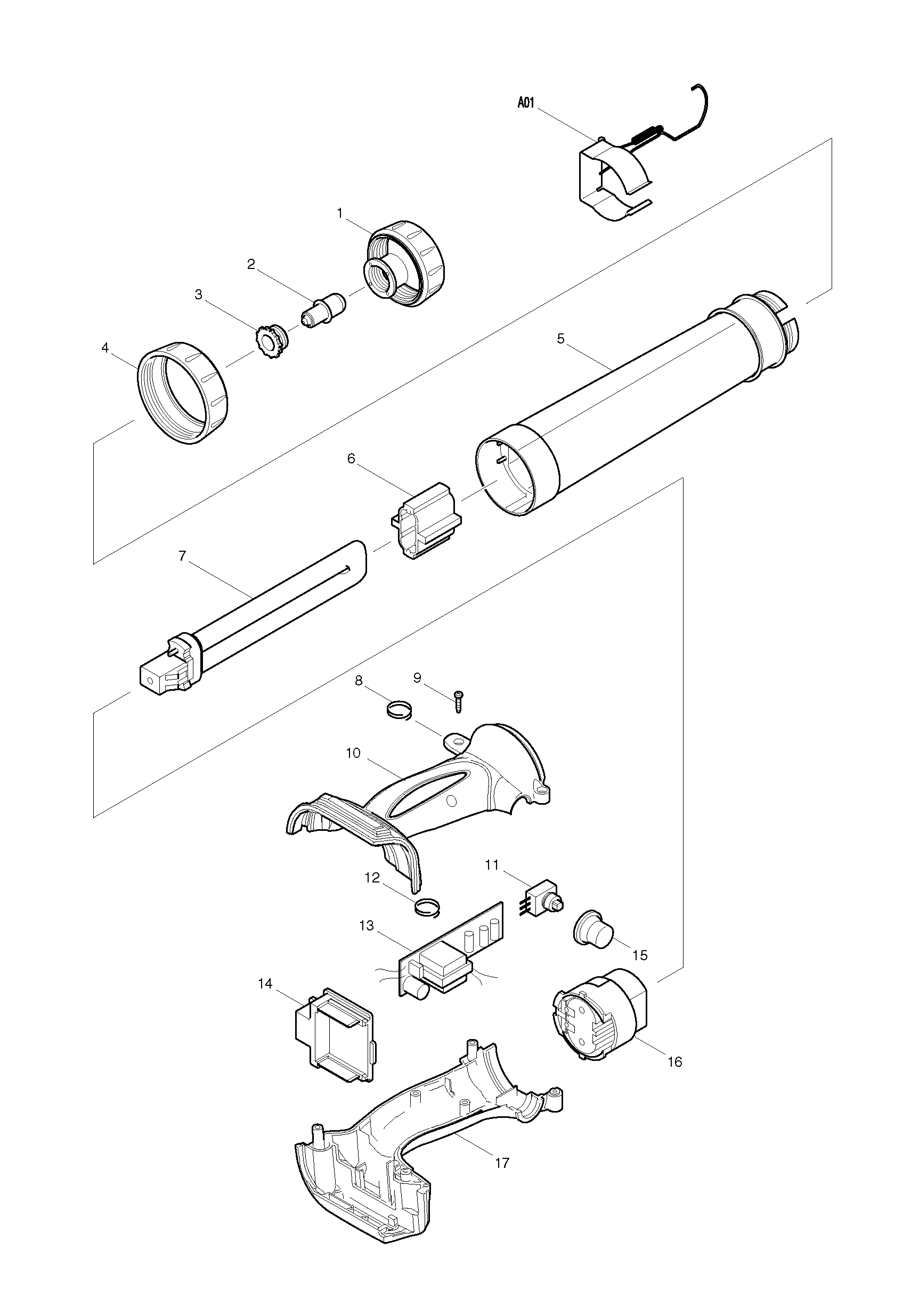

Sheet 1: Makita BML184 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | GM00001021 | Makita GM00001021 REFLECTORBML184 |
| 2 | B-07303 | Makita B-07303 Light Bulb 2 pcs 14,4v; 18v for BML184 |
| 3 | GM00001020 | Makita GM00001020 BULB HOLDERBML184 |
| 4 | GM00001019 | Makita GM00001019 LOCK RINGBML184 |
| 5 | GM00001017 | Makita GM00001017 LAMP COVERBML184 |
| 6 | GM00001023 | Makita GM00001023 ABSORBERBML184 |
| 7 | SM00000050 | |
| 8 | SM00000190 | Makita SM00000190 RINGBML184 |
| 9 | GM00001024 | Makita GM00001024 SCREW 3X12BML184 |
| 10 | GM00001048 | Makita GM00001048 HOUSING SETBML184 |
| 11 | GM00001025 | Makita GM00001025 SWITCHBML184 |
| 12 | SM00000190 | Makita SM00000190 RINGBML184 |
| 13 | GM00001049 | Makita GM00001049 PCBBML184 |
| 14 | GM00000530 | Makita GM00000530 BATTERY HOLDERBML184 |
| 15 | GM00001022 | Makita GM00001022 SWITCH COVERBML184 |
| 16 | GM00001018 | Makita GM00001018 HOLDERBML184 |
| 17 | GM00001048 | Makita GM00001048 HOUSING SETBML184 |
