Bosch BMH 45 XE rotary hammer: exploded parts diagram, 2 sheets, 116 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BMH 45 XE: 116 positions on 2 sheets

Bosch BMH 45 XE parts list (2 sheets)

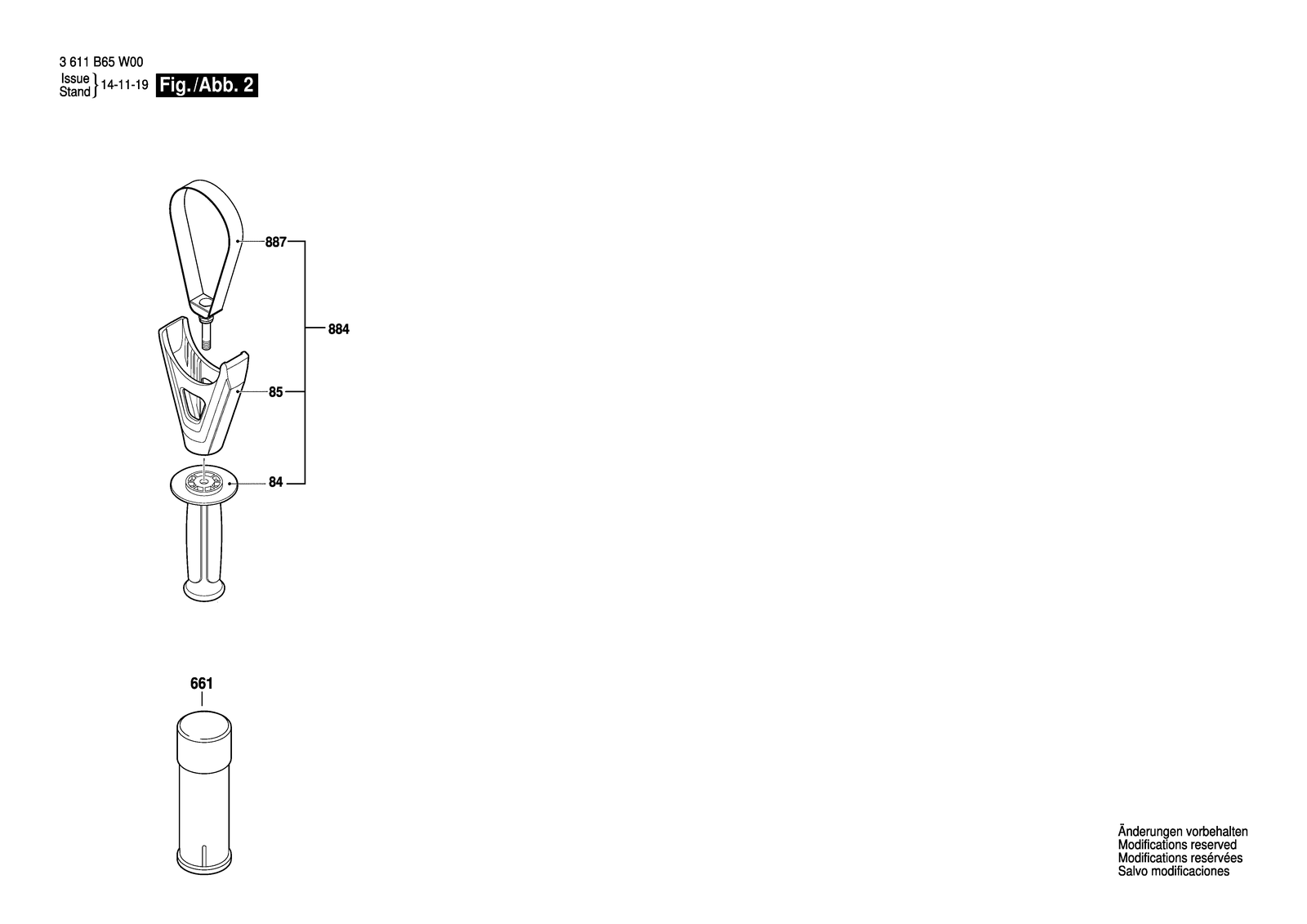

Bosch BMH 45 XE parts diagram, sheet 1Bosch BMH 45 XE parts diagram, sheet 2
No.Part numberPart name
1161510817AMotor Housing
1041610190027Stop Disc
1101610190073Seal Ring
1111610290046Bushing
1121613300007Hex Nut
1131613412001Tapping Screw B 4,8X68 MM
1151610300086Bushing
1161610913029Needle-Roller Assembly
1171610913023Needle-Roller Assembly
1191610910081Needle-Roller Bearing
1201610190080Spacer Tube
1221610290128Spacer Ring
1251613435040Torx Oval-Head Screw
1262603490023Torx Oval-Head Screw 4X20
1271610300079Bushing
1291610300080Bushing
131610900026Groove ball bearing 8X24X8
1381611015064Sealing Frame
141610910096Needle-Roller Bearing
1421610290112Rotary shaft lip seal
1431614601072Retaining ring
1441610103025Supporting Disc
151616610109Fan
1511610210222O-Ring
1521614601073Retaining ring
1532916540017Retaining ring DIN 7993 A 30
1542916660027Spring retaining ring DIN 472 62X2 MM
1551614601074Retaining ring
1571610210103O-Ring 33,0X2,0 MM
1581610210224O-Ring
1601610210246O-Ring
1611610210227Damping Ring
1621600210080O-Ring
1651610290125Seal Ring
1661613200020Cylindrical Roller
167161029012ARotary shaft lip seal
1681610206027Packing Washer
1711613414026Torx socket button screw
1721613435041Torx Oval-Head Screw
1752603490021Torx Oval-Head Screw 4X12
189161513213AHandle
190161550044UHandle Cover
1921614611028Rocker Foot
1941610099018Screw Plate
1951610099019Screw Plate
1961610026004Damping rubber
1971616232000Leaf Spring
21614220124Field 220-240V
2041615102162Rear Housing Section
2061612386006Holding strip
211610508038Protective Cap
221610591051Protection Sleeve
231610520006Stop Sleeve
241610500025Headed Bush
2401600A000K3Counterweight
2411615190181Guide Piece
2421615190182Guide Piece
2431614621013Compression Spring
251612300027Stopping Device
261600A019WLIndexing Disk
27160059105CAir-Deflector Ring
281614621010Compression Spring
311610290129Damping Ring
351615806249Hammer Pipe
371610322018Control Bushing
381600A00220Covering hood
38/1160111C02JSticker
38/2160111C04HSticker
41617200130Switch
421614336090Brush Holder
431615500435Brush-Cover
441614621020Compression Spring
451610591052Holding-Down-Appliance
471610300076Gear Sleeve
481619990177Clutch Sleeve
521610224015Retaining snap ring
541600A019Z4Spacer Tube
581616317620Cylindrical Gear
591615805074Bearing Pedestal
61610703053Grommet Ø9,7-Ø12X89 MM
6611615439012Oil Spray Tin
71601302018Fastening Clamp
721616317090Eccentric Cog Wheel
8016072335R2Speed governor
8011610102096Shim 0,45 MM
8021610102095Shim 0,30 MM
8031614010267Armature 230V
8051617000723Power supply cord
808160111A3HDNameplate
8101617014145Carbon-Brush Set
8201618597102Toolholder
8211610508058Plain bearing
841612025083Auxiliary Handle Black
8401617000A29Impact Mechanism Housing
8411617000A4RStriker Pin
8491617000A31Control Fork
851618040095Support clamp
8531610231004Guide Bushing
8561617000A32Hammer Piston
8571617000A33Striker
8601607000EL4Spur Wheel Clutch
8631610210229O-Ring
8721617000A35Eccentric
8731617000A58Housing Cover
8841617000A5CAuxiliary Handle
8871617000807Clamping Band Ø87 MM
8911612099005Rocker Arm
8951613120024Diaphragm
8971617000A5ABoot
8981617000A5BBoot
8991600A004E6Service package
9160111C02HSticker BMH 45-XE
941610290111Supporting Disc
951613120023Driving Pin
981610101015Shim ring Thick 1,0 MM
991600220029Backup ring
