Bosch BMH 32-XE

Bosch BMH 32-XE rotary hammer: exploded parts diagram, 2 sheets, 117 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BMH 32-XE: 117 positions on 2 sheets

Bosch BMH 32-XE parts list (2 sheets)

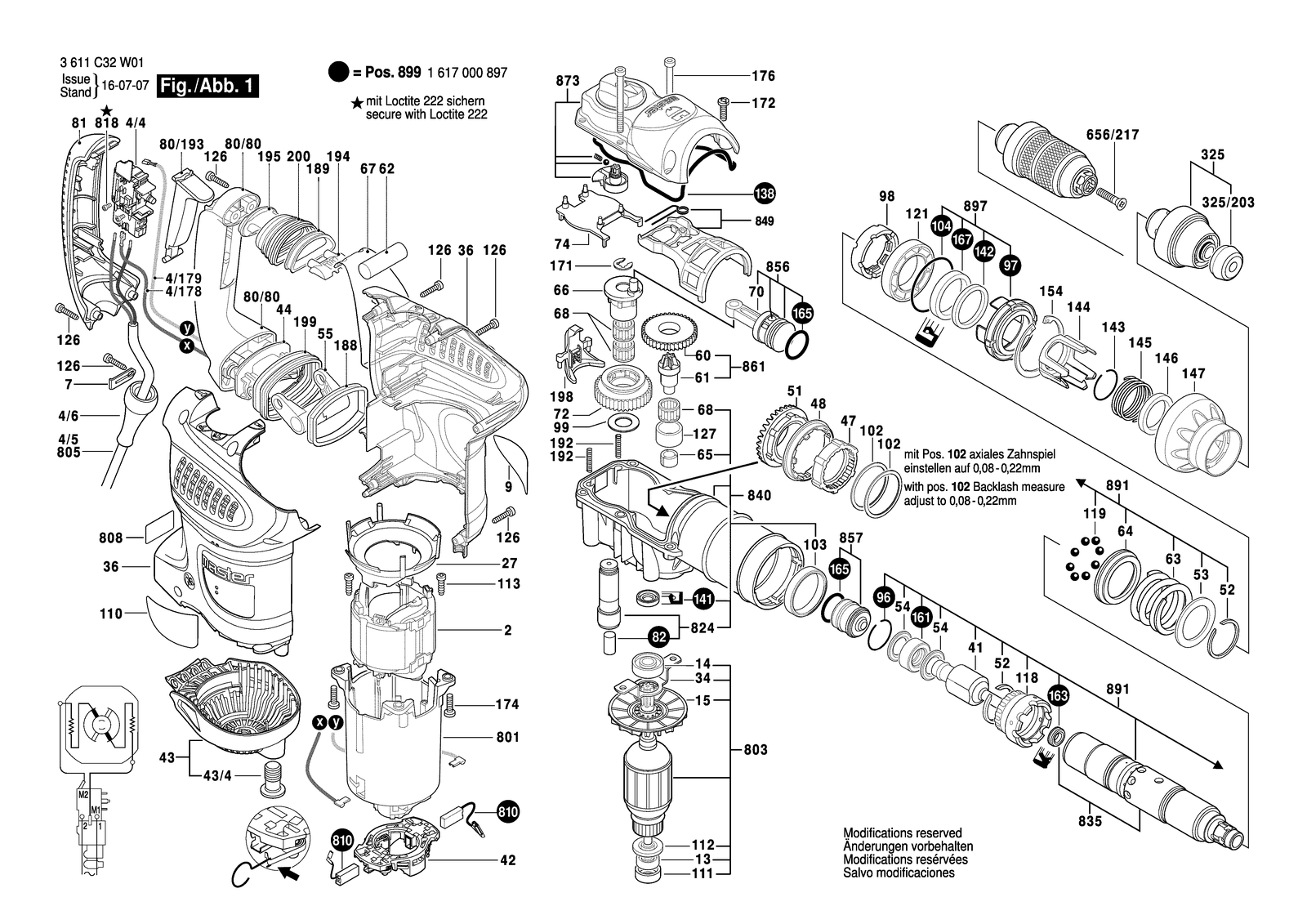

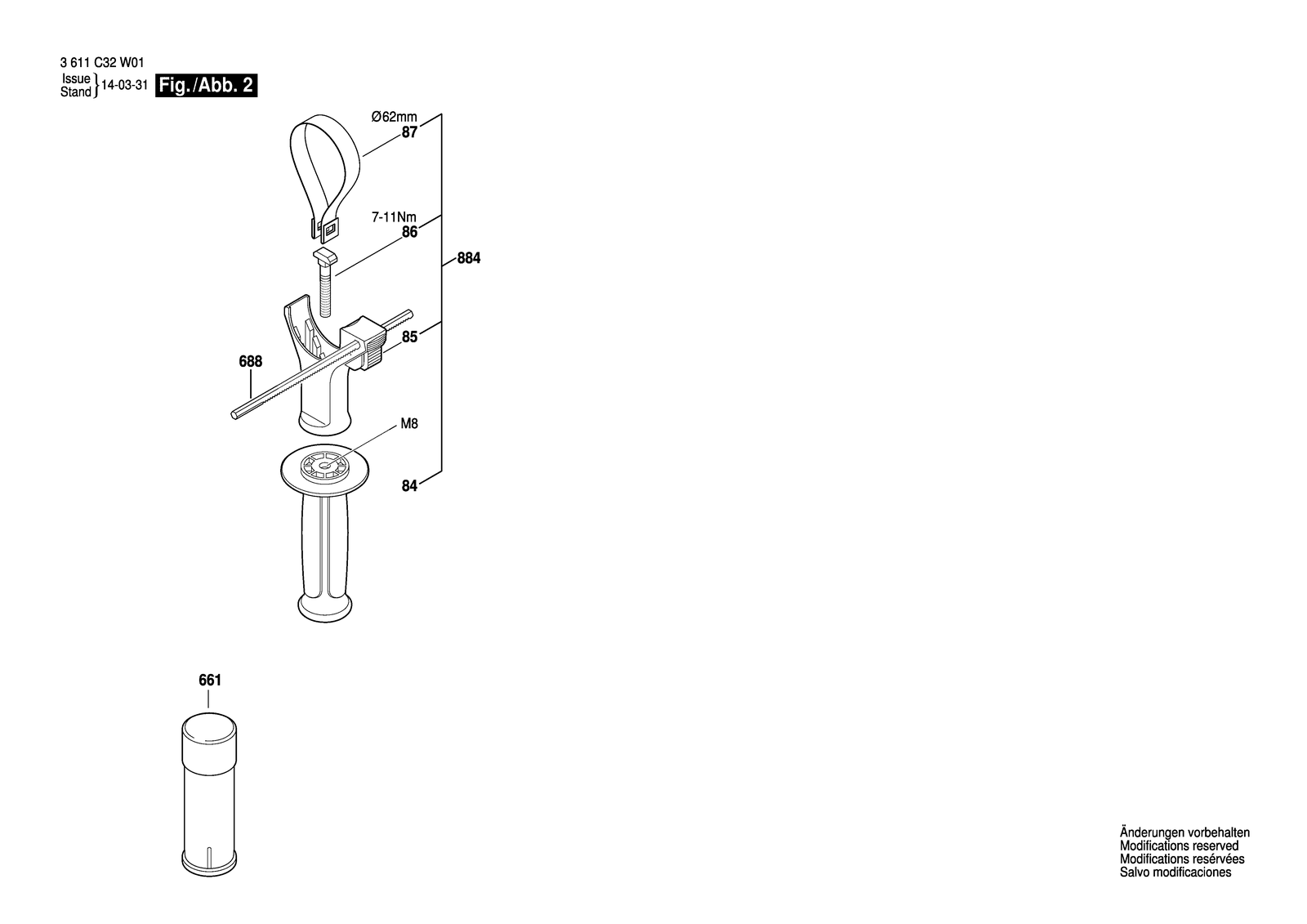

Bosch BMH 32-XE parts diagram, sheet 1Bosch BMH 32-XE parts diagram, sheet 2
No.Part numberPart name
1021610102079Shim Thick 0,8 MM
1021610102080Shim Thick 0,9 MM
1021610102081Shim Thick 1,0 MM
1031610200027Plain bearing
1041610210196O-Ring 46,0X3,5 MM
1101611110W61Manufacturer's nameplate
110161111C01MManufacturer's nameplate
1111600502023Intermediate Ring
1121610190038Sealing washer
1131613435038Lens Head Screw
1181616455007Clutch Sleeve
1191903230013Ball DIN 5401-Ø7MM-III-ST
1211610200028Plain bearing
1262603490023Torx Oval-Head Screw 4X20
1271610422021Bushing
132600905032Ball Bearing 7X19X6
1381611015058Sealing Frame
141610905036Groove ball bearing 10X26X8
1411600A0089ARotary shaft lip seal
1421610205012Felt Washer
1432916540015Retaining ring DIN 7993-28
1441610241001Collar
1451614611023Compression Spring
1461610200029Backup ring
1471610390061Guide Sleeve Black
151616610100Fan
1541614601062Spring retaining ring
1611610290092Damping Ring
1631600A009VCShaft Seal
1651610210199O-Ring 21,0X3,5 MM
1671610283030Rotary shaft lip seal DIN 3760-A ,Ø32X42X7X6 MM
1712916080911Locking washer
172160343508EThread-forming tap. Screw
1741613490014Thread-forming tap. Screw
1762912738178Socket head cap screw
1881610209008Grip-Spring Tensioning E
1891610209009Clamping Piece
1921614611016Compression Spring
1941610099008Screw Plate
1951610099009Clamping Piece
1981612099000Switch Slide
1991610284004Bellows
21619P08136Field
21619P08340Field 230V
2001610284005Bellows
271610591043Air-Deflector Ring Black
3251617000895Tool Holding Fixture
325/2031610508047Protective Cap
341611322004Fixing Plate
361615104058Housing Section Black
4/1781614412055Connecting Cable
4/1791614412056Connecting Cable
4/41617200127Switch
4/41617200128Switch
4/51614460026Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
4/51614460061Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F
4/61600703034Grommet Ø7,3-Ø8,6X66 MM
411613124088Striker Pin
421614336072Brush Holder
431615500400Fan Cover Black
43/41613490007Clamp Screw
441614611025Rocker Foot Black
471616328049Gear Sleeve
481610290085Clutch Sleeve
511616333044Crown Gear
521614601061Spring retaining ring
531610102634Supporting Disc
541610101020Stop Disc
551612099001Rocker Arm Black
601616317076Cylindrical Gear
611616333046Pinion
621610026002Damping rubber
631614611026Compression Spring
641616409024Clutch Ring
651610301007Plain bearing
656/2172603421229Countersunk-Head Screw Lefthand Threads M6X23
661616455006Eccentric
6611615430019Oil Reservoir 1000 Ml
671616232006Leaf Spring
681610913021Needle-Roller Assembly
6881613001008Depth-Gauge SW 6X330 MM
71601302017Fastening Clamp
701612001041Connecting Rod
721616317077Eccentric Cog Wheel
741614336075Support Plate
80/1931612026126Switch-Pawl Red
80/801615133034Handle Black
8011615108150Motor Housing Black
8031614010252Armature With Fan 230V
8031617000659Armature With Fan 100V
808160111A3HDNameplate
811615500402Handle Cover Black
8101614321079Carbon-Brush Set
8182603410001Socket head cap screw M3X6,5-4.8
821610205010Felt Seal
8241613123013Eccentric Shaft
8351615806229Hammer Pipe
841612025083Auxiliary Handle Black
8401617000677Impact Mechanism Housing
8491611329030Control Fork Black
851618040090Support clamp
8561618700093Hammer Piston
8571618710094Striker
861613490002T-Head Bolt M8X40 MM
8611616333048Pinion
871611316019Clamping Band Ø62 MM
8731617000661Housing Cover
8841617000662Auxiliary Handle
8911615806230Hammer Pipe
8971610314006Sealing Sleeve
8991617000897Wear and Tear Part Set
91611110W60Manufacturer's nameplate
9161111C01LManufacturer's nameplate
961614601060Retaining ring
971610314005Sealing Sleeve
981610211019Spacer Sleeve
991610101626Supporting Disc Thick 1,0 MM
