Makita BLS713
Makita BLS713: exploded parts diagram, 2 sheets, 167 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BLS713: 167 positions on 2 sheets

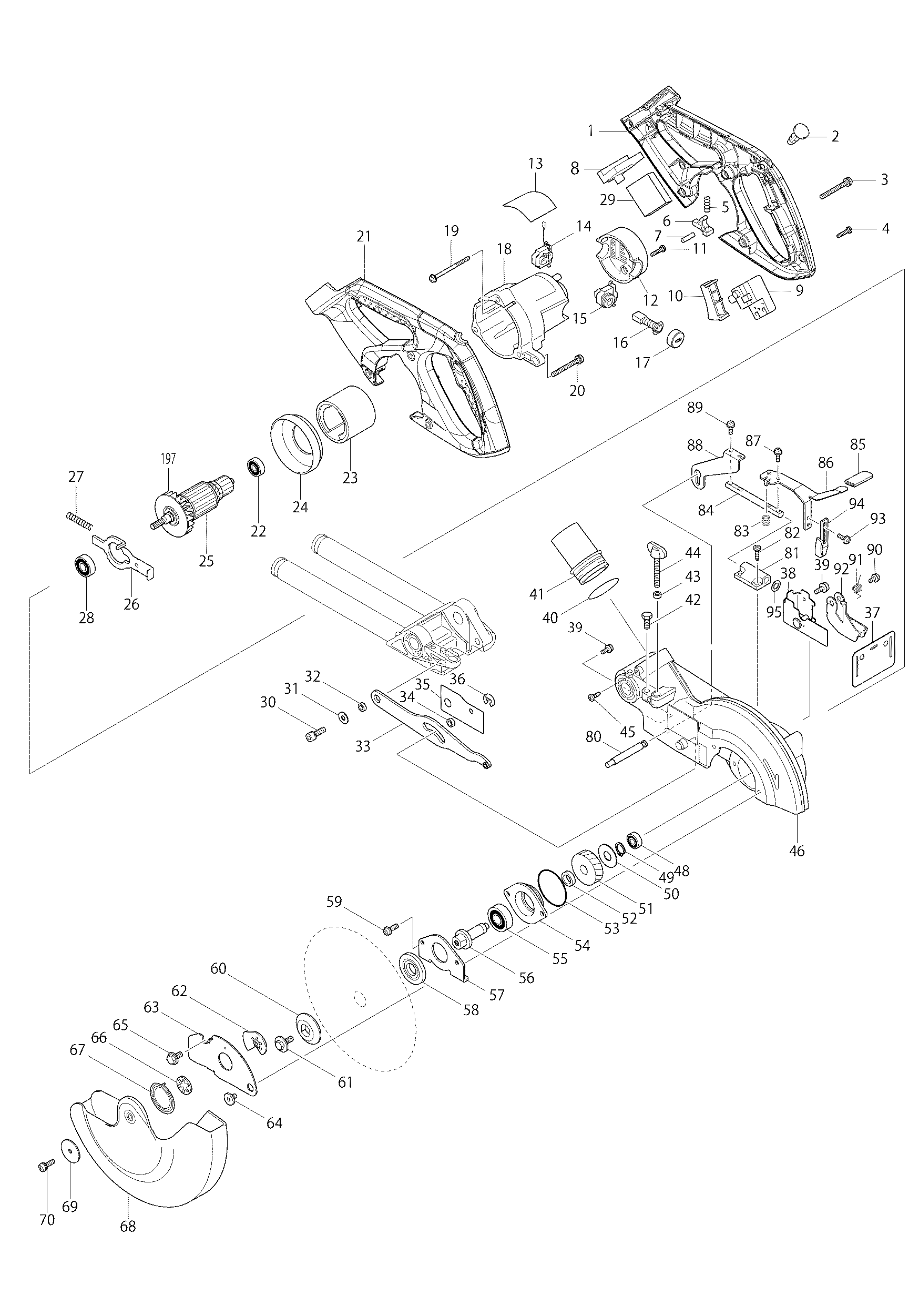

Sheet 1: Makita BLS713 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 188961-5 | Makita 188961-5 HANDLE SET, LS713D |
| 2 | 417113-4 | Makita 417113-4 Switch Button |
| 3 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 6 | 416533-9 | Makita 416533-9 LOCK OFF LEVER, LS0714 |
| 7 | 256123-4 | Makita 256123-4 PIN 5 |
| 8 | 643859-8 | Makita 643859-8 TERMINAL, LS713D |
| 9 | 651956-6 | OTHR MAKITA SWITCH BHS630 BUC250RD BSS610 650631-1 651956-6 651988-3 |
| 10 | 452130-7 | Makita 452130-7 SWITCH LEVER, LS713D |
| 11 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 12 | 416639-3 | Makita 416639-3 REAR COVER |
| 13 | 868774-7 | |
| 14 | 643864-5 | Makita 643864-5 BRUSH HOLDER |
| 15 | 643863-7 | Makita 643863-7 BRUSH HOLDER |
| 16 | 194435-6 | Makita 194435-6 CB-441 Carbon Brushes BHS630 BHR202 BSR730 BJR181 BSS610 |
| 17 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 18 | 416909-0 | Makita 416909-0 MOTOR HOUSING |
| 19 | 266209-6 | Makita 266209-6 TAPPING SCREW 4X60 |
| 20 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 21 | 188961-5 | Makita 188961-5 HANDLE SET, LS713D |
| 22 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 23 | 632828-4 | Makita 632828-4 YOKE UNIT, HR261D |
| 24 | 416907-4 | Makita 416907-4 BAFFLE PLATE |
| 25 | 519269-0 | Makita 519269-0 ARMATURE ASSY |
| 26 | 344681-3 | Makita 344681-3 SHAFT LOCK, 5621D |
| 27 | 233092-6 | Makita 233092-6 COMPRESSION SPRING 5, 5806B |
| 28 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 29 | 631999-4 | Makita 631999-4 CONTROLLER BLS713 |
| 30 | 922331-6 | Makita 922331-6 HEX SOCKET HEAD BOLT, LS1016 |
| 31 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 32 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 33 | 154643-1 | Makita 154643-1 Link Plate CPL Replacement Part |
| 34 | 257163-5 | Makita 257163-5 RING 6, LS0714 |
| 35 | 346330-8 | Makita 346330-8 LINK COVER, LS713D |
| 36 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 37 | 421626-9 | Makita 421626-9 GUARD, LS0714 |
| 38 | 165414-1 | Makita 165414-1 GUARD PLATE COMPLETE, LS0714 |
| 39 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 40 | 213460-9 | Makita 213460-9 O RING 35, LF1000 |
| 41 | 419277-0 | Makita 419277-0 Plastic Dust Nozzle Piece LS1030 LF1000 LS1216 Bag Extractor |
| 42 | 265381-1 | Makita 265381-1 HEX BOLT M6*16, LC1230 |
| 43 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 44 | 265717-4 | Makita 265717-4 THUMB SCREW M6*43, LS0714 |
| 45 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 46 | 140607-1 | Makita 140607-1 BLADE CASE CPL. |
| 48 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 49 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 50 | 253813-0 | Makita 253813-0 FLAT WASHER 12 |
| 51 | 226512-7 | Makita 226512-7 HELICAL GEAR 60 |
| 52 | 257011-8 | Makita 257011-8 RING 12 |
| 53 | 213623-7 | Makita 213623-7 O-RING 46, LF1000 |
| 54 | 317193-9 | Makita 317193-9 BEARING BOX |
| 55 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 56 | 323798-5 | Makita 323798-5 SPINDLE, LS0711 |
| 57 | 285736-4 | Makita 285736-4 BEARING RETAINER 58 |
| 58 | 224397-5 | Makita 224397-5 INNER FLANGE 40, 5007NB |
| 59 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 60 | 224282-2 | Makita 224282-2 OUTER FLANGE 40, LS0714 |
| 61 | 265461-3 | Makita 265461-3 Hex. Bolt M6X25 for LS0714 |
| 62 | 345585-2 | Makita 345585-2 CENTER PLATE, LS0714 |
| 63 | 346232-8 | Makita 346232-8 CENTER COVER |
| 64 | 265985-9 | Makita 265985-9 HEX.SOCKET HEAD BOLTM6, LS1040 |
| 65 | 265473-6 | Makita 265473-6 HEX.BOLT M6X14, LS0714 |
| 66 | 345589-4 | Makita 345589-4 CENTER WASHER, LS0714 |
| 67 | 231934-8 | Makita 231934-8 SPIRAL SPRING 26, LS0714 |
| 68 | 452129-2 | Makita 452129-2 Safety Cover |
| 69 | 267136-0 | Makita 267136-0 FLAT WASHER 5, LS1040 |
| 70 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 80 | 324455-8 | Makita 324455-8 LOCK PIN, LS0714 |
| 81 | 452134-9 | Makita 452134-9 ROD HOLDER |
| 82 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 83 | 231316-4 | Makita 231316-4 COMPRESSION SPRING 7 |
| 84 | 325980-2 | Makita 325980-2 ROD 8 |
| 85 | 421589-9 | Makita 421589-9 CAP, LS1040 |
| 86 | 346320-1 | Makita 346320-1 LOCK LEVER |
| 87 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 88 | 346322-7 | Makita 346322-7 LOCK PLATE |
| 89 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 90 | 911114-9 | Makita 911114-9 PAN HEAD SCREW M4X10 |
| 91 | 231690-0 | Makita 231690-0 TORSION SRRING 8, LS0714 |
| 92 | 345649-2 | Makita 345649-2 GUARD, LS0714 |
| 93 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 94 | 346321-9 | Makita 346321-9 SUB LEVER |
| 95 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
Sheet 2: Makita BLS713 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 113 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 114 | 318655-0 | Makita 318655-0 GUIDE FENCE, LS713D |
| 115 | 265593-6 | Makita 265593-6 HEX.BOLT M6X25 |
| 116 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 117 | 416535-5 | Makita 416535-5 SLEEVE 17, LS0714 |
| 118 | 231638-2 | Makita 231638-2 TORSION SPRING 28, LS0714 |
| 119 | 416535-5 | Makita 416535-5 SLEEVE 17, LS0714 |
| 120 | 265790-4 | Makita 265790-4 THUNB SCERW M6*28, LS0612 |
| 121 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 122 | 257214-4 | Makita 257214-4 RING 26, LS0713 |
| 123 | 318651-8 | Makita 318651-8 PIPE HOLDER, LS713D |
| 124 | 266208-8 | Makita 266208-8 M6X8 Hex Socket Head Set Screw M6*8 for 5902B |
| 127 | 416536-3 | Makita 416536-3 WRENCH HOLDER, LS0714 |
| 128 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 129 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 130 | 416006-2 | Makita 416006-2 Lever 100 LS1013 LS1040 LF1000 |
| 131 | 913106-4 | Makita 913106-4 SET SCREW M4*8, LS0713 |
| 132 | 252144-4 | Makita 252144-4 HEX NUT, LS1013 |
| 133 | 231266-3 | Makita 231266-3 COMPRESSION SPRING 5, LS0713F |
| 134 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 135 | 286236-7 | Makita 286236-7 CAP 28, MT920 |
| 136 | 140609-7 | Makita 140609-7 ARM COMPLETE, LS713D |
| 137 | 324295-4 | Makita 324295-4 RELEASE PIN, LS0714 |
| 138 | 265381-1 | Makita 265381-1 HEX BOLT M6*16, LC1230 |
| 139 | 345299-3 | Makita 345299-3 STOPPER PLATE, LS0713 |
| 140 | 253726-5 | Makita 253726-5 FLAT WASHER 6, LS0713 |
| 141 | 231663-3 | Makita 231663-3 TORSION SPRING 8, LS0713F |
| 142 | 265113-6 | Makita 265113-6 PAN HEAD SCREW M5, LS0713 |
| 143 | 343678-9 | Makita 343678-9 INDICATION PLATE, LS1212 |
| 144 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 145 | 140608-9 | Makita 140608-9 FRONT ARM COMPLETE, LS713D |
| 146 | 344643-1 | Makita 344643-1 STOPPER ARM, LS0711 |
| 147 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 148 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 149 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 150 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 151 | 251961-9 | Makita 251961-9 HEX S.H.SEI SCREW M6X10, LS1040 |
| 152 | 271601-3 | Makita 271601-3 Knob 20 for LS0713 |
| 153 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 154 | 324183-5 | Makita 324183-5 Stopper Pin for LS1016L |
| 155 | 331350-5 | Makita 331350-5 PIPE 16-90, LS0714 |
| 156 | 140610-2 | Makita 140610-2 ARM HOLDER COMPLETE, LS713D |
| 157 | 256123-4 | Makita 256123-4 PIN 5 |
| 158 | 266320-4 | Makita 266320-4 SCREW M10, LS0714 |
| 159 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 160 | 216413-7 | Makita 216413-7 THRUST NEEDLE CAGE 1024, LS0713 |
| 161 | 253024-7 | Makita 253024-7 FLAT WASHER 10, LS1040 |
| 162 | 252130-5 | Makita 252130-5 HEX LOCK NUT M10-17, 2414NB |
| 163 | 257214-4 | Makita 257214-4 RING 26, LS0713 |
| 164 | 265790-4 | Makita 265790-4 THUNB SCERW M6*28, LS0612 |
| 165 | 252105-4 | Makita 252105-4 HEX LOCK NUT M8*13, LS1040 |
| 166 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 167 | 416355-7 | Makita 416355-7 POSITION PLATE, LS0840F |
| 168 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 169 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 170 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 171 | 419103-3 | Makita 419103-3 Kerf Board for LS0716F |
| 172 | 419103-3 | Makita 419103-3 Kerf Board for LS0716F |
| 173 | 140614-4 | Makita 140614-4 TURN BASE |
| 174 | 922111-0 | Makita 922111-0 H.S.HEAD BOLT M4*10 WITH W, EBH252L |
| 175 | 153580-6 | Makita 153580-6 SQUARE ROD COMPLETE, LS713FL |
| 176 | 925251-3 | Makita 925251-3 HEX BOLT M5*30, LS0713 |
| 177 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 178 | 344601-7 | Makita 344601-7 LOCK PLATE, LS1045 |
| 179 | 317616-7 | Makita 317616-7 PIN HOLDER, LS0714 |
| 180 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 181 | 324288-1 | Makita 324288-1 LOCK PIN, LS0713 |
| 182 | 231325-3 | Makita 231325-3 COMPRESSION SPRING 6, LS0714/1016 |
| 183 | 324289-9 | Makita 324289-9 ROD 6, LS0713 |
| 184 | 416450-3 | Makita 416450-3 LOCK LEVER, LS1045 |
| 185 | 345272-3 | Makita 345272-3 LOCK LEVER PLATE, LS0714 |
| 186 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 187 | 231418-6 | Makita 231418-6 COMPRESSION SPRING 9, LS0714 |
| 188 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 189 | 266432-3 | Makita 266432-3 ADJUST BOLT M8*27, LS0611 |
| 190 | 273658-0 | Makita 273658-0 GRIP, LS713D |
| 191 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |
| 192 | 921472-5 | Makita 921472-5 HEX BOLT M8*50, LS0713 |
| 193 | 251887-5 | Makita 251887-5 Thumb Screw M6x10 for LS1013 LS1016 |
| 194 | 140612-8 | Makita 140612-8 BASE COMPLETE |
| 195 | 344646-5 | Makita 344646-5 SLIDE PLATE, LS0813F |
| 196 | 344646-5 | Makita 344646-5 SLIDE PLATE, LS0813F |
