Makita BLM430
Makita BLM430: exploded parts diagram, 4 sheets, 113 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BLM430: 113 positions on 4 sheets
Sheet 1: Makita BLM430 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 273675-0 | Makita 273675-0 GRIP A |
| 2 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 3 | 453250-0 | Makita 453250-0 LOCK LEVER |
| 4 | 453251-8 | Makita 453251-8 LOCK LEVER SUPPORT |
| 5 | 233173-6 | Makita 233173-6 COMPRESSION SPRING 4, UC3020A |
| 6 | 141300-0 | Makita 141300-0 REAR FLAP CPL. |
| 7 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 8 | 256871-5 | Makita 256871-5 ROD 6, LM430D |
| 9 | 233597-6 | Makita 233597-6 TORSION SPRING 8 |
| 10 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 11 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 12 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 13 | 453235-6 | Makita 453235-6 COWLING |
| 14 | 896608-4 | |
| 15 | 141305-0 | Makita 141305-0 BATTERY COVER COMPLETE |
| 16 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 17 | 187254-7 | Makita 187254-7 TERMINAL HOUSING R/L |
| 18 | 643849-1 | Makita 643849-1 TERMINAL |
| 19 | 187254-7 | Makita 187254-7 TERMINAL HOUSING R/L |
| 20 | 890383-4 | Makita 890383-4 MAKITA LOGO LABEL |
| 21 | 453258-4 | Makita 453258-4 COWLING COVER |
| 22 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 23 | 266774-5 | Makita 266774-5 + PAN HEAD SCREW M6X30 WITH WR |
| 24 | 629933-6 | Makita 629933-6 DC MOTOR |
| 25 | 620084-8 | Makita 620084-8 CONTROLLER |
| 26 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 27 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 28 | 643890-4 | Makita 643890-4 KEY, LM430D |
| 29 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 30 | 638946-6 | Makita 638946-6 LEAD UNIT, LM430D |
| 31 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 32 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 33 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 34 | 453234-8 | Makita 453234-8 DECK |
| 35 | 453239-8 | Makita 453239-8 UNDER COVER |
| 36 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 37 | 224444-2 | Makita 224444-2 INNER FLANGE 40, LM430D |
| 38 | 196060-9 | |
| 39 | 224445-0 | Makita 224445-0 OUTER FLANGE 40, LM430D |
| 40 | 266731-3 | Makita 266731-3 HEX. BOLT M10X25 |
| 41 | 921352-5 | Makita 921352-5 HEX.BOLT M6X30 |
| 42 | 257670-8 | Makita 257670-8 SLEEVE 6 |
| 43 | 453255-0 | Makita 453255-0 ADJUST PLATE |
| 44 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 45 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 46 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 47 | 267102-7 | Makita 267102-7 FLAT WASHER 4 |
| 48 | 231297-2 | Makita 231297-2 COMPRESSION SPRING 9, 5007MG |
| 49 | 253808-3 | Makita 253808-3 FLAT WASHER 9 |
| 50 | 453252-6 | Makita 453252-6 CHANGE LEVER |
| 51 | 453253-4 | Makita 453253-4 CHANGE LEVER COVER |
| 111 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |

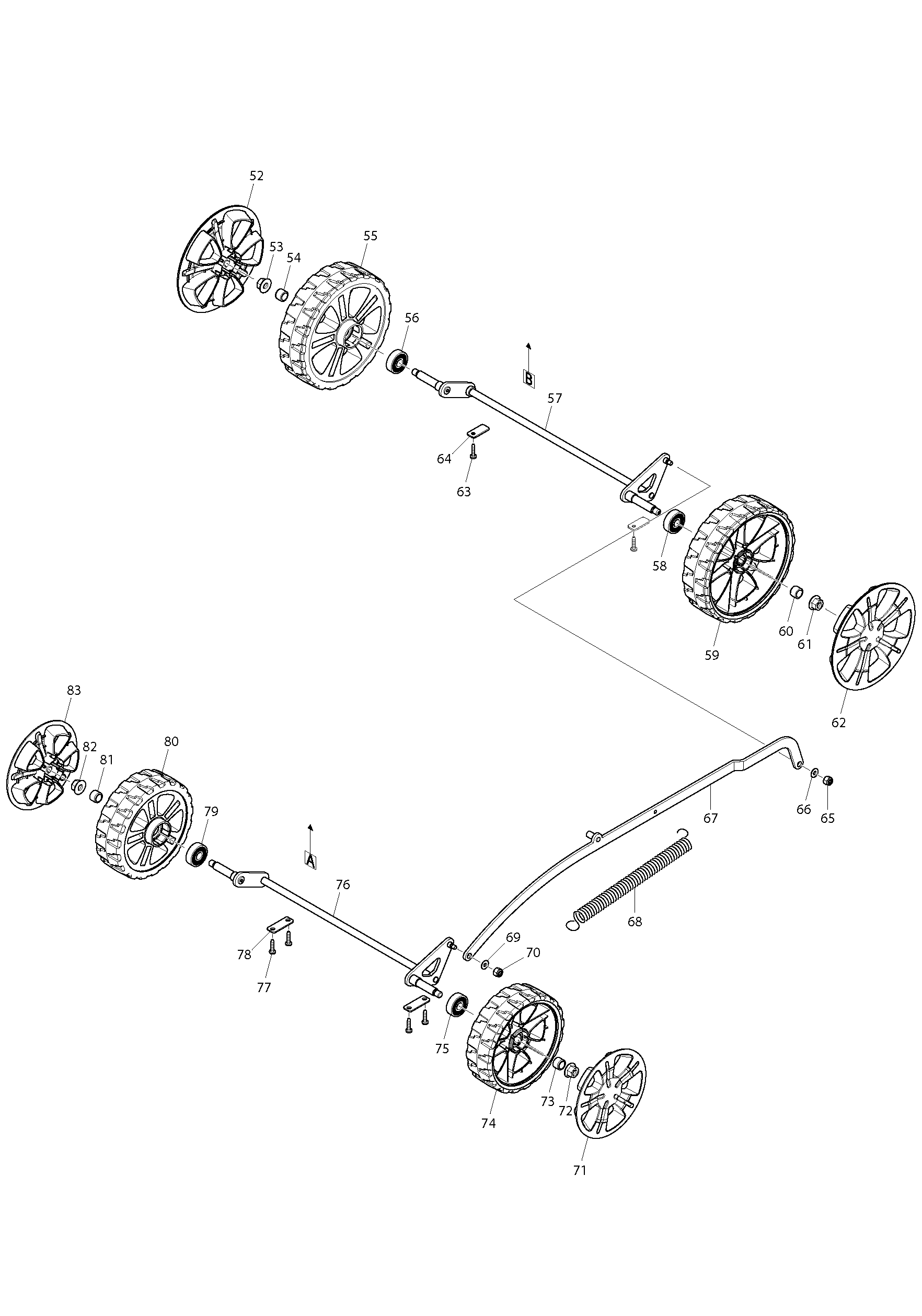

Sheet 2: Makita BLM430 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 52 | 453241-1 | Makita 453241-1 REAR WHEEL CAP |
| 53 | 252145-2 | Makita 252145-2 COLLARED HEX NUT M8, DCS230T |
| 54 | 214067-4 | Makita 214067-4 PLANE BEARING 10 |
| 55 | 453243-7 | Makita 453243-7 REAR WHEEL |
| 56 | 210070-3 | Makita 210070-3 BALL BEARING 6200ZZ, MT240 |
| 57 | 165669-8 | Makita 165669-8 REAR SHAFT, LM430D |
| 58 | 210070-3 | Makita 210070-3 BALL BEARING 6200ZZ, MT240 |
| 59 | 453243-7 | Makita 453243-7 REAR WHEEL |
| 60 | 214067-4 | Makita 214067-4 PLANE BEARING 10 |
| 61 | 252145-2 | Makita 252145-2 COLLARED HEX NUT M8, DCS230T |
| 62 | 453241-1 | Makita 453241-1 REAR WHEEL CAP |
| 63 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 64 | 346545-7 | Makita 346545-7 PLATE |
| 65 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 66 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 67 | 346543-1 | Makita 346543-1 CONNECTING ROD |
| 68 | 231875-8 | Makita 231875-8 TENSION SPRING 16 |
| 69 | 941101-4 | Makita 941101-4 FLAT WASHER 5, 3703 |
| 70 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 71 | 453240-3 | Makita 453240-3 FRONT WHEEL CAP |
| 72 | 252145-2 | Makita 252145-2 COLLARED HEX NUT M8, DCS230T |
| 73 | 214067-4 | Makita 214067-4 PLANE BEARING 10 |
| 74 | 453242-9 | Makita 453242-9 FRONT WHEEL |
| 75 | 210070-3 | Makita 210070-3 BALL BEARING 6200ZZ, MT240 |
| 76 | 165668-0 | Makita 165668-0 Front Shaft for LM430D |
| 77 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 78 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 79 | 210070-3 | Makita 210070-3 BALL BEARING 6200ZZ, MT240 |
| 80 | 453242-9 | Makita 453242-9 FRONT WHEEL |
| 81 | 214067-4 | Makita 214067-4 PLANE BEARING 10 |
| 82 | 252145-2 | Makita 252145-2 COLLARED HEX NUT M8, DCS230T |
| 83 | 453240-3 | Makita 453240-3 FRONT WHEEL CAP |
Sheet 3: Makita BLM430 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 84 | 331975-5 | Makita 331975-5 SWITCH LEVER, LM430D |
| 85 | 453246-1 | Makita 453246-1 SWITCH LEVER CASE |
| 86 | 453247-9 | Makita 453247-9 SWITCH LEVER CASE COVER |
| 87 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 88 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 89 | 141298-1 | Makita 141298-1 SWITCH BOX COVER CPL. |
| 90 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 91 | 453248-7 | Makita 453248-7 LEUER |
| 92 | 231876-6 | Makita 231876-6 TENSION SPRING 9 |
| 93 | 453249-5 | Makita 453249-5 SWITCH BUTTON, LM460D |
| 94 | 233068-3 | Makita 233068-3 COMPRESSION SPRING 6 |
| 95 | 650681-6 | Makita 650681-6 SWITCH, LM430D |
| 96 | 453244-5 | Makita 453244-5 SWITCH BOX |
| 97 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 98 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 99 | 141299-9 | Makita 141299-9 UPPER PIPE COMPLETE, LM430 |
| 100 | 664780-8 | Makita 664780-8 POWER SUPPLY CORD #18-2-1.2 |
| 101 | 266730-5 | Makita 266730-5 CUP HEAD SQUARE NECK BOLT |
| 102 | 264070-5 | Makita 264070-5 THUMB NUT M6 |
| 103 | 264070-5 | Makita 264070-5 THUMB NUT M6 |
| 104 | 266730-5 | Makita 266730-5 CUP HEAD SQUARE NECK BOLT |
| 105 | 331973-9 | Makita 331973-9 LOWER PIPE, LM430D |
| 106 | 453385-7 | Makita 453385-7 HOLDER 9-19, LM430D |
| 107 | 266729-0 | Makita 266729-0 THUMB SCREW M8X38 |
| 108 | 266729-0 | Makita 266729-0 THUMB SCREW M8X38 |
Sheet 4: Makita BLM430 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 110 | 141546-8 | Makita 141546-8 REAR BAG COMPLETE, LM430 |
| 112 | 326118-2 | Makita 326118-2 REAR BAG ROD |
| 113 | 267438-4 | Makita 267438-4 FLAT WASHER 5 |
| 114 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
