Bosch BLM 80

Bosch BLM 80 distance measuring unit: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BLM 80: 12 positions on 1 sheet

Bosch BLM 80 parts list (1 sheet)

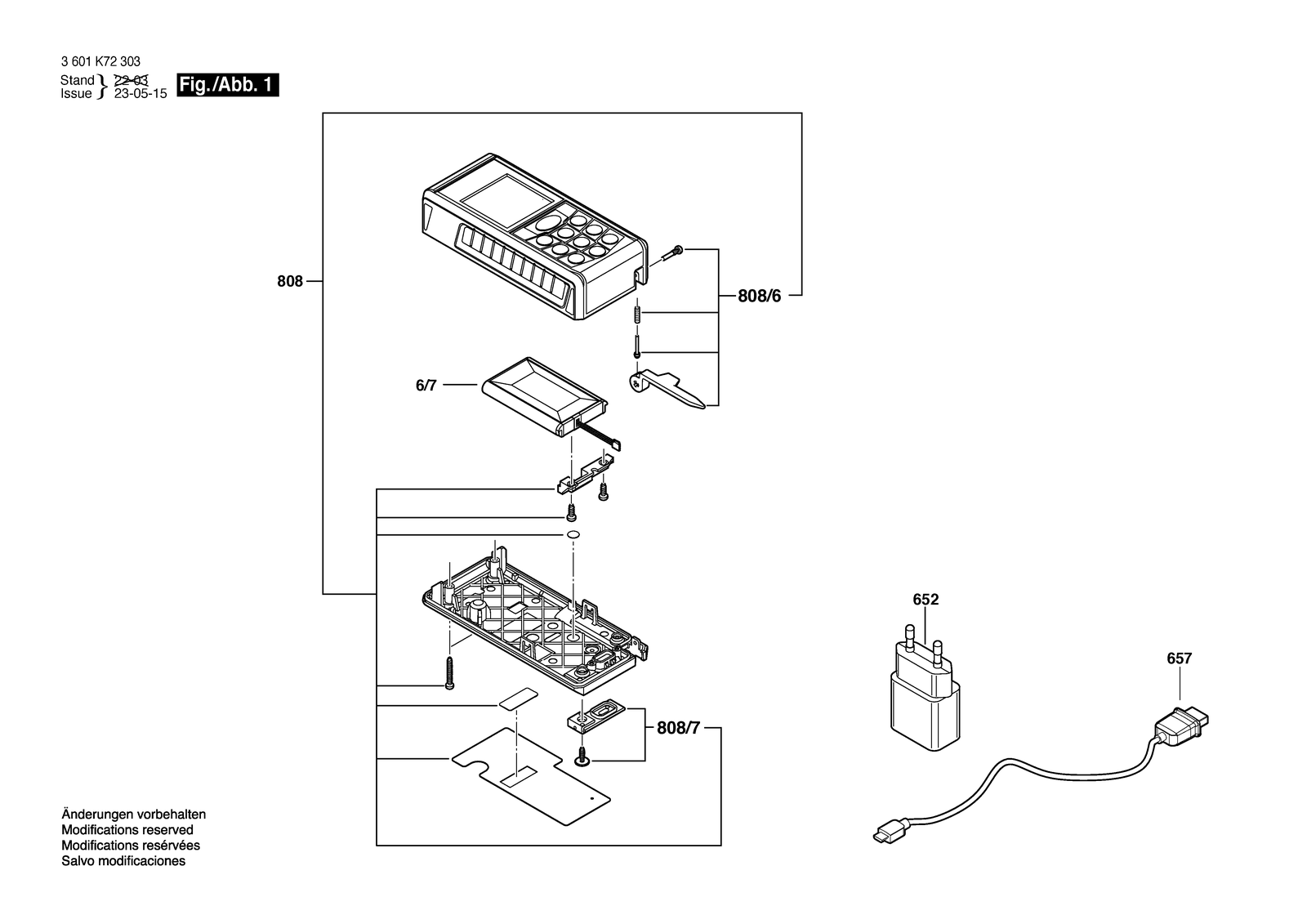

Bosch BLM 80 parts diagram, sheet 1
No.Part numberPart name
6/72609120417Accumulator
6/72609120417Accumulator
6521600A01U46Battery Charger
6521600A01U47Battery Charger
6571607000DN8USB cable USB Type A / Micro USB
6571607000DN8USB cable USB Type A / Micro USB
8082609199641Battery Pack
8082609199642Battery Pack
808/62609169030Fastening parts kit
808/62609169030Fastening parts kit
808/72609169032Cover
808/72609169032Cover
Selected parts0
