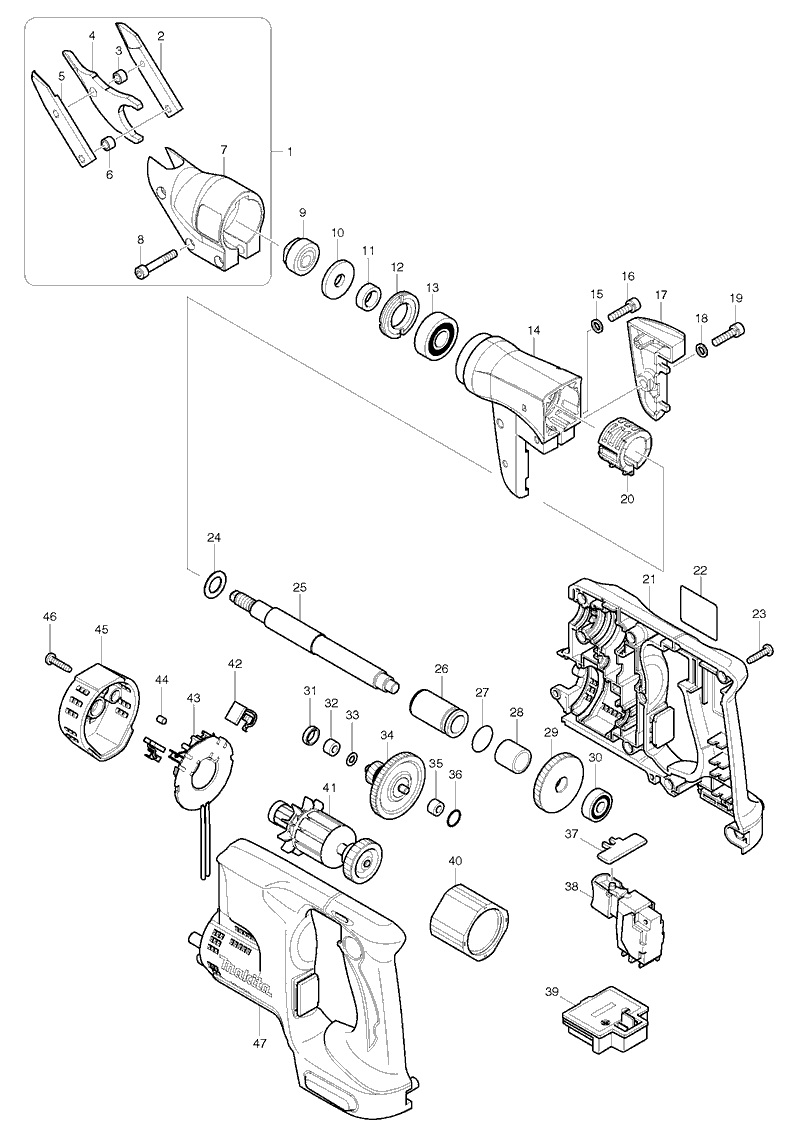

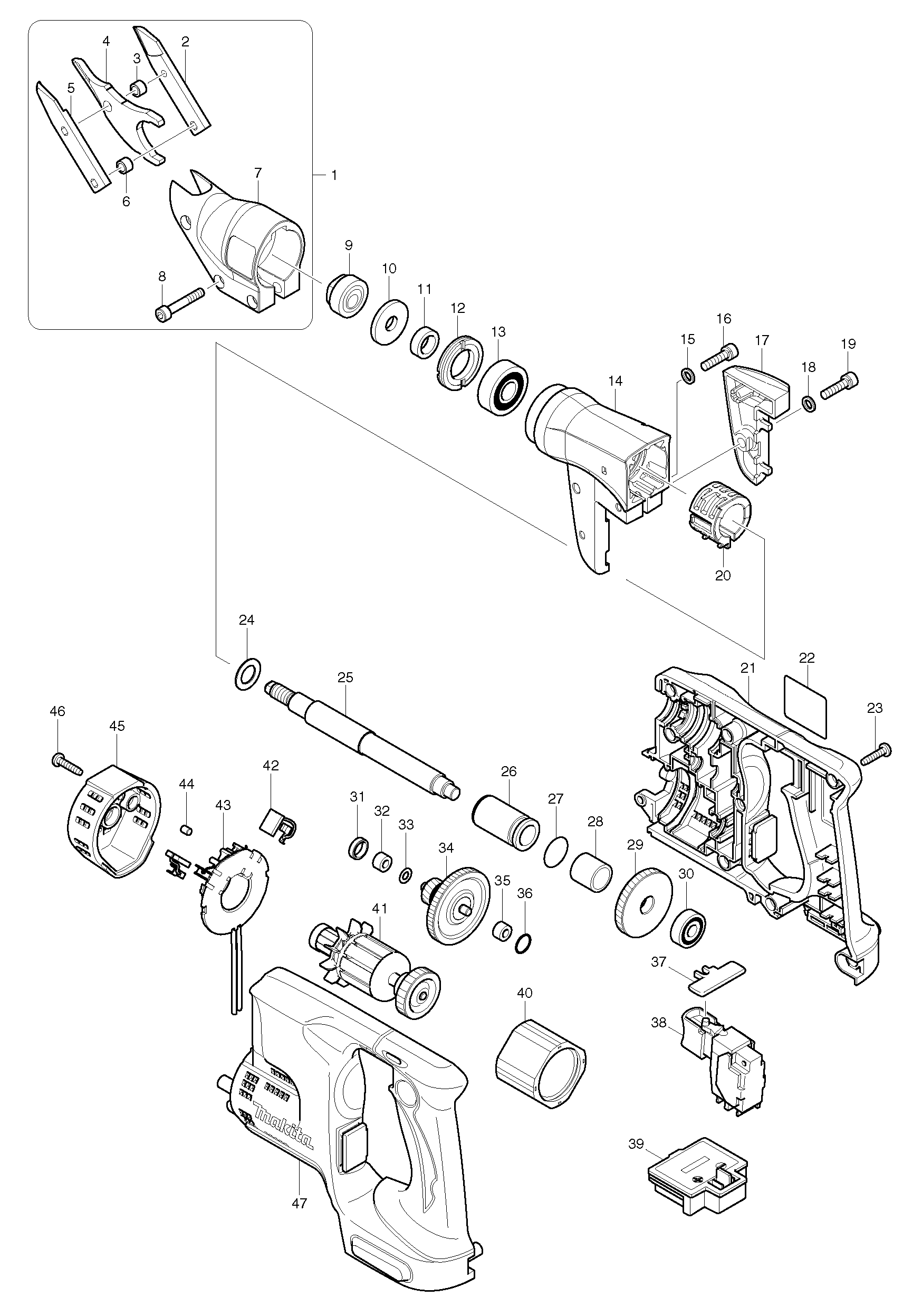

Sheet 1: Makita BJS130 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 792742-7 | Makita 792742-7 Right Side Blade for JS1300 |
| 3 | 257705-5 | Makita 257705-5 SLEEVE 5 |
| 4 | 792744-3 | Makita 792744-3 Center Blade for JS1300 |
| 5 | 792743-5 | Makita 792743-5 Left Side Blade for JS1300 |
| 6 | 257705-5 | Makita 257705-5 SLEEVE 5 |
| 7 | 152663-9 | Makita 152663-9 CUTTING HEAD COMPLETE |
| 8 | 266268-0 | Makita 266268-0 HEX. SOCKET HEAD BOLT |
| 9 | 125111-1 | Makita 125111-1 BEARING ASS Y |
| 10 | 267223-5 | Makita 267223-5 FLAT WASHER 10 |
| 11 | 257173-2 | Makita 257173-2 RING 12, 5806B |
| 12 | 285802-7 | Makita 285802-7 BEARING RETAINER 19-33 |
| 13 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 14 | 318325-1 | Makita 318325-1 BARREL, BJS130 |
| 15 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 16 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 17 | 450757-7 | Makita 450757-7 HOLDER, BJS130 |
| 18 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 19 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 20 | 450755-1 | Makita 450755-1 CLAMPER, BJS130 |
| 21 | 188540-9 | Makita 188540-9 HOUSING SET, BJS130 |
| 22 | 865590-8 | Makita 865590-8 NAME PLATEBJS130 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 25 | 324937-0 | Makita 324937-0 SPINDLE, BJS130 |
| 26 | 214174-3 | Makita 214174-3 PLANE BEARING 14, BJS130 |
| 27 | 213262-3 | Makita 213262-3 O RING 18 |
| 28 | 257773-8 | Makita 257773-8 SLEEVE 14, BJS130 |
| 29 | 226686-4 | Makita 226686-4 HELICAL GEAR 39, BJS130 |
| 30 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 31 | 165115-1 | Makita 165115-1 RUBBER SLEEVE 10 |
| 32 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 33 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 34 | 226154-7 | Makita 226154-7 GEAR COMPLETE 11-44, BJS130 |
| 35 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 36 | 213055-8 | Makita 213055-8 O RING 10 |
| 37 | 450756-9 | Makita 450756-9 LOCK OFF LEVER, BJS130 |
| 38 | 650575-5 | Makita 650575-5 Switch TG513SBA for BFR750 BFR440D FR440D BFR440 |
| 39 | 643812-4 | Makita 643812-4 TERMINAL |
| 40 | 638426-2 | Makita 638426-2 Yoke Unit for BJS130 BFS450 BFR750 LXSF01 |
| 41 | 619237-4 | Makita 619237-4 Armature 18V BJS130 |
| 42 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 43 | 638433-5 | Makita 638433-5 BRUSH HOLDER COMPLETE, FR440D |
| 44 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 45 | 419307-7 | Makita 419307-7 FRONT COVER, BFR440 |
| 46 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 47 | 188540-9 | Makita 188540-9 HOUSING SET, BJS130 |
