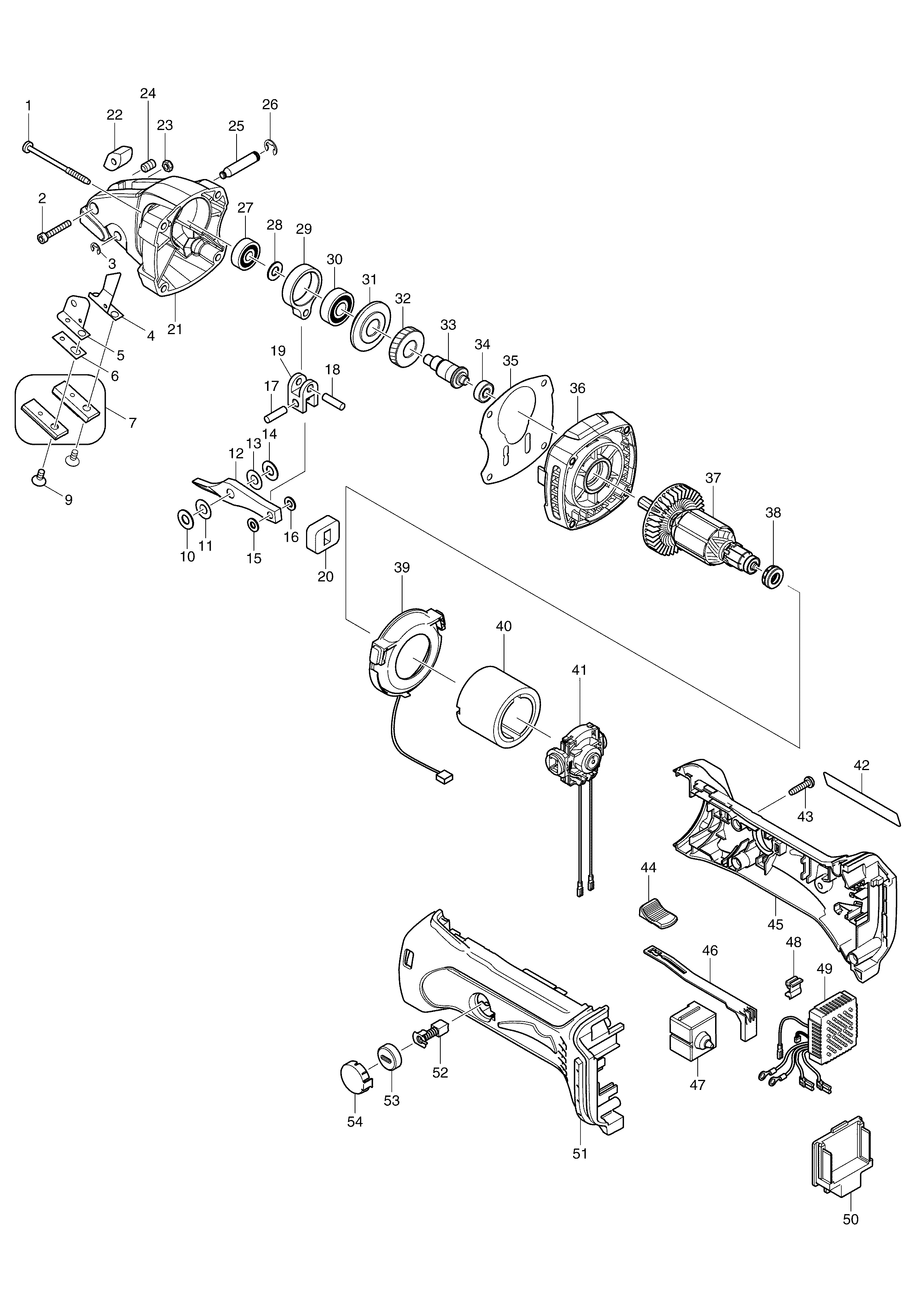

Sheet 1: Makita BJS101 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 2 | 922147-9 | Makita 922147-9 HEX. SOCKET HEAD BOLT M4X |
| 3 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 4 | 346131-4 | Makita 346131-4 SLIP PLATE RBJS160 |
| 5 | 343480-0 | Makita 343480-0 SLIP PLATE L |
| 6 | 343481-8 | Makita 343481-8 SPACER |
| 7 | 792536-0 | Makita 792536-0 Side Blade Set for JS1670 |
| 9 | 251951-2 | Makita 251951-2 HEX. SOCKET HEAD BOLT M5X |
| 10 | 261065-9 | Makita 261065-9 TEFLON WASHER 7 |
| 11 | 253338-4 | Makita 253338-4 THIN WASHER 7 |
| 12 | 792537-8 | POKA NET Makita 792537-8 Center Blade for JS1670 |
| 13 | 253338-4 | Makita 253338-4 THIN WASHER 7 |
| 14 | 261065-9 | Makita 261065-9 TEFLON WASHER 7 |
| 15 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 16 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 17 | 256155-1 | Makita 256155-1 PIN 5 |
| 18 | 256155-1 | Makita 256155-1 PIN 5 |
| 19 | 331329-6 | Makita 331329-6 LINK |
| 20 | 423118-4 | Makita 423118-4 DUST COVER |
| 21 | 140130-6 | Makita 140130-6 CRANK HOUSING COMPLEBJS160 |
| 22 | 325727-4 | Makita 325727-4 BLOCKBJS160 |
| 23 | 252083-8 | Makita 252083-8 HEX. LOCK NUT M4-7 |
| 24 | 266085-8 | Makita 266085-8 HEX SOCKET HEAD SET SCREW M6, LF1000 |
| 25 | 256733-7 | Makita 256733-7 PIN 7 |
| 26 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 27 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 28 | 253133-2 | Makita 253133-2 FLAT WASHER 7 |
| 29 | 331273-7 | Makita 331273-7 ROD |
| 30 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 31 | 325716-9 | Makita 325716-9 SEALING SCREWBJS160 |
| 32 | 227716-4 | Makita 227716-4 HELICAL GEAR 34BJS160 |
| 33 | 325715-1 | Makita 325715-1 CRANK SHAFTBJS160 |
| 34 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 35 | 442150-9 | Makita 442150-9 GASKETBJS160 |
| 36 | 140131-4 | Makita 140131-4 GEAR HOUSING COMPLETBJS160 |
| 37 | 619249-7 | Makita 619249-7 ARMATUREBJS161 |
| 38 | 421977-0 | Makita 421977-0 Rubber Ring 13 for CS540D |
| 39 | 631714-6 | Makita 631714-6 LED CIRCUIT, GA400D |
| 40 | 638376-1 | Makita 638376-1 YOKE UNIT, 6319D |
| 41 | 638448-2 | Makita 638448-2 End Bell Complete GA452D |
| 42 | 867849-9 | |
| 43 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 44 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 45 | 188736-2 | Makita 188736-2 HOUSING SETBJS161 |
| 46 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 47 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 48 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
| 49 | 631713-8 | OLDN Makita 631713-8 CONTROLLER, GA400D |
| 50 | 643812-4 | Makita 643812-4 TERMINAL |
| 51 | 188736-2 | Makita 188736-2 HOUSING SETBJS161 |
| 52 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 53 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 54 | 419518-4 | Makita 419518-4 Holder Cap Cover for BPJ140 BPJ180 GA452D |
