Bosch BJS TH 160

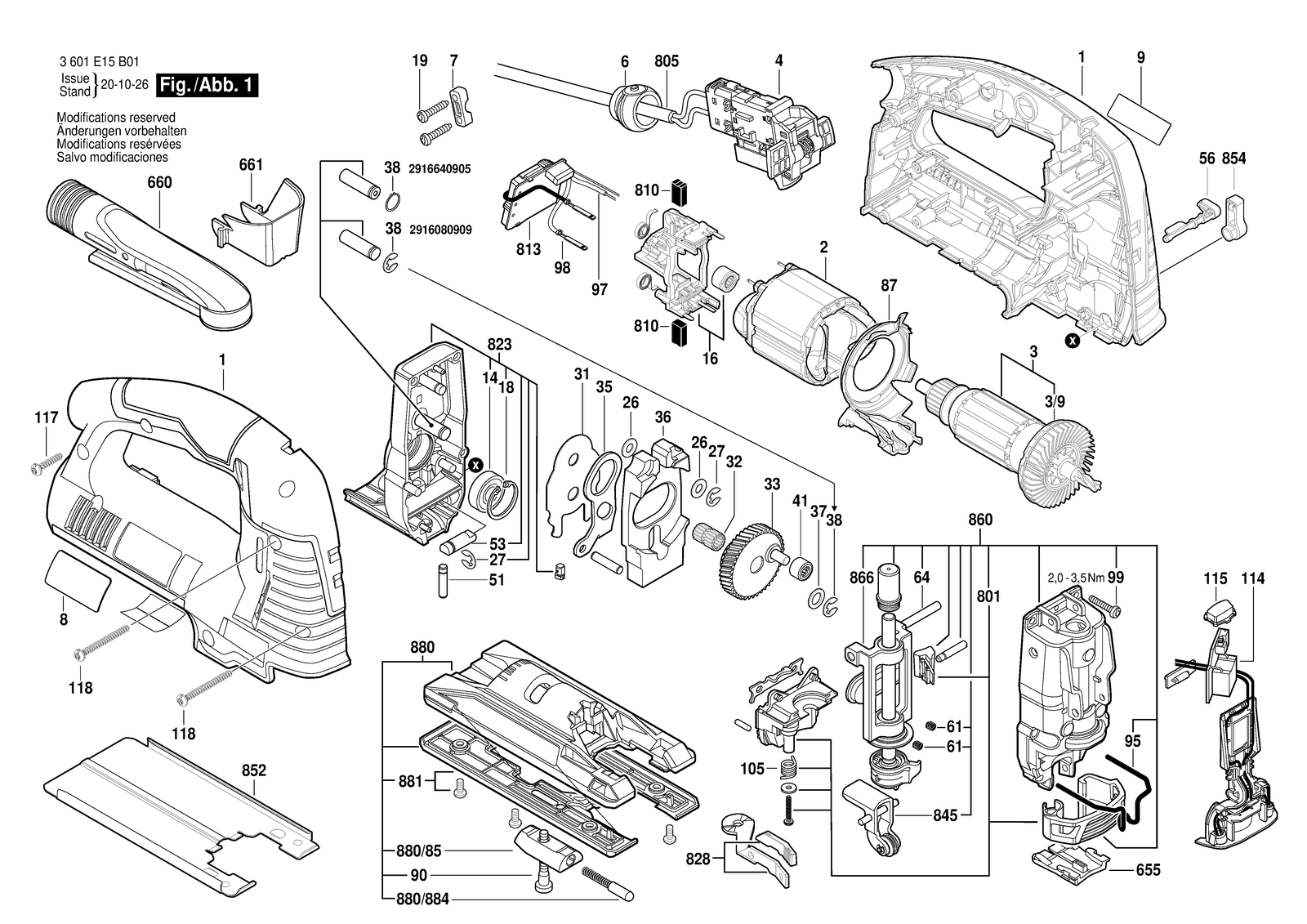

Bosch BJS TH 160 pendulum jigsaw: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BJS TH 160: 58 positions on 1 sheet
Bosch BJS TH 160 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105211 | Housing Section |
| 105 | 2604690060 | Torsion Spring |
| 114 | 1607233384 | EL luma module 230V |
| 115 | 2600030032 | Headlamp Switch |
| 117 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 118 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 14 | 2600905112 | Groove ball bearing 9X24X7 |
| 16 | 2605807137 | Brush Plate |
| 18 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220740 | Field 230-240V |
| 26 | 2600100040 | Shim |
| 27 | 2916080908 | Locking washer 5 DIN 6799 |
| 3 | 2604011420 | Armature 230-240V |
| 3/9 | 2606610089 | Fan |
| 31 | 2600101124 | Shim |
| 32 | 2600913040 | Needle-Roller Assembly |
| 33 | 2606320107 | Eccentric Cog Wheel |
| 35 | 2601923015 | Fork Lever |
| 36 | 2601098120 | Counterweight |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2916080909 | Locking washer DIN 6799-6-FST |
| 38 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 4 | 2607200694 | Switch |
| 41 | 2600917900 | Needle bearing |
| 51 | 2603105131 | Bearing bolt |
| 53 | 2603124157 | Control Shaft |
| 56 | 2602026193 | Rotary Knob |
| 6 | 2600707078 | Grommet |
| 61 | 2604610151 | Compression Spring |
| 64 | 2601322045 | Straight Pin |
| 655 | 2601016093 | Splintering Protector |
| 660 | 2605730066 | Suction Socket |
| 661 | 2605510296 | Covering hood |
| 7 | 2601035004 | Cable Clip |
| 8 | 2601113224 | Nameplate |
| 801 | 2607990154 | Ejection Lever |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 810 | 2604320918 | Carbon-Brush Set |
| 813 | 16072335B9 | Speed governor 230V |
| 823 | 2605806868 | Gear Housing |
| 828 | 2602098025 | Tensioning Lever |
| 845 | 2601321909 | Roller Lever |
| 852 | 2601098121 | Work Board |
| 854 | 2602026915 | Rotary Knob |
| 860 | 2605808945 | Gear Cover |
| 866 | 1600A00H4H | Lifting Rod |
| 87 | 2605500206 | Air-Deflector Ring |
| 880 | 2601016911 | Base Plate |
| 880/85 | 2602317067 | Clamping Piece |
| 880/884 | 2600590018 | Ratchet Cap |
| 881 | 2601099900 | Work Board |
| 9 | 2601112556 | Manufacturer's nameplate Berner |
| 90 | 2910131205 | Hex Socket Head Cap Screw DIN 7984 M6X30-8.8 |
| 95 | 2603101060 | Protecting Cover |
| 97 | 2604448270 | Earth Conductor |
| 98 | 2604448365 | Connecting Cable |
| 99 | 2603410051 | Thread-forming tap. Screw |
