Makita BHS630
Makita BHS630: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BHS630: 96 positions on 1 sheet

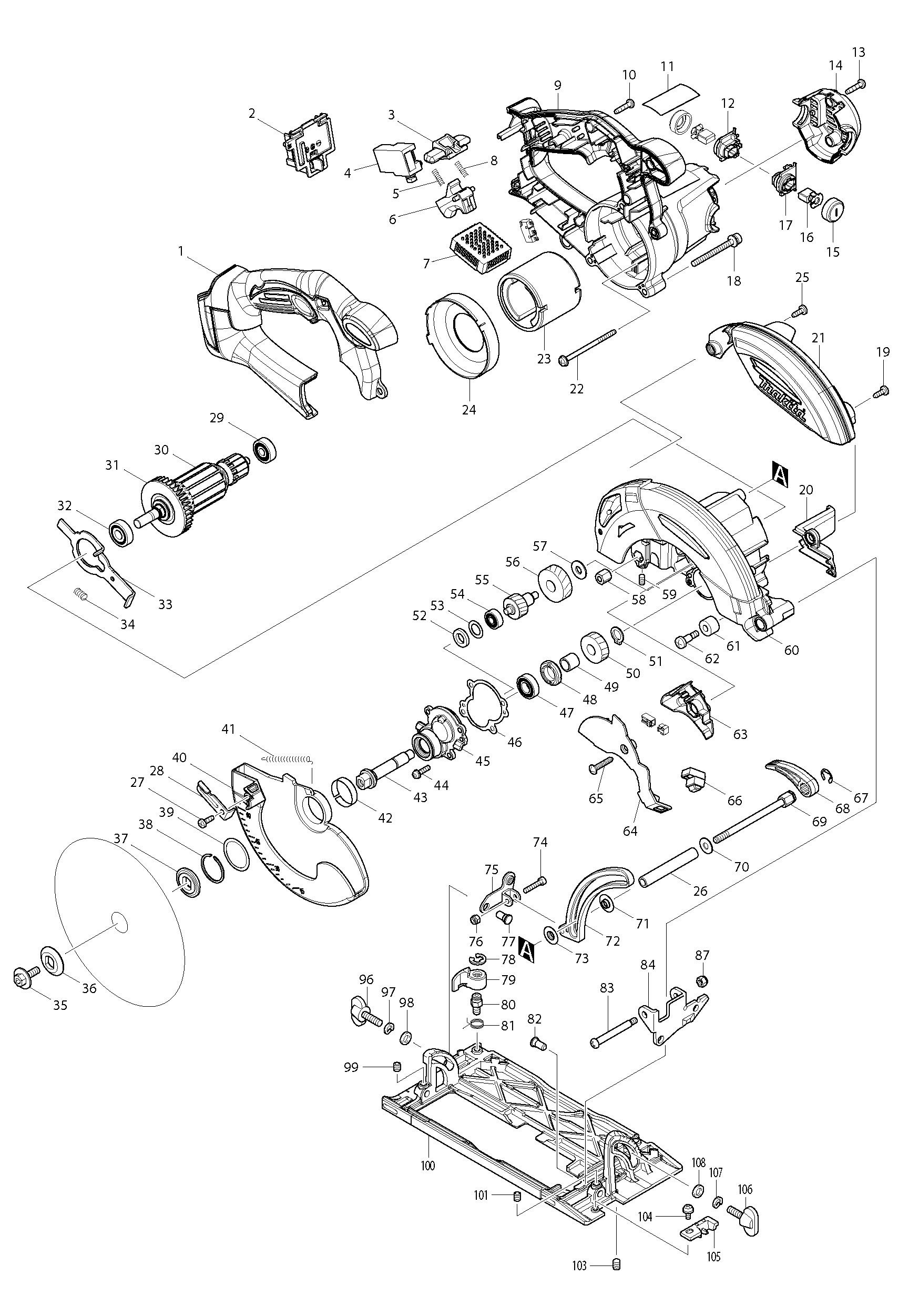

Sheet 1: Makita BHS630 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 141237-1 | Makita 141237-1 HANDLE COVER COMPLETE BHS630 |
| 2 | 643859-8 | Makita 643859-8 TERMINAL, LS713D |
| 3 | 419664-3 | Makita 419664-3 LOCK OFF LEVER, BCS550D |
| 4 | 650631-1 | Makita 650631-1 Switch BHS630 BUC250 BUC250RD BSS610 |
| 5 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 6 | 419665-1 | Makita 419665-1 SWITCH LEVER, CS550D |
| 7 | 620054-7 | Makita 620054-7 CONTROLLER BHS630 |
| 8 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 9 | 140984-1 | Makita 140984-1 MOTOR HOUSING COMPLETE BHS630 |
| 10 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 11 | 896399-7 | Makita 896399-7 NAME PLATE BHS630 |
| 12 | 643889-9 | Makita 643889-9 BRUSH HOLDER BHS630 |
| 13 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 14 | 452787-4 | Makita 452787-4 REAR COVER BHS630 |
| 15 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 16 | 194435-6 | Makita 194435-6 CB-441 Carbon Brushes BHS630 BHR202 BSR730 BJR181 BSS610 |
| 17 | 643882-3 | Makita 643882-3 BRUSH HOLDER, BSS610 |
| 18 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 19 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 20 | 452790-5 | Makita 452790-5 DUCT BHS630 |
| 21 | 452789-0 | Makita 452789-0 BLADE COVER BHS630 |
| 22 | 266292-3 | Makita 266292-3 TAPPING SCREW 4*65, SS610D |
| 23 | 638571-3 | Makita 638571-3 Yoke Unite for HR2810 |
| 24 | 452785-8 | Makita 452785-8 BAFFLE PLATE BHS630 |
| 25 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 26 | 331947-0 | Makita 331947-0 PIPE 6 BHS630 |
| 27 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 28 | 272270-3 | Makita 272270-3 LEVER 39, SS540D |
| 29 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 30 | 519288-6 | Makita 519288-6 ARMATURE ASSEMBLY BHS630 |
| 32 | 210051-7 | Makita 210051-7 BALLBEARING 609LLB, HR2453 |
| 33 | 344681-3 | Makita 344681-3 SHAFT LOCK, 5621D |
| 34 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 35 | 266458-5 | Makita 266458-5 Hex.Socket Het.Bolt M6*18, CS550D |
| 36 | 224421-4 | Makita 224421-4 OUTER FLANGE 28 BHS630 |
| 37 | 224417-5 | Makita 224417-5 INNER FLANGE 28 BHS630 |
| 38 | 257938-2 | Makita 257938-2 RETAINING RING(EXT)UR-26, CS550D |
| 39 | 267127-1 | Makita 267127-1 FLAT WASHER 26, HR2010 |
| 40 | 452791-3 | Makita 452791-3 Safety Cover for BHS630 |
| 41 | 231874-0 | Makita 231874-0 TENSION SPRING |
| 42 | 345470-9 | Makita 345470-9 THICKNESS RING, CS550D |
| 43 | 324859-4 | Makita 324859-4 SPINDLE, HS630D |
| 44 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 45 | 140983-3 | Makita 140983-3 BEARING BOX COMPLETE BHS630 |
| 46 | 442141-0 | Makita 442141-0 GASKET BHS630 |
| 47 | 210069-8 | Makita 210069-8 BALL BEARING 6900DDW, CS550D |
| 48 | 285847-5 | Makita 285847-5 BEARING RETAINER 14-23, CS540D |
| 49 | 257284-3 | Makita 257284-3 RING 10 BHS630 |
| 50 | 227718-0 | Makita 227718-0 HELICAL GEAR 24 BHS630 |
| 51 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 52 | 262155-1 | Makita 262155-1 RUBBER RING 10 BHS630 |
| 53 | 267369-7 | Makita 267369-7 FLAT WASHER 11 BHS630 |
| 54 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 55 | 227717-2 | Makita 227717-2 HELICAL GEAR 17 BHS630 |
| 56 | 226676-7 | Makita 226676-7 HELICAL GEAR 39 BHS630 |
| 57 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 58 | 264064-0 | Makita 264064-0 HEX.NUT M6 HS630 |
| 59 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 60 | 141002-8 | Makita 141002-8 BLADE CASE COMPLETE BHS630 |
| 61 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 62 | 265115-2 | Makita 265115-2 + PAN HEAD SCREW M5 BHS630 |
| 63 | 452786-6 | Makita 452786-6 CONNECTOR BOX BHS630 |
| 64 | 452788-2 | Makita 452788-2 COVER BHS630 |
| 65 | 266042-6 | Makita 266042-6 TAPPING SCREW BIND.CT 4*20, LS1016L |
| 66 | 631694-6 | Makita 631694-6 LED CIRCUIT, BSS610 |
| 67 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 68 | 272260-6 | Makita 272260-6 LEVER 55 BHS630 |
| 69 | 265595-2 | Makita 265595-2 HEX.BOLT M6X85 BHS630 |
| 70 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 71 | 346477-8 | Makita 346477-8 COLLOR BHS630 |
| 72 | 318245-9 | Makita 318245-9 DEPTH GUIDE BHS630 |
| 73 | 346477-8 | Makita 346477-8 COLLOR BHS630 |
| 74 | 922137-2 | Makita 922137-2 HEX. SOCKET HEAD BOLT M4X |
| 75 | 345876-1 | Makita 345876-1 REAR ANGULAR GUIDE, 5730 |
| 76 | 252126-6 | Makita 252126-6 HEX LOCK NUT M4-7, MT070 |
| 77 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 78 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 79 | 453165-1 | Makita 453165-1 LOCK LEVER BHS630 |
| 80 | 265571-6 | Makita 265571-6 HEX. BOLT M6X10 BHS630 |
| 81 | 233596-8 | Makita 233596-8 TORSION SPRING 11 HS6101 |
| 82 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 83 | 265072-4 | Makita 265072-4 + PAN HEAD SCREW M5 BHS630 |
| 84 | 345590-9 | Makita 345590-9 ANGULAR GUIDE BHS630 |
| 87 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 96 | 265708-5 | Makita 265708-5 THUMB SCREW M6*20, LS1040 |
| 97 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 98 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 99 | 266039-5 | Makita 266039-5 HEX. SOCKET HEAD SCREW M6 X6 |
| 100 | 310511-0 | Makita 310511-0 BASE, HS630D |
| 101 | 266039-5 | Makita 266039-5 HEX. SOCKET HEAD SCREW M6 X6 |
| 103 | 266208-8 | Makita 266208-8 M6X8 Hex Socket Head Set Screw M6*8 for 5902B |
| 104 | 911109-2 | Makita 911109-2 PAN HEAD SCREW M4*8, 3612 |
| 105 | 450333-7 | Makita 450333-7 TOP GUIDE BHS630 |
| 106 | 265708-5 | Makita 265708-5 THUMB SCREW M6*20, LS1040 |
| 107 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 108 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
