All parts of Makita BHR261T: 110 positions on 1 sheet

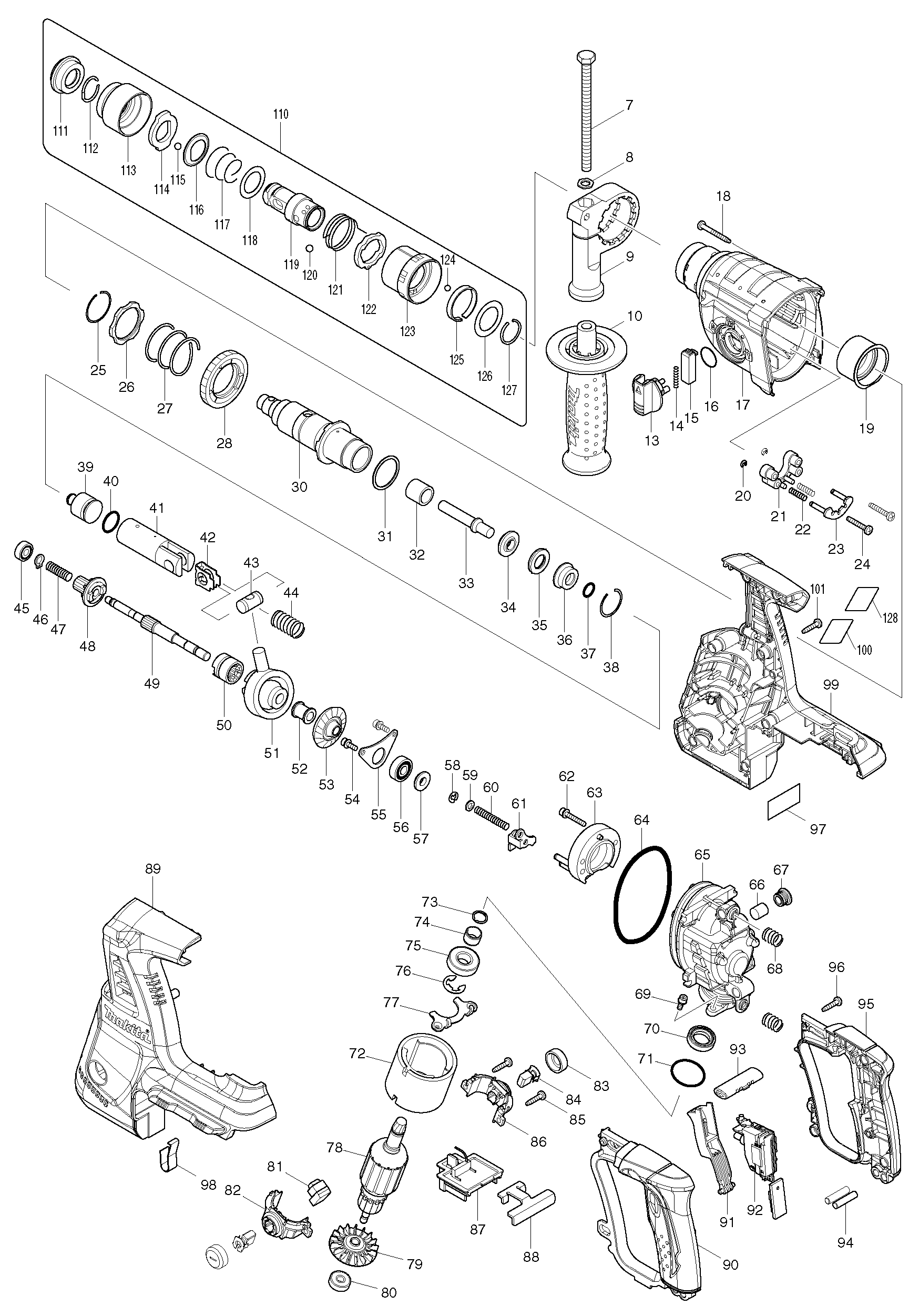

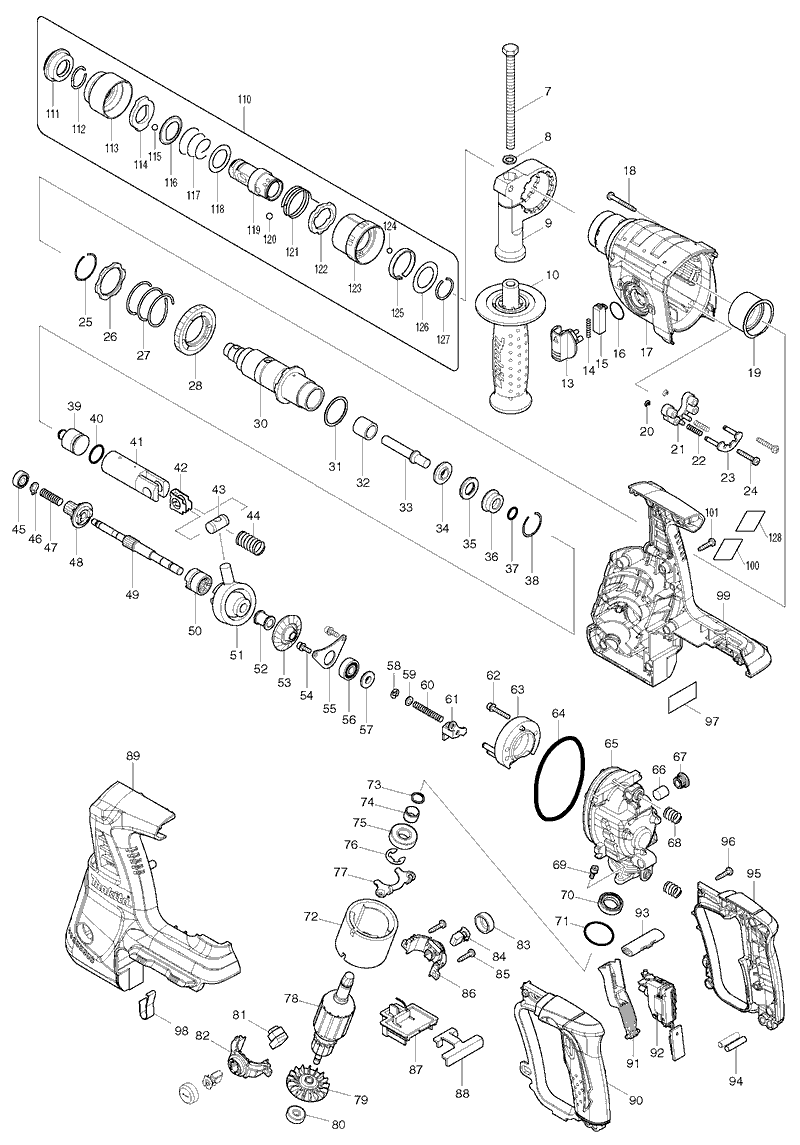

Sheet 1: Makita BHR261T parts diagram
| No. | Part number | Part name |
|---|---|---|
| 7 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 8 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 9 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 10 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 13 | 450980-4 | Makita 450980-4 CHANGE LEVER, HR261D |
| 14 | 233279-0 | Makita 233279-0 COMPRESSION SPRING 4, MT240 |
| 15 | 450978-1 | Makita 450978-1 LOCK BUTTON, HR261D |
| 16 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 17 | 158945-7 | Makita 158945-7 GEAR HOUSING COMPLETE, HR261D |
| 18 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 19 | 153290-5 | Makita 153290-5 NEEDLE BEARING COMPLETE, HR2440 |
| 20 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 21 | 417796-0 | Makita 417796-0 GUIDE BASE, HR2450 |
| 22 | 233344-5 | Makita 233344-5 COMPRESSION SPRING 4, HR2450 |
| 23 | 163430-7 | Makita 163430-7 LOCK PLATE COMPLETE, HR2450 |
| 24 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 25 | 233929-7 | Makita 233929-7 Ring Spring for HR2450 |
| 26 | 267791-8 | Makita 267791-8 WASHER 31, HR2453 |
| 27 | 233401-9 | Makita 233401-9 COMPRESSION SPRING 32, HR2450 |
| 28 | 227109-5 | Makita 227109-5 Spur Gear 51 HR2470 |
| 30 | 158307-9 | Makita 158307-9 Tool Holder Complete HR2470T HR2470FT BHR262T |
| 31 | 267229-3 | Makita 267229-3 FLAT WASHER 28, HR2020 |
| 32 | 331769-8 | Makita 331769-8 9 Sleeve 9 HR2470 HR2470T HR2810 HR2811 BHR202 BHR241 BHR261 |
| 33 | 324796-2 | Makita 324796-2 Impact Bolt HR2810 |
| 34 | 324402-9 | Makita 324402-9 RING 10, HR2450T |
| 35 | 421955-0 | Makita 421955-0 Cushion Ring 13 HR2453 HR2470 HR2230 HR2460 HR2810 |
| 36 | 324216-6 | Makita 324216-6 O RING CASE, HR2020 |
| 37 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 38 | 233917-4 | Makita 233917-4 Ring Spring 28 for HR2020 HR2440 HR2450 HR2460 HR2470 HR2810 |
| 39 | 324214-0 | Makita 324214-0 STRIKER, HR2020 |
| 40 | 213227-5 | Makita 213227-5 O RING 16, HR2020 |
| 41 | 318132-2 | Makita 318132-2 Piston Cylinder for HR2470 |
| 42 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 43 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 44 | 234098-7 | Makita 234098-7 COMPRESSION SPRING 14, HR2610 |
| 45 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 46 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 47 | 233343-7 | Makita 233343-7 COMPRESSION SPRING 7, HR2450 |
| 48 | 227179-4 | Makita 227179-4 Spur Gear 10 for BHR202, BHR241, BHR261, HR2450 |
| 49 | 325622-8 | Makita 325622-8 CAM SHAFT BHR261T |
| 50 | 331768-0 | Makita 331768-0 CLUTCH CAM, HR2470 |
| 51 | 219014-0 | Makita 219014-0 Swash Bearing 10 for HR2450 HR2455 BHR200 BHR202 |
| 52 | 325640-6 | Makita 325640-6 SLEEVE 9, HR261D |
| 53 | 227549-7 | Makita 227549-7 SPIRAL BEVEL GEAR 26, HR261D |
| 54 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 55 | 346038-4 | Makita 346038-4 BEARING RETAINER B, HR261D |
| 56 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 57 | 324212-4 | Makita 324212-4 RING 8, HR2020 |
| 58 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 59 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 60 | 233342-9 | Makita 233342-9 COMPRESSION SPRING 6, HR2450 |
| 61 | 345220-2 | Makita 345220-2 CHANGE PLATE, HR2450 |
| 62 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 63 | 158944-9 | Makita 158944-9 INNER SUPPORT COMPLETE, HR261D |
| 64 | 213728-3 | Makita 213728-3 O-RING 68, HR261D |
| 65 | 318392-6 | Makita 318392-6 INNER HOUSIGN, HR261D |
| 66 | 443143-9 | Makita 443143-9 FELTER, HR261D |
| 67 | 424185-2 | Makita 424185-2 CAP, HR261D |
| 68 | 234097-9 | Makita 234097-9 COMPRESSION SPRING 10, HR261D |
| 69 | 266273-7 | Makita 266273-7 HEX SOCKET HEAD BOLT M4*12, HR2020 |
| 70 | 213231-4 | Makita 213231-4 OIL SEAL 15 |
| 71 | 213437-4 | Makita 213437-4 O RING 28, HR261D |
| 72 | 632828-4 | Makita 632828-4 YOKE UNIT, HR261D |
| 73 | 961082-6 | Makita 961082-6 RETAINING RING (EXT)WR12, HR261D |
| 74 | 331596-3 | Makita 331596-3 SLEEVE 12, HR4002 |
| 75 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 76 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 77 | 346037-6 | Makita 346037-6 BEARING RETAINER A, HR261D |
| 78 | 519235-7 | Makita 519235-7 Armature Ass'y HR261D BHR261 BHR261T BHR262T |
| 79 | 240037-7 | Makita 240037-7 FAN 44, BHR200 |
| 80 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 81 | 631850-8 | Makita 631850-8 LIGHT CIRCUIT, HR261D |
| 82 | 638660-4 | Makita 638660-4 BRUSH HOLDER, HR261D |
| 83 | 643829-7 | Makita 643829-7 HOLDER CAP, JR182D |
| 84 | 194928-3 | Makita 194928-3 CB-442 Carbon Brushes BHR261T BUC250 BUH550 UC250D UH550D |
| 85 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 86 | 638661-2 | Makita 638661-2 BRUSH HOLDER, HR261D |
| 87 | 638657-3 | Makita 638657-3 TERMINAL UNIT, HR261D |
| 88 | 346039-2 | Makita 346039-2 SUPPORT PLATE, HR261D |
| 89 | 188665-9 | Makita 188665-9 HOUSING SET, HR261D |
| 90 | 188639-0 | Makita 188639-0 HOUSING SET, HR261D |
| 91 | 450981-2 | Makita 450981-2 SWITCH LEVER, HR261D |
| 92 | 650619-1 | Makita 650619-1 Switch for HR261D BHR261 BHR262 |
| 93 | 450979-9 | Makita 450979-9 F/R CHANGE LEVER, HR261D |
| 94 | 256261-2 | Makita 256261-2 PIN 6, 9062 |
| 95 | 188639-0 | Makita 188639-0 HOUSING SET, HR261D |
| 96 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 97 | 814979-7 | |
| 98 | 344903-1 | Makita 344903-1 VIBRATION ISOLATOR PLATE, HR261D |
| 99 | 188665-9 | Makita 188665-9 HOUSING SET, HR261D |
| 100 | 866458-1 | Makita 866458-1 NAME PLATE, HR261TD |
| 101 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 111 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 112 | 233940-9 | Makita 233940-9 RING SPRING 19, HR1830FT |
| 113 | 418217-5 | Makita 418217-5 CHUCK COVER, HR245FT |
| 114 | 345333-9 | Makita 345333-9 STOPPER, HR2450FT |
| 115 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 116 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 117 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 118 | 267279-8 | Makita 267279-8 FLAT WASHER 21, HR2450 |
| 119 | 324355-2 | Makita 324355-2 TOOL HOLDER, HR2450T |
| 120 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 121 | 231669-1 | Makita 231669-1 TORSION SPRING, HR2450 |
| 122 | 345334-7 | Makita 345334-7 CHANGE RING, HR245FT |
| 123 | 418218-3 | Makita 418218-3 CHANGE COVER, HR245FTT |
| 124 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 125 | 345335-5 | Makita 345335-5 LEAF SPRING, HR245FT |
| 126 | 267270-6 | Makita 267270-6 FLAT WASHER 24, HR245FT |
| 127 | 233924-7 | Makita 233924-7 RING SPRING, HR245FT |
| 128 | 819348-7 | Makita 819348-7 CLEAR LABEL, HR261D |
