Makita BHP456: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BHP456: 24 positions on 1 sheet

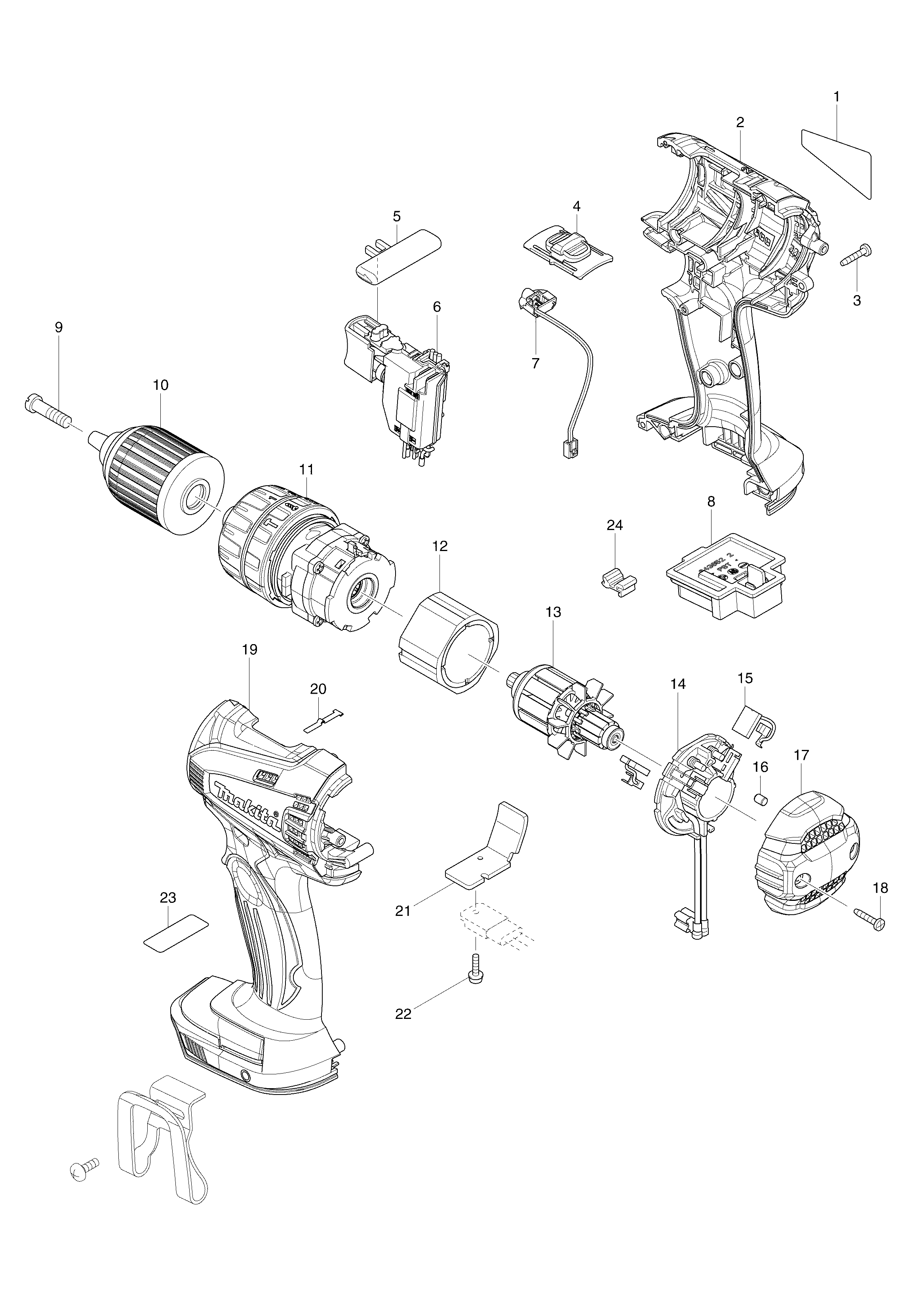

Sheet 1: Makita BHP456 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 868979-9 | |
| 2 | 188971-2 | Makita 188971-2 Housing Set for BHP456D BHP456 DHP456 |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 125832-5 | Makita 125832-5 Speed Change Lever Assembly for DF456D |
| 5 | 419250-0 | Makita 419250-0 Forward Reverse Change Lever HP451D BDF343 BDF441 |
| 6 | 650637-9 | OLDN Makita 650637-9 SWITCH, DF456D |
| 7 | 620012-3 | Makita 620012-3 LED CIRCUIT, DF456D |
| 8 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 763175-3 | |
| 11 | 125848-0 | Makita 125848-0 GEAR ASSEMBLY, HP456D |
| 12 | 638611-7 | Makita 638611-7 YOKE UNIT, DF451D |
| 13 | 619263-3 | Makita 619263-3 Armature for DDF456 BDF456 HP456 |
| 14 | 638728-6 | Makita 638728-6 Brush Holder Complete for DF456D |
| 15 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 16 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 17 | 452205-2 | Makita 452205-2 Rear Cover BDF446 BDF456 BHP456 DDF446 DDF456 LXPH01 LXFD01 |
| 18 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 19 | 188971-2 | Makita 188971-2 Housing Set for BHP456D BHP456 DHP456 |
| 20 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 21 | 689170-4 | Makita 689170-4 HEAT SINK, DF456D |
| 22 | 911013-5 | Makita 911013-5 PAN HEAD SCREW M3X10, DF456D |
| 23 | ||
| 24 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
