Makita BHP454
Makita BHP454: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BHP454: 25 positions on 1 sheet

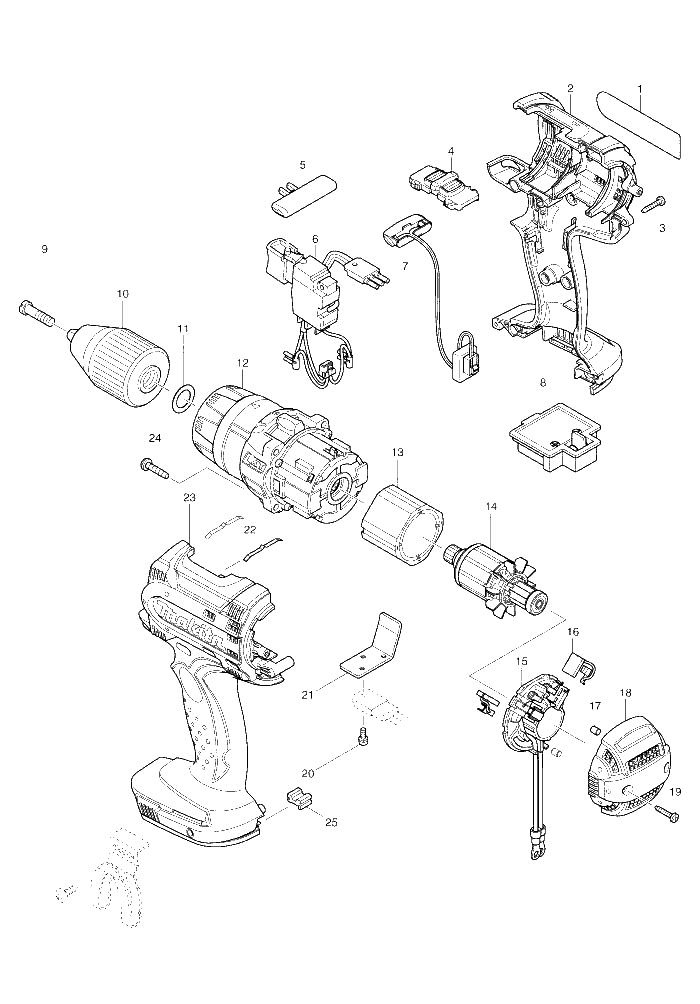

Sheet 1: Makita BHP454 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 865306-1 | Makita 865306-1 NAME PLATE, HP454D |
| 2 | 187497-1 | |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 125488-4 | Makita 125488-4 SPEED CHANGE LEVER ASSEMBLY, DF444D |
| 5 | 419250-0 | Makita 419250-0 Forward Reverse Change Lever HP451D BDF343 BDF441 |
| 6 | 650693-9 | Makita 650693-9 Switch for BDF444 BDF454 BHP444 BHP454 |
| 7 | 631692-0 | Makita 631692-0 LIGHT CIRCUIT, DF451D |
| 8 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 763196-5 | Makita 763196-5 Keyless Chuck 13mm, 1/2"-20UNF for BHP441 BHP451 BHP454 |
| 11 | 253798-0 | Makita 253798-0 FLAT WASHER13, HP451D |
| 12 | 125576-7 | Makita 125576-7 Gear Assembly forHP454 HP454D BHP444 BHP454 |
| 13 | 638613-3 | Makita 638613-3 YOKE UNIT, DF444D |
| 14 | 619230-8 | Makita 619230-8 Armature for DF454D HP454D BDF454 |
| 15 | 638993-7 | Makita 638993-7 Brush Holder for BDF444 BDF454 BHP444 BHP454 |
| 16 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 17 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 18 | 450644-0 | Makita 450644-0 Rear Cover for DF444D Cordless Drill |
| 19 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 20 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 21 | 689150-0 | Makita 689150-0 HEAT SINK, DF452D |
| 22 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 23 | 187497-1 | |
| 24 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 25 | 424476-1 | Makita 424476-1 CUSHION |
