Makita BHP453
Makita BHP453: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BHP453: 16 positions on 1 sheet

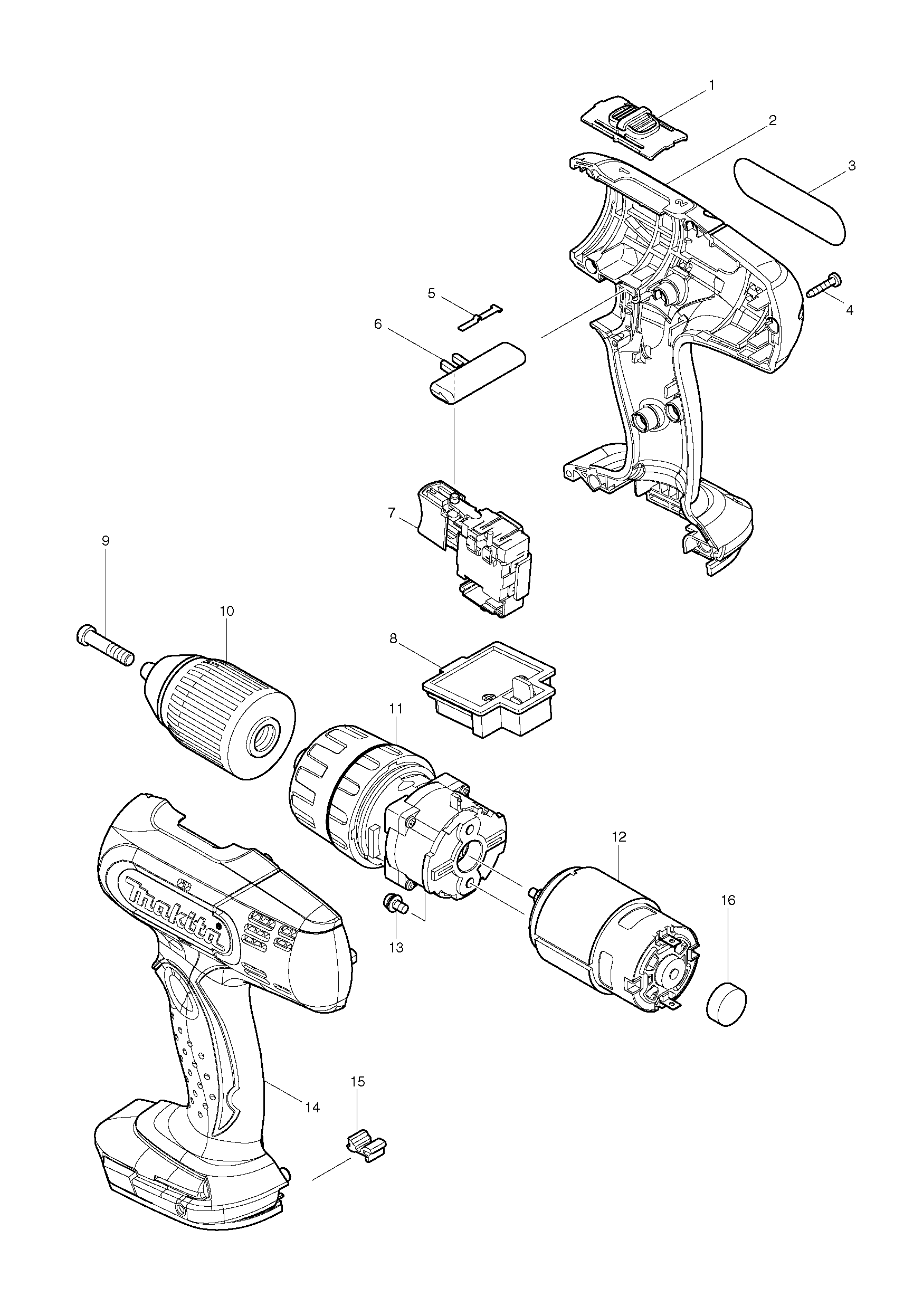

Sheet 1: Makita BHP453 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 2 | 188615-4 | Makita 188615-4 Housing set for DF453D BDF453 BHP453 |
| 3 | 865459-6 | Makita 865459-6 NAME PLATE, HP453D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 419250-0 | Makita 419250-0 Forward Reverse Change Lever HP451D BDF343 BDF441 |
| 7 | 650604-4 | Makita 650604-4 Switch DF453D BDF453 DHP453 BHP453 |
| 8 | 643812-4 | Makita 643812-4 TERMINAL |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 766004-9 | |
| 11 | 125485-0 | Makita 125485-0 Gear Assembly for 8391D BHP453 DHP453 |
| 12 | 629834-8 | Makita 629834-8 Motor 18V for 6390D BHP453 DHP453 BDF453 |
| 13 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 14 | 188615-4 | Makita 188615-4 Housing set for DF453D BDF453 BHP453 |
| 15 | 424026-2 | Makita 424026-2 CUSHION, HP452D |
| 16 | 421940-3 | Makita 421940-3 CAP, 8390D |
