Makita BHP450
Makita BHP450: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BHP450: 22 positions on 1 sheet

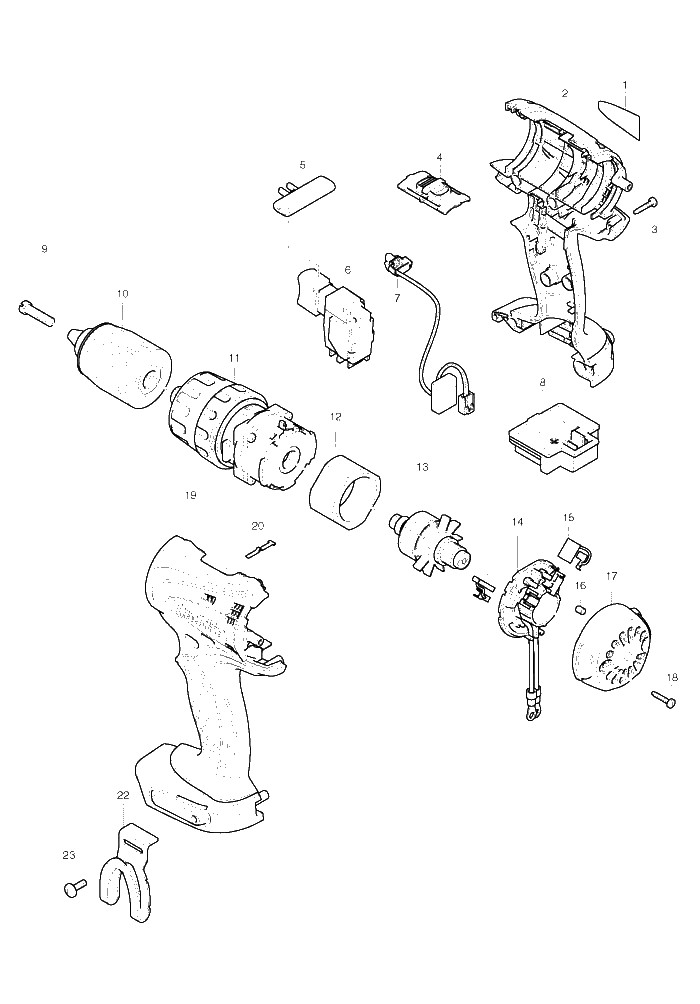

Sheet 1: Makita BHP450 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 862099-1 | |
| 2 | 188064-5 | Makita 188064-5 Housing Set for BDF450 BHP450 BDF450 BHP450 |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 5 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 6 | 650569-0 | Makita 650569-0 Switch TG553FSB-3 for BHP440 BHP450 BDF440 BDF450 |
| 7 | 631693-8 | Makita 631693-8 Light Circuit TD124D BTD140SFE |
| 8 | 643843-3 | Makita 643843-3 TERMINAL |
| 9 | 251464-3 | Makita 251464-3 Flat Head Screw M6X22 for BDF440 BDF450 BHP440 BHP450 |
| 10 | 763175-3 | |
| 11 | 125311-3 | Makita 125311-3 Gear Assembly for BHP440 BHP450 |
| 12 | 638423-8 | Makita 638423-8 Yoke Unit for BDF440 BDF445d BDF450 DHP440 |
| 13 | 619170-0 | Makita 619170-0 Armature for BDF450 BHP450 DF450D |
| 14 | 638857-5 | MAKITA 194427-5 CB440 + 638857-5 BRUSH BRUSHES HOLDER BDF440 BDF450 BHP440 BHP450 BTP130 BTP140 |
| 15 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 16 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 17 | 418981-8 | Makita 418981-8 RearCover for BDF440 TD140D |
| 18 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 19 | 188064-5 | Makita 188064-5 Housing Set for BDF450 BHP450 BDF450 BHP450 |
| 20 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 22 | 346317-0 | Makita 346317-0 HOOK NARROW FOR 14,4V/18V 3,0AH BATTERY TOOLS |
| 23 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
