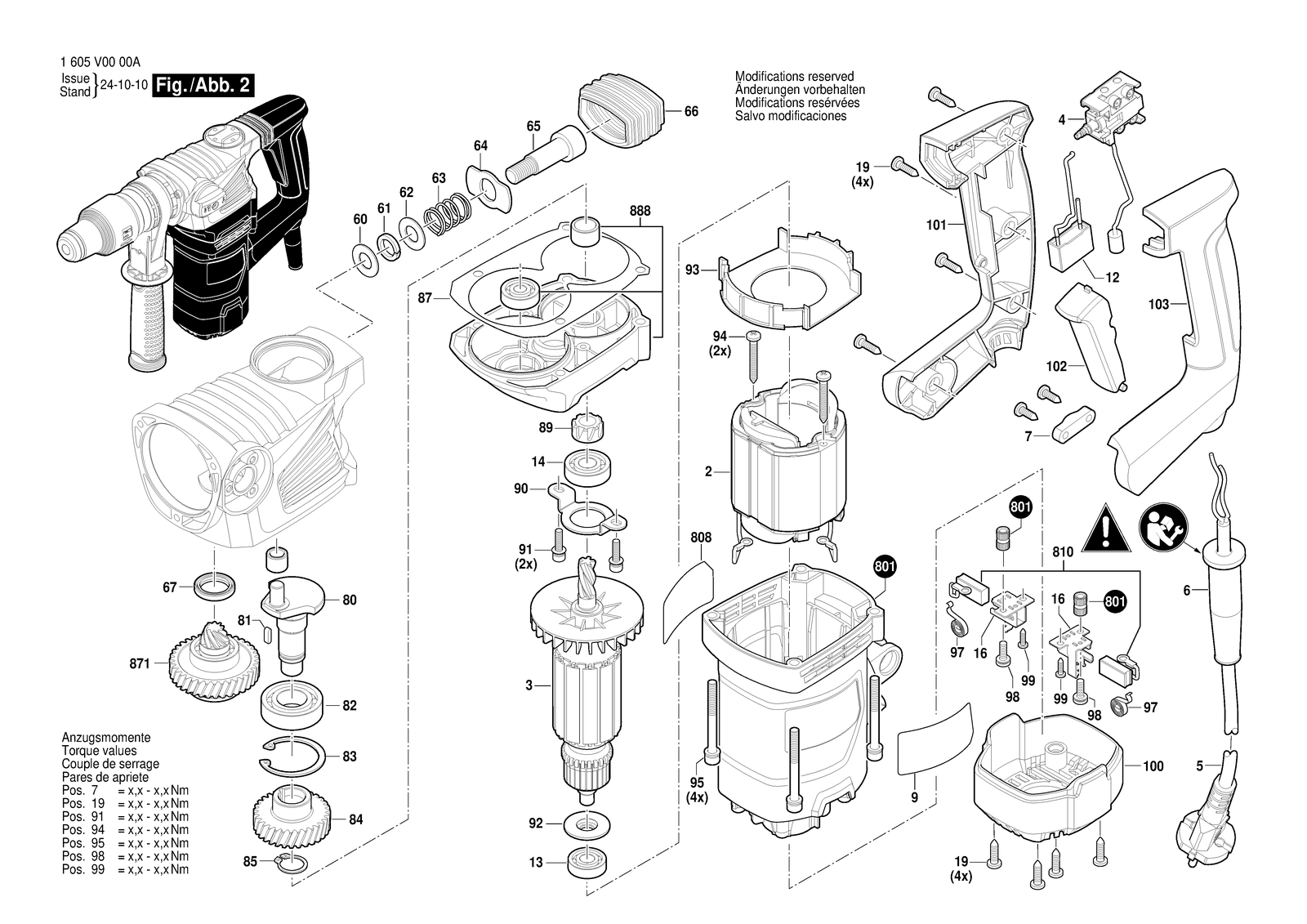

Bosch BH 426 rotary hammer: exploded parts diagram, 3 sheets, 110 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BH 426: 110 positions on 3 sheets
Bosch BH 426 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1619XS0345 | Brush-Cover |
| 101 | 1619XS0346 | Handle |
| 102 | 1619XS0347 | Trigger |
| 103 | 1619XS0348 | Handle Cover |
| 104 | 1619XS0349 | Eccentric Shaft |
| 105 | 1619XS0350 | O-Ring |
| 106 | 1619XS0351 | Supporting foot |
| 107 | 1619XS0352 | Screw |
| 108 | 1619XS0353 | Compression Spring |
| 109 | 1619XS0354 | Switch Button |
| 110 | 1619XS0355 | Knob |
| 111 | 1619XS0356 | Hex Socket Head Cap Screw |
| 112 | 1619XS0357 | Clamping Band |
| 113 | 1619XS0358 | Support clamp |
| 114 | 1619XS0359 | Supporting foot |
| 115 | 1619XS0360 | Bolt |
| 116 | 1619XS0361 | Plain Washer |
| 117 | 1619XS0362 | Auxiliary Handle |
| 118 | 1619XS0372 | Auxiliary Handle |
| 118 | 1619XS0373 | Plain Washer |
| 119 | 1619XS0373 | Plain Washer |
| 12 | 1619XS0263 | Suppression Capacitor |
| 120 | 1619XS0374 | Ring |
| 121 | 1619XS0375 | Sleeve |
| 13 | 1619XS0264 | Groove ball bearing |
| 14 | 1619XS0265 | Groove ball bearing |
| 16 | 1619XS0266 | Brush Holder |
| 19 | 1619XS0267 | Tapping Screw |
| 2 | 1619XS0254 | Field |
| 23 | 1619XS0268 | Protective Cap |
| 23 | 1619XS0379 | Protective Cap |
| 24 | 1619XS0269 | Retaining ring |
| 25 | 1619XS0270 | Protection Sleeve |
| 25 | 1619XS0377 | Protection Sleeve |
| 26 | 1619XS0271 | Compression Spring |
| 27 | 1619XS0272 | Packing Washer |
| 29 | 1619XS0274 | Ball |
| 3 | 1619XS0255 | Armature |
| 30 | 1619XS0275 | Seal Ring |
| 31 | 1619XS0276 | Seal Ring |
| 32 | 1619XS0277 | O-Ring |
| 34 | 1619XS0279 | Spring retaining ring |
| 35 | 1619XS0280 | Felt |
| 36 | 1619XS0281 | Packing Washer |
| 37 | 1619XS0282 | Spring retaining ring |
| 38 | 1619XS0283 | Groove ball bearing |
| 4 | 1619XS0256 | Switch |
| 40 | 1619XS0285 | Hex Screw |
| 41 | 1619XS0286 | O-Ring |
| 42 | 1619XS0287 | Ball |
| 43 | 1619XS0288 | Hammer Pipe |
| 44 | 1619XS0289 | Woodruff Key |
| 45 | 1619XS0290 | Packing Washer |
| 46 | 1619XS0291 | Compression Spring |
| 47 | 1619XS0292 | Crown Gear |
| 48 | 1619XS0293 | Spring retaining ring |
| 5 | 1619XS0257 | Power supply cord |
| 5 | 1619XS0366 | Power supply cord |
| 50 | 1619XS0295 | O-Ring |
| 52 | 1619XS0297 | Piston Pin |
| 54 | 1619XS0299 | Plain bearing |
| 57 | 1619XS0302 | Housing Cover |
| 58 | 1619XS0303 | O-Ring |
| 59 | 1619XS0304 | Felt |
| 6 | 1619XS0258 | Grommet |
| 60 | 1619XS0305 | Packing Washer |
| 61 | 1619XS0306 | Spring Washer |
| 62 | 1619XS0307 | Plain Washer |
| 63 | 1619XS0308 | Compression Spring |
| 64 | 1619XS0309 | Retaining Washer |
| 65 | 1619XS0310 | Bolt |
| 652 | 1619XS0376 | Protective Cap |
| 66 | 1619XS0311 | Boot |
| 67 | 1619XS0312 | Sealing Frame |
| 691 | 1619XS0364 | Carrying Case |
| 692 | 1619XS0365 | Pin-Type Face-Wrench |
| 693 | 1619XS0363 | Grease Tube |
| 7 | 1619XS0259 | Fastening Clamp |
| 80 | 1619XS0325 | Eccentric Shaft |
| 801 | 1619XS0253 | Motor Housing |
| 808 | 1619XS0260 | Nameplate |
| 808 | 1619XS0367 | Nameplate |
| 81 | 1619XS0326 | Woodruff Key |
| 810 | 1619XS0262 | Carbon Brush |
| 82 | 1619XS0327 | Groove ball bearing |
| 828 | 1619XS0273 | Toolholder |
| 828 | 1619XS0378 | Toolholder |
| 83 | 1619XS0328 | Spring retaining ring |
| 833 | 1619XS0278 | Striker Pin |
| 839 | 1619XS0284 | Holding Sleeve |
| 84 | 1619XS0329 | Cylindrical Gear |
| 849 | 1619XS0294 | Striker |
| 85 | 1619XS0330 | Retaining ring |
| 851 | 1619XS0296 | Hammer Piston |
| 853 | 1619XS0298 | Connecting Rod |
| 856 | 1619XS0301 | Impact Mechanism Housing |
| 87 | 1619XS0332 | Sealing washer |
| 871 | 1619XS0316 | Cylindrical Gear |
| 888 | 1619XS0333 | Gear Box |
| 89 | 1619XS0334 | Rubber Ring |
| 9 | 1619XS0261 | Manufacturer's nameplate |
| 90 | 1619XS0335 | Bearing plate |
| 91 | 1619XS0336 | Hex Socket Head Cap Screw |
| 92 | 1619XS0337 | Intermediate Ring |
| 93 | 1619XS0338 | Air-Deflector Ring |
| 94 | 1619XS0339 | Tapping Screw |
| 95 | 1619XS0340 | Hex Socket Head Cap Screw |
| 97 | 1619XS0342 | Coil Spring |
| 98 | 1619XS0343 | Screw |
| 99 | 1619XS0344 | Tapping Screw |
