Makita BGD801
Makita BGD801: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BGD801: 26 positions on 1 sheet

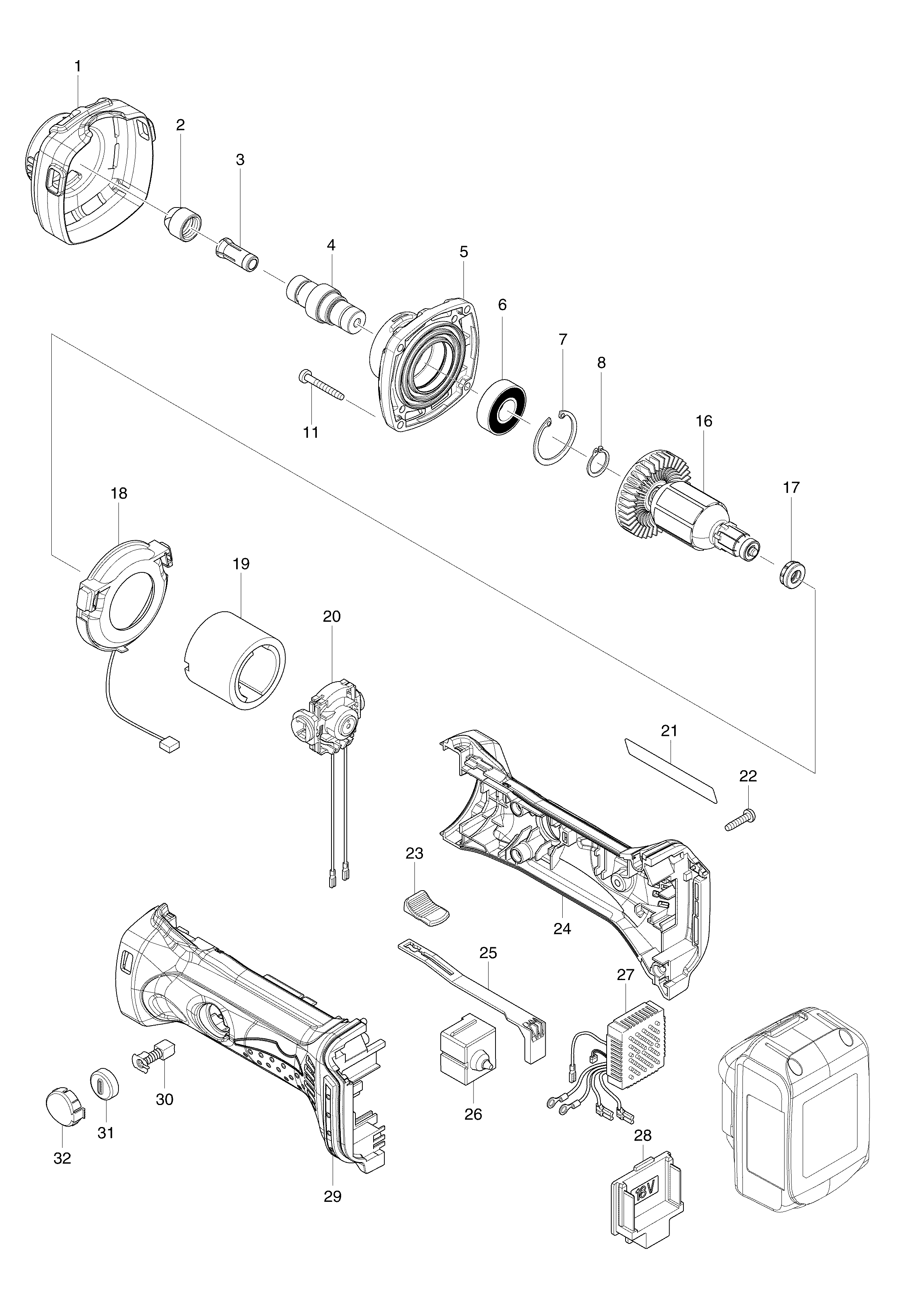

Sheet 1: Makita BGD801 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424381-2 | |
| 2 | 763668-0 | Makita 763668-0 COLLET NUT, GD0602 |
| 3 | 763670-3 | Makita 763670-3 Collet cone 6MM for BGD801 BGD800 GD0602 |
| 4 | 326011-0 | Makita 326011-0 SPINDLE, GD801D |
| 5 | 140091-0 | Makita 140091-0 BEARING BOX COMPLETE, GD0602 |
| 6 | 211237-6 | Makita 211237-6 BALL BEARING 6002LLB |
| 7 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 8 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 11 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 16 | 619285-3 | Makita 619285-3 Armature 18V GD801D BGD801 |
| 17 | 421977-0 | Makita 421977-0 Rubber Ring 13 for CS540D |
| 18 | 631714-6 | Makita 631714-6 LED CIRCUIT, GA400D |
| 19 | 638627-2 | Makita 638627-2 Yoke Unit for GA452D DGA450 BGA450 BGA452 6319 6319D 6339 |
| 20 | 638448-2 | Makita 638448-2 End Bell Complete GA452D |
| 21 | 868967-6 | |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 24 | 188761-3 | Makita 188761-3 HOUSING SET, GA452D |
| 25 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 26 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 27 | 631713-8 | OLDN Makita 631713-8 CONTROLLER, GA400D |
| 28 | 643838-6 | Makita 643838-6 Terminal DF451D BDA350 BCS550 BGD800 BHR202B |
| 29 | 188761-3 | Makita 188761-3 HOUSING SET, GA452D |
| 30 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 31 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 32 | 419518-4 | Makita 419518-4 Holder Cap Cover for BPJ140 BPJ180 GA452D |
