All parts of Makita BGD800: 37 positions on 1 sheet

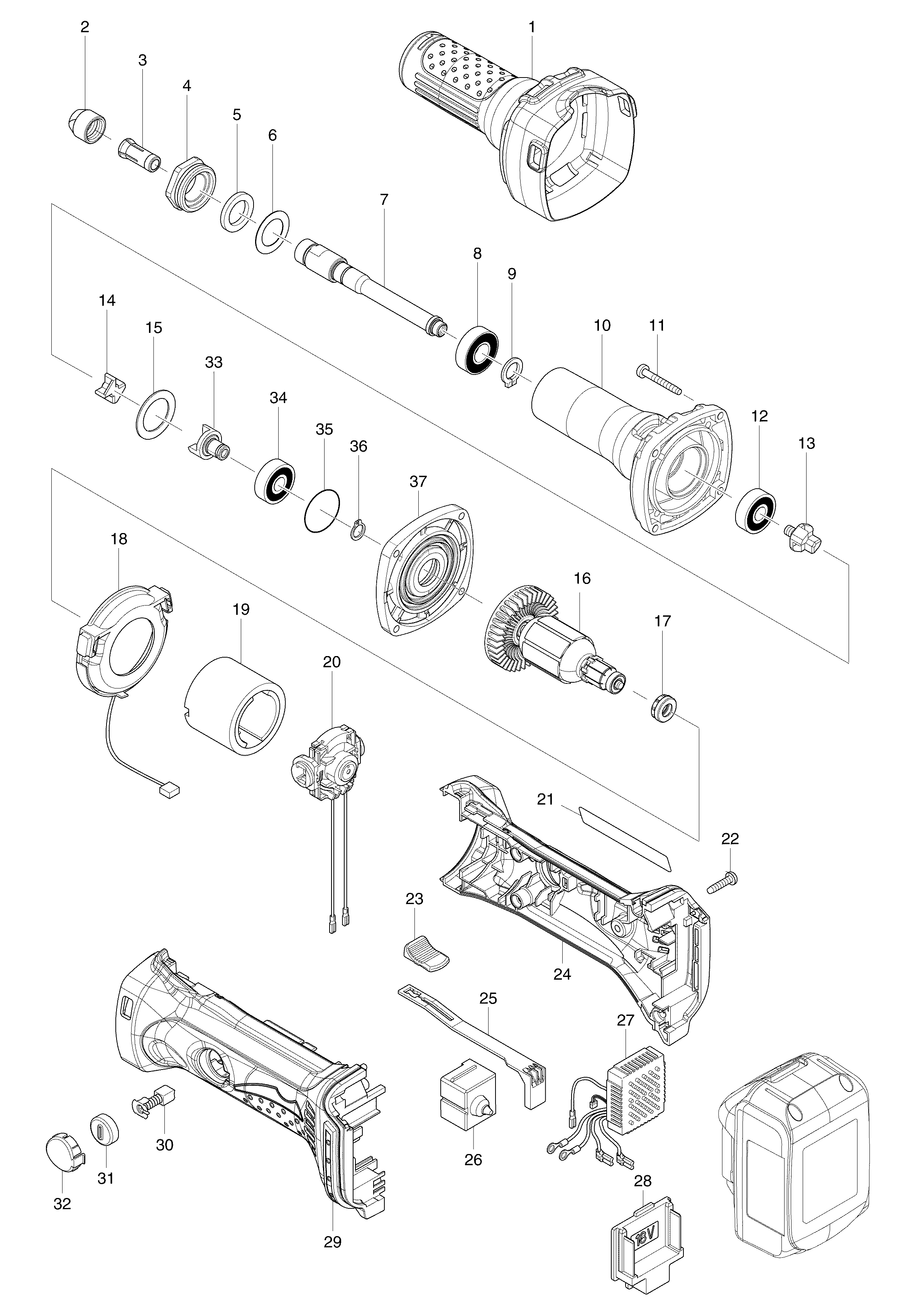

Sheet 1: Makita BGD800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424380-4 | Makita 424380-4 INSULATION COVER, GD800D |
| 2 | 763668-0 | Makita 763668-0 COLLET NUT, GD0602 |
| 3 | 763670-3 | Makita 763670-3 Collet cone 6MM for BGD801 BGD800 GD0602 |
| 4 | 317999-5 | Makita 317999-5 BEARING RETAINER, GD0600 |
| 5 | 443124-3 | Makita 443124-3 FELT RING 17, GD0600 |
| 6 | 267329-9 | Makita 267329-9 FLAT WASHER 18, GD0600 |
| 7 | 326010-2 | Makita 326010-2 SPINDLE, GD800D |
| 8 | 210106-8 | Makita 210106-8 BALL BEARING 6001LLB, UC3020A-K |
| 9 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 10 | 318000-9 | Makita 318000-9 BARREL, GD0600 |
| 11 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 12 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 13 | 324639-8 | Makita 324639-8 COUPLING, GD0600 |
| 14 | 421942-9 | Makita 421942-9 SPACER, GD0600 |
| 15 | 267126-3 | Makita 267126-3 FLAT WASHER 22, GD0600 |
| 16 | 619284-5 | Makita 619284-5 Armature 18V BGD800 |
| 17 | 421977-0 | Makita 421977-0 Rubber Ring 13 for CS540D |
| 18 | 631714-6 | Makita 631714-6 LED CIRCUIT, GA400D |
| 19 | 638627-2 | Makita 638627-2 Yoke Unit for GA452D DGA450 BGA450 BGA452 6319 6319D 6339 |
| 20 | 638448-2 | Makita 638448-2 End Bell Complete GA452D |
| 21 | 868960-0 | |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 24 | 188761-3 | Makita 188761-3 HOUSING SET, GA452D |
| 25 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 26 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 27 | 631713-8 | OLDN Makita 631713-8 CONTROLLER, GA400D |
| 28 | 643838-6 | Makita 643838-6 Terminal DF451D BDA350 BCS550 BGD800 BHR202B |
| 29 | 188761-3 | Makita 188761-3 HOUSING SET, GA452D |
| 30 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 31 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 32 | 419518-4 | Makita 419518-4 Holder Cap Cover for BPJ140 BPJ180 GA452D |
| 33 | 326009-7 | Makita 326009-7 COUPLING, GD800D |
| 34 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 35 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 36 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 37 | 317821-6 | Makita 317821-6 GEAR HOUSING COVER, 9536NB |
