All parts of Makita BGA450: 45 positions on 1 sheet

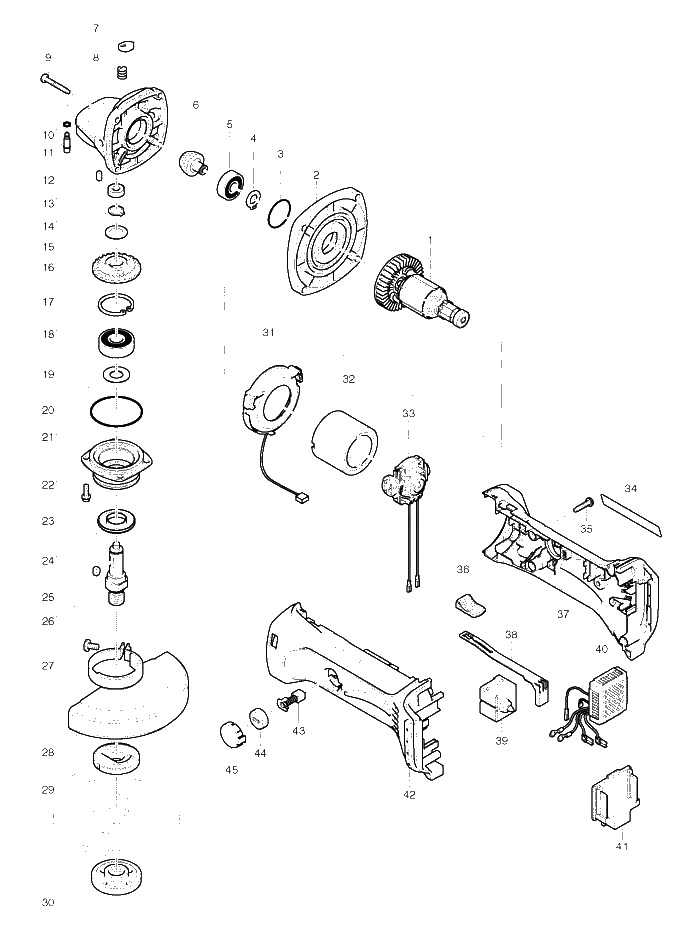

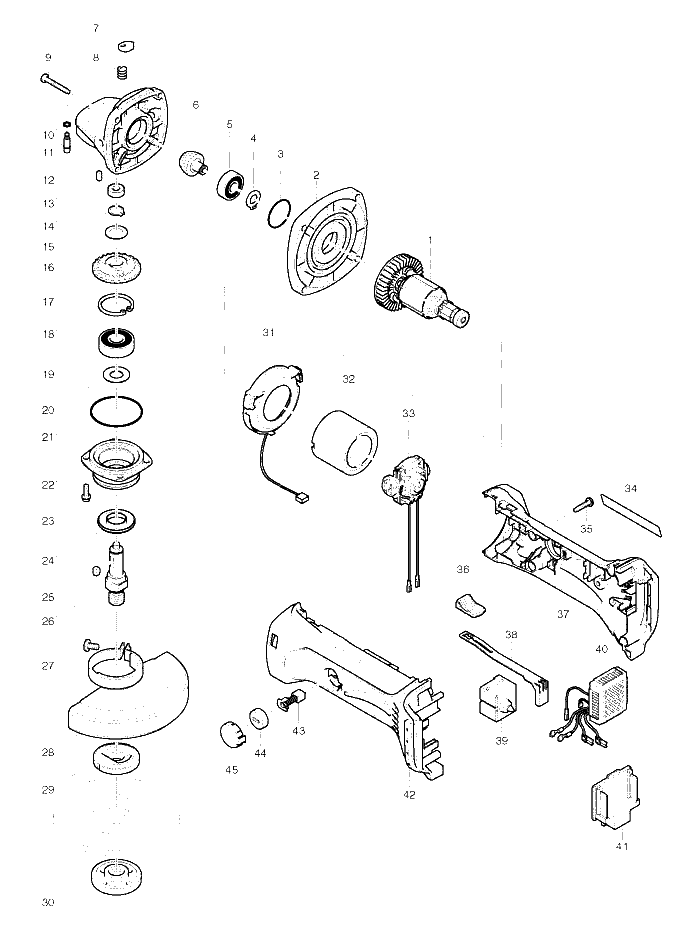

Sheet 1: Makita BGA450 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 619217-0 | Makita 619217-0 Armature for GA400D |
| 2 | 317821-6 | Makita 317821-6 GEAR HOUSING COVER, 9536NB |
| 3 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 4 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 5 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 6 | 227501-5 | Makita 227501-5 SPIRAL BEVEL GEAR 19, GA452D |
| 7 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 8 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 9 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 10 | 213960-9 | Makita 213960-9 O-RING 5, 9556NB |
| 11 | 256496-5 | Makita 256496-5 SHOULDER PIN 4, GA452D |
| 12 | 318051-2 | Makita 318051-2 Gear Housing for GA400D 9553NB 9554NB 9554HN 9555NB |
| 13 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 14 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 15 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 16 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 17 | 227502-3 | Makita 227502-3 SPIRAL BEVEL GEAR 39, GA452D |
| 18 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 19 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 20 | 267238-2 | Makita 267238-2 FLAT WASHER 12, MT952 |
| 21 | 213622-9 | Makita 213622-9 O-RING 45, 9536NB |
| 22 | 318331-6 | Makita 318331-6 BEARING BOX, 9553NB |
| 23 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 24 | 345464-4 | Makita 345464-4 LABYRINTH RING, 9536NB |
| 25 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 26 | 324489-1 | Makita 324489-1 SPINDLE, 9536NB |
| 27 | 265180-1 | Makita 265180-1 PAN HEAD SCREW M5X16, MGA451 |
| 28 | 123098-1 | Makita 123098-1 Wheel Cover 115AK Assembly for BGA450 |
| 29 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 30 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 31 | 631714-6 | Makita 631714-6 LED CIRCUIT, GA400D |
| 32 | 638627-2 | Makita 638627-2 Yoke Unit for GA452D DGA450 BGA450 BGA452 6319 6319D 6339 |
| 33 | 638921-2 | Makita 638921-2 638448-2 Brush Holder BGA452 BGD800/801 BJS100/101/161 |
| 34 | 863434-6 | |
| 35 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 36 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 37 | 187928-0 | |
| 38 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 39 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 40 | 620242-6 | |
| 41 | 643867-9 | Makita 643867-9 TERMINAL |
| 42 | 187928-0 | |
| 43 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 44 | 643954-4 | Makita 643954-4 Holder Cap for BGA452 GA452D |
| 45 | 419518-4 | Makita 419518-4 Holder Cap Cover for BPJ140 BPJ180 GA452D |
