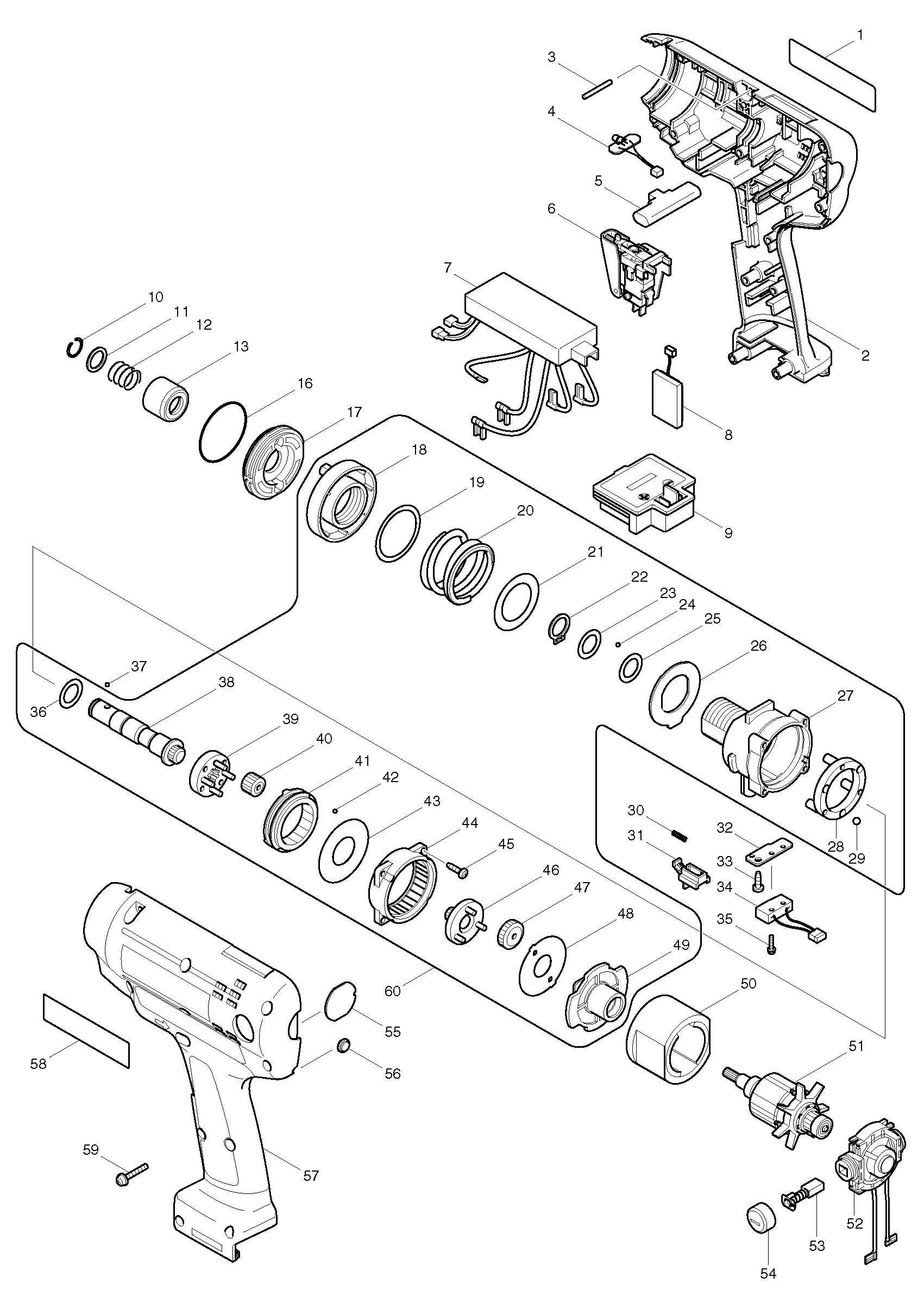

Sheet 1: Makita BFT120F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 850069-2 | |
| 2 | 183556-9 | |
| 3 | 256176-3 | Makita 256176-3 PIN 2.5 |
| 4 | 631513-6 | Makita 631513-6 LED CIRCUIT, BFT040F |
| 5 | 417511-2 | Makita 417511-2 F/R CHANGE LEVER |
| 6 | 650536-5 | Makita 650536-5 SWITCH C3Z-5-01, BFT040F |
| 7 | 631522-5 | |
| 8 | 631514-4 | Makita 631514-4 BUZZER CIRCUIT, BFT040F |
| 9 | 643800-1 | Makita 643800-1 TERMINAL, BFT040F |
| 10 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 11 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 12 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 13 | 162218-2 | Makita 162218-2 SLEEVE |
| 16 | 213510-0 | Makita 213510-0 O-RING 36, BO4555 |
| 17 | 418047-4 | |
| 18 | 418048-2 | |
| 19 | 253356-2 | Makita 253356-2 THIN WASHER 30 |
| 20 | 233365-7 | |
| 21 | 253355-4 | Makita 253355-4 THIN WASHER 24 |
| 22 | 961072-9 | Makita 961072-9 RETAINING RING (EXT) S-12, TD020D |
| 23 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 24 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 25 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 26 | 345289-6 | |
| 27 | 153505-0 | |
| 28 | 324311-2 | |
| 29 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 30 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 31 | 418051-3 | |
| 32 | 345296-9 | |
| 33 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 34 | 638184-0 | Makita 638184-0 SWITCH UNIT, BFL |
| 35 | 265114-4 | Makita 265114-4 PAN HEAD SCREW M2,3X10 |
| 36 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 37 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 38 | 324294-6 | |
| 39 | 153509-2 | |
| 40 | 227063-3 | |
| 41 | 227066-7 | |
| 42 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 43 | 267225-1 | Makita 267225-1 FLAT WASHER 18 |
| 44 | 418059-7 | |
| 45 | 265893-4 | Makita 265893-4 TAPPING SCREW BT 3*12, LH1040F |
| 46 | 153508-4 | |
| 47 | 227059-4 | |
| 48 | 267738-2 | Makita 267738-2 LOCK WASHER |
| 49 | 418045-8 | |
| 50 | 638191-3 | Makita 638191-3 YOKE UNIT, BFT040F |
| 51 | 619107-7 | |
| 52 | 638195-5 | Makita 638195-5 ENDBELL COMPLETE, BFT040F |
| 53 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 54 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 55 | 345293-5 | |
| 56 | 416764-0 | Makita 416764-0 LENZ |
| 57 | 183556-9 | |
| 58 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 59 | 911038-9 | Makita 911038-9 PAN HEAD SCREW M3X20 |
