Makita BFT081F
Makita BFT081F: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BFT081F: 60 positions on 1 sheet

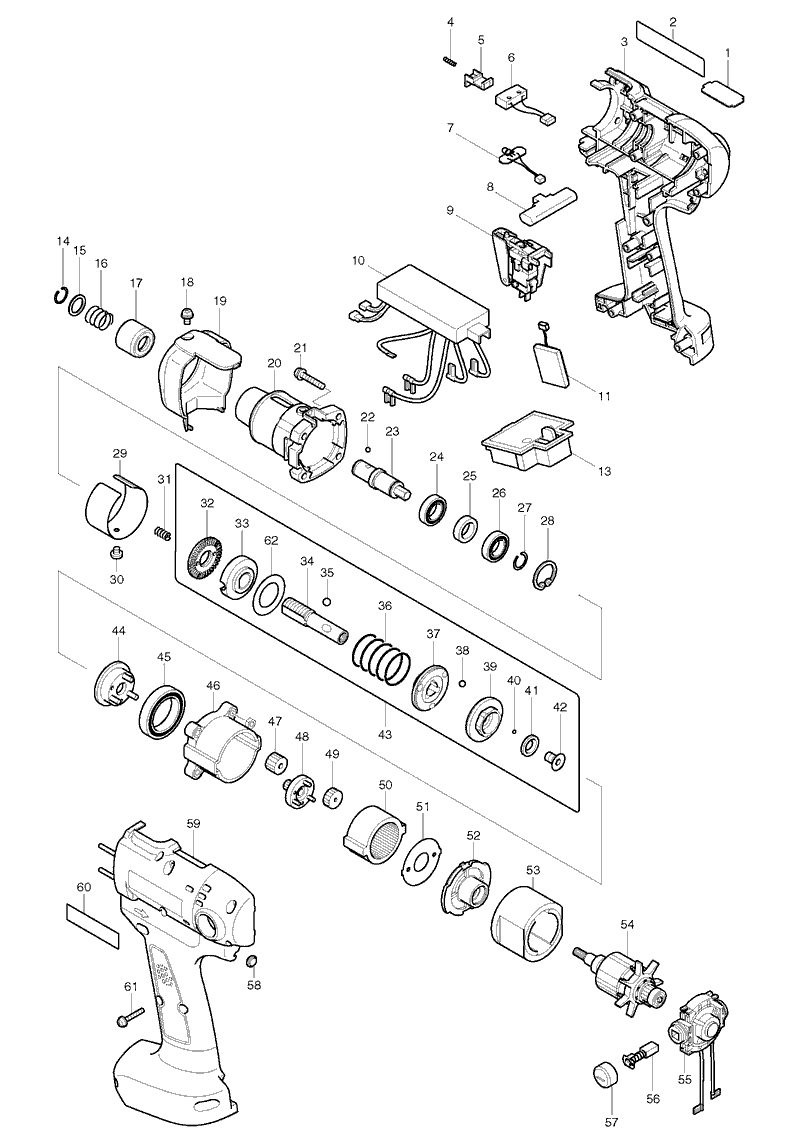

Sheet 1: Makita BFT081F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 345646-8 | |
| 2 | 861581-7 | |
| 3 | 183679-3 | |
| 4 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 5 | 418002-6 | Makita 418002-6 SWITCH LEVER, BFT040F |
| 6 | 638274-9 | Makita 638274-9 SWITCH UNIT, BFT040F |
| 7 | 631513-6 | Makita 631513-6 LED CIRCUIT, BFT040F |
| 8 | 417511-2 | Makita 417511-2 F/R CHANGE LEVER |
| 9 | 650536-5 | Makita 650536-5 SWITCH C3Z-5-01, BFT040F |
| 10 | 631559-2 | Makita 631559-2 CONTROLERBFT081 |
| 11 | 631514-4 | Makita 631514-4 BUZZER CIRCUIT, BFT040F |
| 13 | 643983-7 | Makita 643983-7 TERMINAL BDF430F |
| 14 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 15 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 16 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 17 | 162218-2 | Makita 162218-2 SLEEVE |
| 18 | 265171-2 | Makita 265171-2 PAN HEAD SCREW M4X8 |
| 19 | 418289-0 | Makita 418289-0 CLUTCH CASE COVER, BFT040F |
| 20 | 317694-7 | Makita 317694-7 CLUTCH CASE, BFT040F |
| 21 | 265145-3 | Makita 265145-3 PAN HEAD SCREW M4X22, BFL |
| 22 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 23 | 324377-2 | Makita 324377-2 SPINDLE M, BFT040F |
| 24 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 25 | 257011-8 | Makita 257011-8 RING 12 |
| 26 | 211136-2 | Makita 211136-2 BALL BEARING 6801LLB |
| 27 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 28 | 962111-8 | Makita 962111-8 RETAINING RING R-21, BFT040F |
| 29 | 345350-9 | Makita 345350-9 RING 38H |
| 30 | 265127-5 | Makita 265127-5 PAN HEAD SCREW M4X4 |
| 31 | 233019-6 | Makita 233019-6 COMPRESSION SPRING 5, BFT040F |
| 32 | 324834-0 | Makita 324834-0 LOCK NUT M12, BFT040F |
| 33 | 158408-3 | Makita 158408-3 ADJUST RING COMPLBFT040F |
| 34 | 324296-2 | Makita 324296-2 SPINDLE, BFT040F |
| 35 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 36 | 233384-3 | Makita 233384-3 COMPRESSION SPRING 19D |
| 37 | 223146-7 | Makita 223146-7 CAM D, BFT040F |
| 38 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 39 | 223139-4 | Makita 223139-4 CAM A, BFL |
| 40 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 41 | 267247-1 | Makita 267247-1 FLAT WASHER 7, BFT040F |
| 42 | 266305-0 | Makita 266305-0 TORX C.S.HEAD SCREW M5X10 |
| 44 | 153443-6 | Makita 153443-6 CARRIER COMPLETE A, BFT040F |
| 45 | 211375-4 | Makita 211375-4 BALL BEARING 6805LLB, 6220D |
| 46 | 418004-2 | Makita 418004-2 GEAR CASE, BFT040F |
| 47 | 227050-2 | Makita 227050-2 SPUR GEAR 13 FOR, BFL080F |
| 48 | 153446-0 | Makita 153446-0 SPUR GEAR 20 COMPL, BFL |
| 49 | 227051-0 | Makita 227051-0 SPUR GEAR 19, BFL |
| 50 | 227048-9 | Makita 227048-9 INTERNAL GEAR 47, BFT040F |
| 51 | 267774-8 | Makita 267774-8 LOCK WASHER, BFT040F |
| 52 | 418003-4 | Makita 418003-4 MOTOR BRACKET, BFT040F |
| 53 | 638191-3 | Makita 638191-3 YOKE UNIT, BFT040F |
| 54 | 619129-7 | Makita 619129-7 ARMATURE |
| 55 | 638195-5 | Makita 638195-5 ENDBELL COMPLETE, BFT040F |
| 56 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 57 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 58 | 416764-0 | Makita 416764-0 LENZ |
| 59 | 183679-3 | |
| 60 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 61 | 265095-2 | Makita 265095-2 PAN HEAD SCREW M3X20 |
| 62 | 267276-4 | Makita 267276-4 FLAT WASHER 18, BFT040F |
