All parts of Makita BFS450: 45 positions on 1 sheet

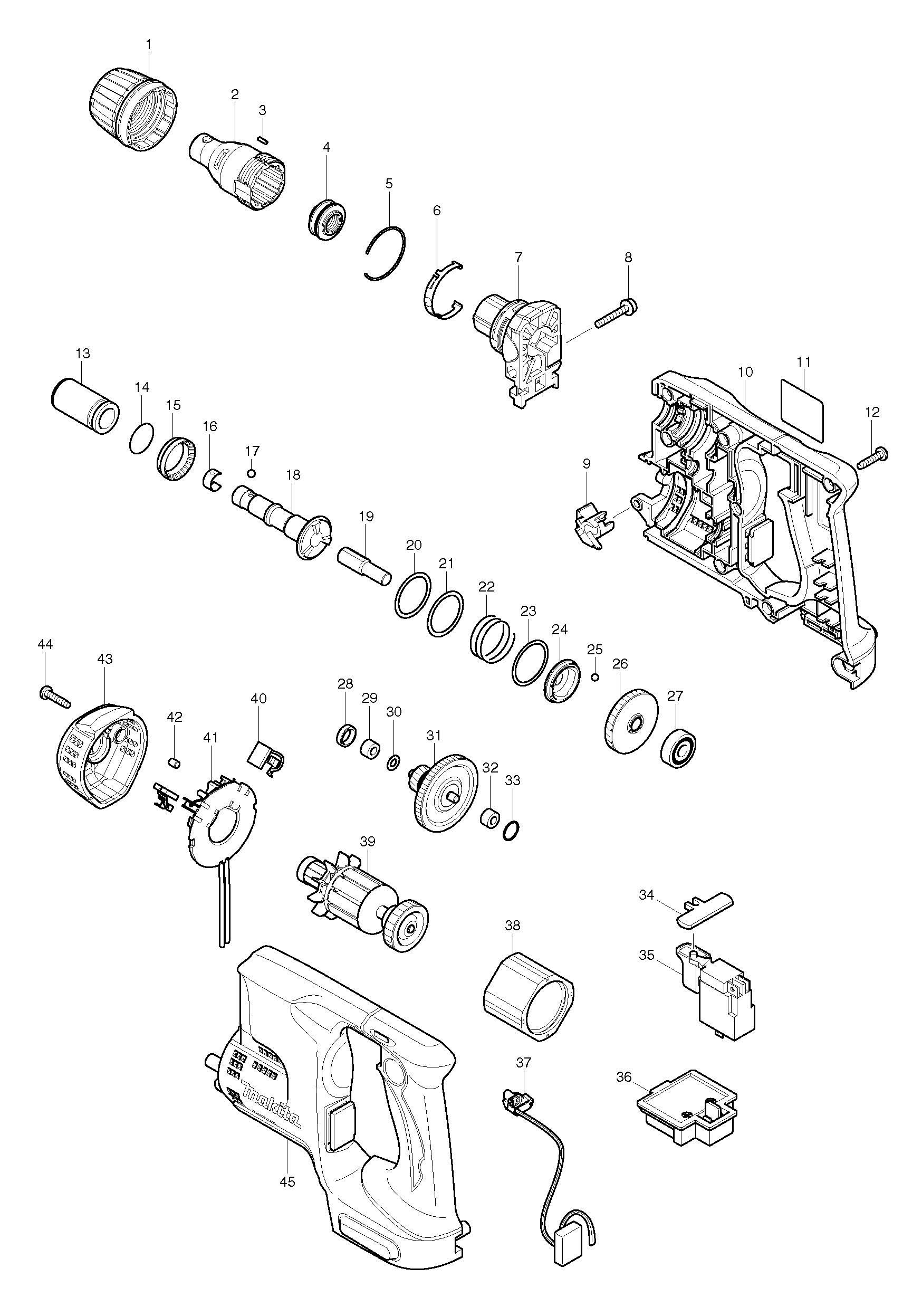

Sheet 1: Makita BFS450 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 450691-1 | Makita 450691-1 LOCK RINGBFS440 |
| 2 | 158754-4 | Makita 158754-4 LOCATOR S COMPLETEBFS440 |
| 3 | 424133-1 | Makita 424133-1 BRAKE PINBFS440 |
| 4 | 424134-9 | Makita 424134-9 DUST SEAL RINGBFS440 |
| 5 | 233967-9 | Makita 233967-9 RING SPRING 33BFS440 |
| 6 | 232245-4 | Makita 232245-4 LEAF SPRING, FS440D |
| 7 | 158755-2 | Makita 158755-2 LOCATOR BASE COMPLETBFS440 |
| 8 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 9 | 450689-8 | Makita 450689-8 LIGHT HOLDERBFS440 |
| 10 | 188557-2 | Makita 188557-2 HOUSING SET 18V 8ABFR550,750 |
| 11 | 865344-3 | |
| 12 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 13 | 214174-3 | Makita 214174-3 PLANE BEARING 14, BJS130 |
| 14 | 213262-3 | Makita 213262-3 O RING 18 |
| 15 | 421927-5 | Makita 421927-5 SLEEVE 20, BFR440 |
| 16 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 17 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 18 | 324925-7 | Makita 324925-7 SPINDLEBFS440 |
| 19 | 256509-2 | Makita 256509-2 SHOLDER PIN 8-10BFS440 |
| 20 | 267331-2 | Makita 267331-2 FLAT WASHER 25, BFR440 |
| 21 | 267331-2 | Makita 267331-2 FLAT WASHER 25, BFR440 |
| 22 | 234017-3 | Makita 234017-3 COMPRESSION SPRING 25, BFR440 |
| 23 | 267332-0 | Makita 267332-0 FLAT WASHER 26, BFR440 |
| 24 | 223169-5 | Makita 223169-5 ,CLUTCH CAM C6842 |
| 25 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 26 | 226670-9 | Makita 226670-9 HELICAL GEAR 48, BFR540 |
| 27 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 28 | 165115-1 | Makita 165115-1 RUBBER SLEEVE 10 |
| 29 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 30 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 31 | 154937-4 | Makita 154937-4 GEAR COMPLETE, BFR440 |
| 32 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 33 | 213055-8 | Makita 213055-8 O RING 10 |
| 34 | 419304-3 | Makita 419304-3 F/R CHANGE LEVER, BFR440 |
| 35 | 650603-6 | Makita 650603-6 Switch TG513SBA-1 for BFS440 BFS450 DFS450 |
| 36 | 643812-4 | Makita 643812-4 TERMINAL |
| 37 | 631818-4 | Makita 631818-4 LIGHT CIRCUITBFS440 |
| 38 | 638426-2 | Makita 638426-2 Yoke Unit for BJS130 BFS450 BFR750 LXSF01 |
| 39 | 619216-2 | Makita 619216-2 Armature Ass'y 18V BFR540 BFR550 BFR750 BFS450 |
| 40 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 41 | 638433-5 | Makita 638433-5 BRUSH HOLDER COMPLETE, FR440D |
| 42 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 43 | 450692-9 | Makita 450692-9 FRONT COVERBFS440 |
| 44 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 45 | 188557-2 | Makita 188557-2 HOUSING SET 18V 8ABFR550,750 |
