Makita BFS441
Makita BFS441: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BFS441: 36 positions on 1 sheet

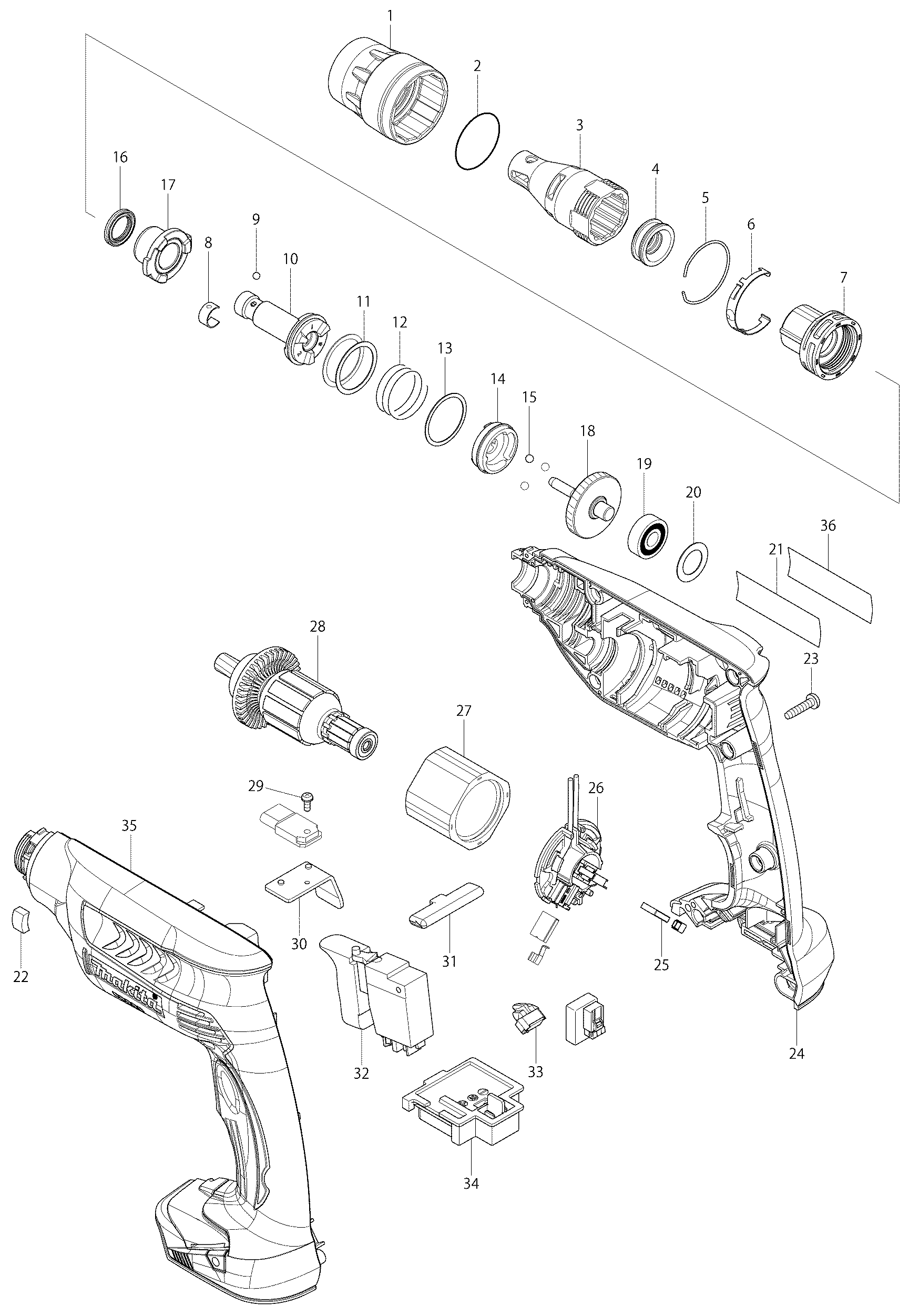

Sheet 1: Makita BFS441 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 450881-6 | Makita 450881-6 LOCK RING, FS4300 |
| 2 | 424235-3 | Makita 424235-3 SEAL RING 30, FS6300 |
| 3 | 158875-2 | Makita 158875-2 Locator S Complete, FS4300 |
| 4 | 424163-2 | Makita 424163-2 DUST SEAL SLEEVE, FS4300 |
| 5 | 233974-2 | Makita 233974-2 RING SPING 33, FS4300 |
| 6 | 232245-4 | Makita 232245-4 LEAF SPRING, FS440D |
| 7 | 141100-8 | Makita 141100-8 LOCATOR BASE CPL. |
| 8 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 9 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 10 | 140771-8 | Makita 140771-8 SPINDLE 125S CPL. |
| 11 | 267331-2 | Makita 267331-2 FLAT WASHER 25, BFR440 |
| 12 | 234017-3 | Makita 234017-3 COMPRESSION SPRING 25, BFR440 |
| 13 | 267332-0 | Makita 267332-0 FLAT WASHER 26, BFR440 |
| 14 | 223170-0 | Makita 223170-0 CLUTCH CAM 125S, FS4300 |
| 15 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 16 | 213184-7 | Makita 213184-7 X RING 14, FS2200 |
| 17 | 140773-4 | Makita 140773-4 BEARING COMPLETE |
| 18 | 140772-6 | Makita 140772-6 GEAR COMPLETE |
| 19 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 20 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 21 | 869434-4 | Makita 869434-4 BFS441 NAME PLATE |
| 22 | 423413-2 | Makita 423413-2 RUBBER PLATE, FS4200 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 187091-9 | Makita 187091-9 HOUSING SET |
| 25 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 26 | 638868-0 | Makita 638868-0 BRUSH HOLDER CPL. |
| 27 | 638426-2 | Makita 638426-2 Yoke Unit for BJS130 BFS450 BFR750 LXSF01 |
| 28 | 619275-6 | Makita 619275-6 Armature 14,4 V for BFS441 |
| 29 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 30 | 689150-0 | Makita 689150-0 HEAT SINK, DF452D |
| 31 | 452516-5 | Makita 452516-5 F/R CHANGE LEVER, FS451D |
| 32 | 638869-8 | Makita 638869-8 SWITCH UNIT |
| 33 | 620029-6 | Makita 620029-6 LIGHT CIRCUIT, BTD132 |
| 34 | 643854-8 | Makita 643854-8 TERMINAL, MUH300D |
| 35 | 187091-9 | Makita 187091-9 HOUSING SET |
| 36 | 892812-3 | Makita 892812-3 CLEAR LABEL |
