Makita BFS230F
Makita BFS230F: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BFS230F: 58 positions on 1 sheet

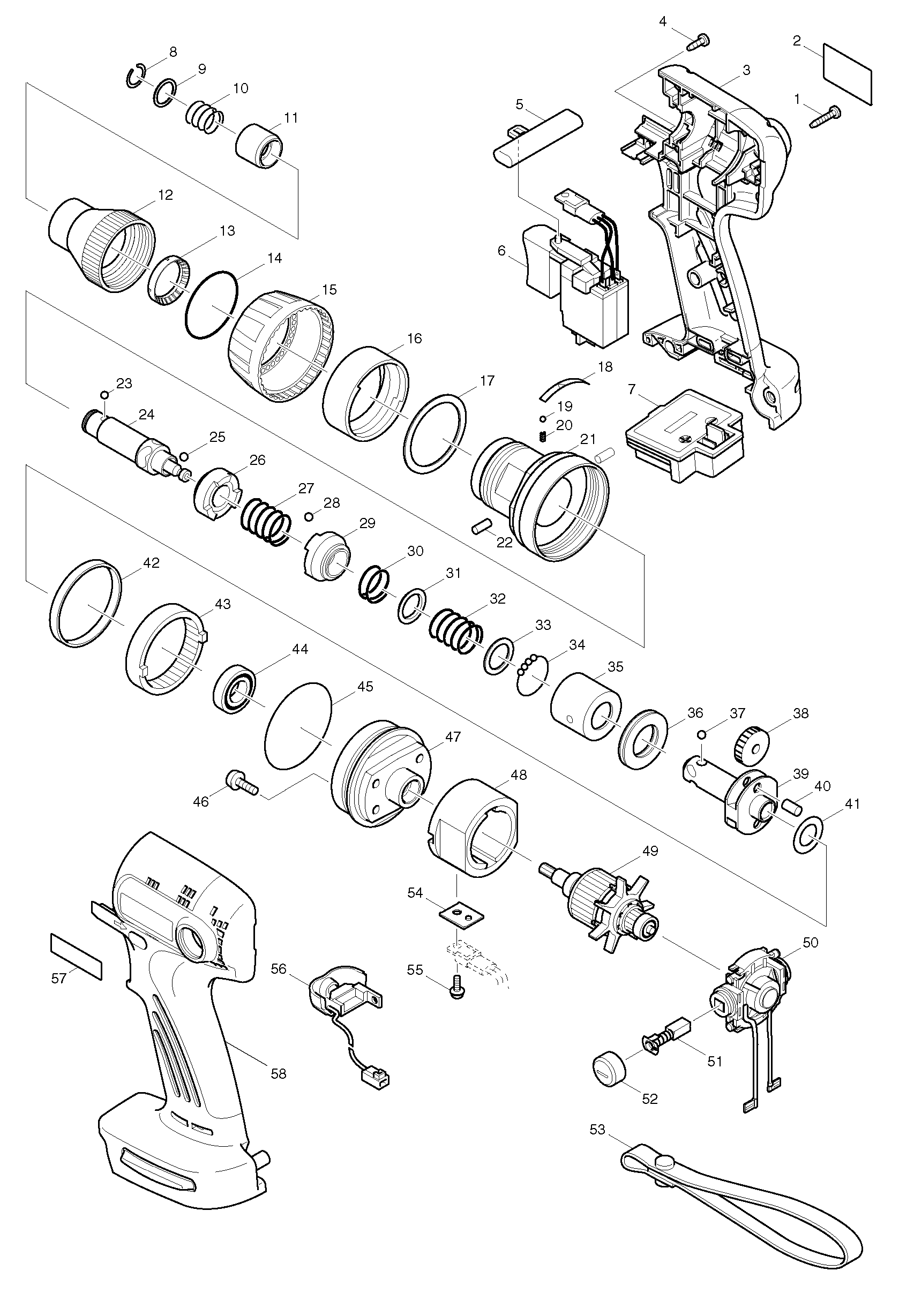

Sheet 1: Makita BFS230F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 2 | ||
| 3 | 183733-3 | Makita 183733-3 HOUSING SET FOR, BTD123F |
| 4 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 5 | 416079-5 | Makita 416079-5 Change Lever for 6213D |
| 6 | 650530-7 | Makita 650530-7 SWITCH C3LA-1A-TDL FOR TD123D |
| 7 | 643983-7 | Makita 643983-7 TERMINAL BDF430F |
| 8 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 9 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 10 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 11 | 324420-7 | Makita 324420-7 Sleeve for 6935FD |
| 12 | 153869-2 | Makita 153869-2 CLUTCH COVER COMPL, BFS230F |
| 13 | 421766-3 | Makita 421766-3 RING 20 |
| 14 | 213486-1 | Makita 213486-1 O RING 35 |
| 15 | 418661-6 | Makita 418661-6 ADJUST RING, BFS230F |
| 16 | 153871-5 | Makita 153871-5 RING 36 COMPLETE, BFS230F |
| 17 | 253806-7 | Makita 253806-7 FLAT WASHER 36, 6826 |
| 18 | 816815-3 | Makita 816815-3 INDICATION LABEL, BFS230F |
| 19 | 216014-1 | Makita 216014-1 STEEL BALL 3.2 |
| 20 | 233088-7 | Makita 233088-7 COMPRESSION SPRING 2, BFS230F |
| 21 | 317790-1 | Makita 317790-1 GEAR HOUSING, BFS230F |
| 22 | 268075-7 | Makita 268075-7 PIN 4, 6827 |
| 23 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 24 | 154631-8 | Makita 154631-8 SPINDLE D COMPL, BFS230F |
| 25 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 26 | 223149-1 | Makita 223149-1 CLUTCH CAM A, BFS230F |
| 27 | 233404-3 | Makita 233404-3 COMPRESSION SPRING 11, BFS230F |
| 28 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 29 | 223150-6 | Makita 223150-6 CLUTCH CAM B, BFS230F |
| 30 | 233410-8 | Makita 233410-8 COMPRESSION SPRING 16, BFS230F |
| 31 | 331678-1 | Makita 331678-1 COLLARED RING 15, BFS230F |
| 32 | 233403-5 | Makita 233403-5 COMPRESSION SPRING 14, BFS230F |
| 33 | 253837-6 | Makita 253837-6 FLAT WASHER 14, 6826 |
| 34 | 216014-1 | Makita 216014-1 STEEL BALL 3.2 |
| 35 | 324209-3 | Makita 324209-3 SLEEVE, 6827 |
| 36 | 212308-2 | Makita 212308-2 THRUST NEEDLE BEARING 203 |
| 37 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 38 | 227123-1 | Makita 227123-1 SPUR GEAR 24, BFS230F |
| 39 | 153948-6 | Makita 153948-6 SPINDLE B COMPL, BFS230F |
| 40 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 41 | 267212-0 | Makita 267212-0 FLAT WASHER 12, 6935FD |
| 42 | 257257-6 | Makita 257257-6 RING 43, BFS230F |
| 43 | 227121-5 | Makita 227121-5 INTERNAL GEAR 55, BFS230F |
| 44 | 211140-1 | Makita 211140-1 BALL BEARING 6901LLB, TD140D |
| 45 | 213620-3 | Makita 213620-3 O RING, 5704R |
| 46 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 47 | 317818-5 | Makita 317818-5 INTERNAL GEAR CASE, BFS230F |
| 48 | 638359-1 | Makita 638359-1 YORK UNIT, BFS230F |
| 49 | 619141-7 | Makita 619141-7 ARMATURE, BFS230F |
| 50 | 638156-5 | Makita 638156-5 END BELL COMPLETE, 6935FD |
| 51 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 52 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 53 | ||
| 54 | 689096-0 | Makita 689096-0 FET SPACER, 6935FD |
| 55 | 266170-7 | Makita 266170-7 TAPPING SCREW ST3X8 |
| 56 | 631610-8 | Makita 631610-8 LIGHT CIRCUIT, BFS230F |
| 57 | 819720-3 | Makita 819720-3 MAKITA LABEL |
| 58 | 183733-3 | Makita 183733-3 HOUSING SET FOR, BTD123F |
