Makita BFR440
Makita BFR440: exploded parts diagram, 1 sheet, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BFR440: 75 positions on 1 sheet

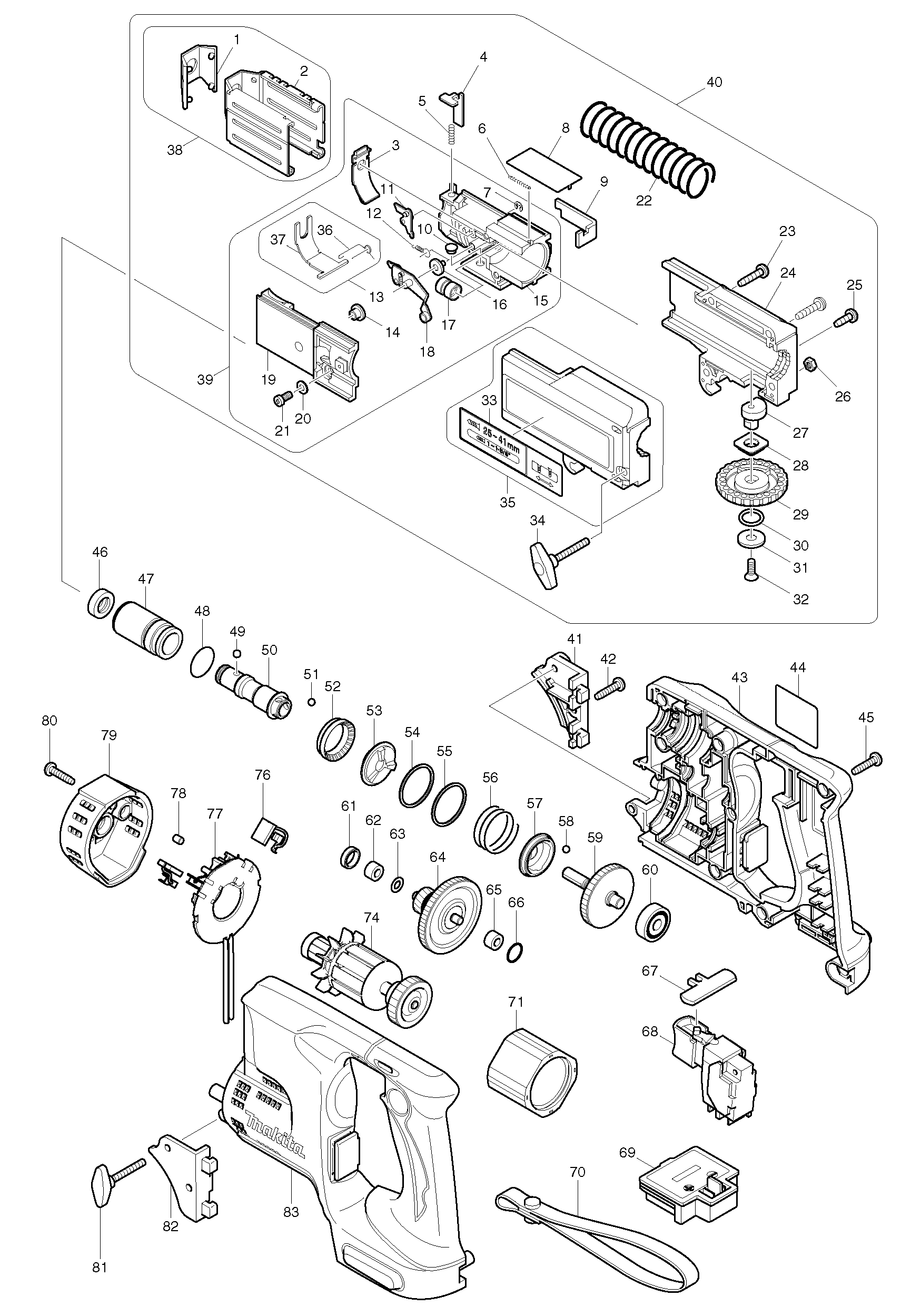

Sheet 1: Makita BFR440 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421617-0 | Makita 421617-0 CAP FOR 6833 |
| 2 | 344628-7 | Makita 344628-7 STOPPER BASE |
| 3 | TK00TSM105 | Makita TK00TSM105 DUST COVER TS-M105, BFR440 |
| 4 | 344625-3 | Makita 344625-3 LEVER |
| 5 | 233211-4 | Makita 233211-4 COMPRESSION SPRING 2 |
| 6 | TK00TSM135 | Makita TK00TSM135 SLIDE COVER SPRING TS-M13 |
| 7 | TK0ER02SCZ | Makita TK0ER02SCZ STOP RING 2 ER02SCZ, BFR440 |
| 8 | TK00TSM116 | Makita TK00TSM116 SLIDE PLATE TS-M116, BFR440 |
| 9 | TK00TSM115 | Makita TK00TSM115 STOPPER TS-M115, BFR440 |
| 10 | TK00TSM129 | Makita TK00TSM129 PIN TS-M129, BFR440 |
| 11 | TK00TSM052 | Makita TK00TSM052 STOPPER TS-M052, BFR440 |
| 12 | TK00TSM133 | Makita TK00TSM133 TENSION SPRING TS-M133, BFR440 |
| 14 | 267201-5 | Makita 267201-5 FLAT WASHER 6 6834 |
| 15 | TK00TSM103 | Makita TK00TSM103 FEEDER BOX TS-M122, BFR440 |
| 16 | TK00TSM122 | Makita TK00TSM122 BEARING TS-M122, BFR440 |
| 17 | 257687-1 | Makita 257687-1 SLEEVE 6 FOR 6833,6835d |
| 18 | TK00TSM056 | Makita TK00TSM056 LEVER TS-M056, BFR440 |
| 19 | TK00TSM104 | Makita TK00TSM104 BOX COVER COMPL TS-M104, BFR440 |
| 20 | TK00TSM144 | Makita TK00TSM144 FLAT WASHER M4X0.8 TS-M14 |
| 21 | TKP4012SCB | Makita TKP4012SCB PAN HEAD SCREW M4X12 P401 |
| 22 | 233209-1 | Makita 233209-1 COMPRESSION SPRING 21, 6833 |
| 23 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 24 | TK00TSM101 | Makita TK00TSM101 CASING R, BFR440 |
| 25 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 26 | TKHN204SCZ | Makita TKHN204SCZ HEX.NUT M4 HN204SCZ, BFR440 |
| 27 | 310091-6 | Makita 310091-6 SHIFTER PIN |
| 28 | 257686-3 | Makita 257686-3 SLEEVE 8 |
| 29 | 417056-0 | Makita 417056-0 DIAL 42 |
| 30 | 213105-9 | Makita 213105-9 O RING 11, 6409 |
| 31 | 267201-5 | Makita 267201-5 FLAT WASHER 6 6834 |
| 32 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 33 | TK00TSM147 | Makita TK00TSM147 LABEL TS-M147, BFR440 |
| 34 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 36 | TK00TSM134 | Makita TK00TSM134 TORSION SPRING TS-M134, BFR440 |
| 37 | TK00TSM110 | Makita TK00TSM110 RELEASE LEVER TS-M110, BFR440 |
| 41 | 188040-9 | Makita 188040-9 SCREW GUIDE SET |
| 42 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 43 | 188038-6 | Makita 188038-6 HOUSING SET, BFR440 |
| 44 | 862609-4 | |
| 45 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 46 | 421467-3 | Makita 421467-3 DUST COVER |
| 47 | 214173-5 | Makita 214173-5 PLANE BEARING 14, BFR440 |
| 48 | 213262-3 | Makita 213262-3 O RING 18 |
| 49 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 50 | 223160-3 | Makita 223160-3 SPINDLE, BFR440 |
| 51 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 52 | 421927-5 | Makita 421927-5 SLEEVE 20, BFR440 |
| 53 | 223155-6 | |
| 54 | 267301-1 | |
| 55 | 267301-1 | |
| 56 | 233451-4 | Makita 233451-4 COMPRESSION SPRING 25, BFR440 |
| 57 | 223156-4 | |
| 58 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 59 | 154844-1 | |
| 60 | 210030-5 | Makita 210030-5 BALL BEARING 627ZZ, MT811 |
| 61 | 165115-1 | Makita 165115-1 RUBBER SLEEVE 10 |
| 62 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 63 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
| 64 | 154937-4 | Makita 154937-4 GEAR COMPLETE, BFR440 |
| 65 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 66 | 213055-8 | Makita 213055-8 O RING 10 |
| 67 | 419304-3 | Makita 419304-3 F/R CHANGE LEVER, BFR440 |
| 68 | 650575-5 | Makita 650575-5 Switch TG513SBA for BFR750 BFR440D FR440D BFR440 |
| 69 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 70 | ||
| 71 | 638426-2 | Makita 638426-2 Yoke Unit for BJS130 BFS450 BFR750 LXSF01 |
| 74 | 619180-7 | Makita 619180-7 Armature for BFR440 BFR540 BFS440 |
| 76 | 194159-4 | Makita 194159-4 CARBON BRUSH CB-436, BTD130 |
| 77 | 638433-5 | Makita 638433-5 BRUSH HOLDER COMPLETE, FR440D |
| 78 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 79 | 419307-7 | Makita 419307-7 FRONT COVER, BFR440 |
| 80 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 81 | 265732-8 | Makita 265732-8 SCREW M4X28 FOR 6833 |
| 82 | 188040-9 | Makita 188040-9 SCREW GUIDE SET |
| 83 | 188038-6 | Makita 188038-6 HOUSING SET, BFR440 |
