Makita BFL120F
Makita BFL120F: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BFL120F: 60 positions on 1 sheet

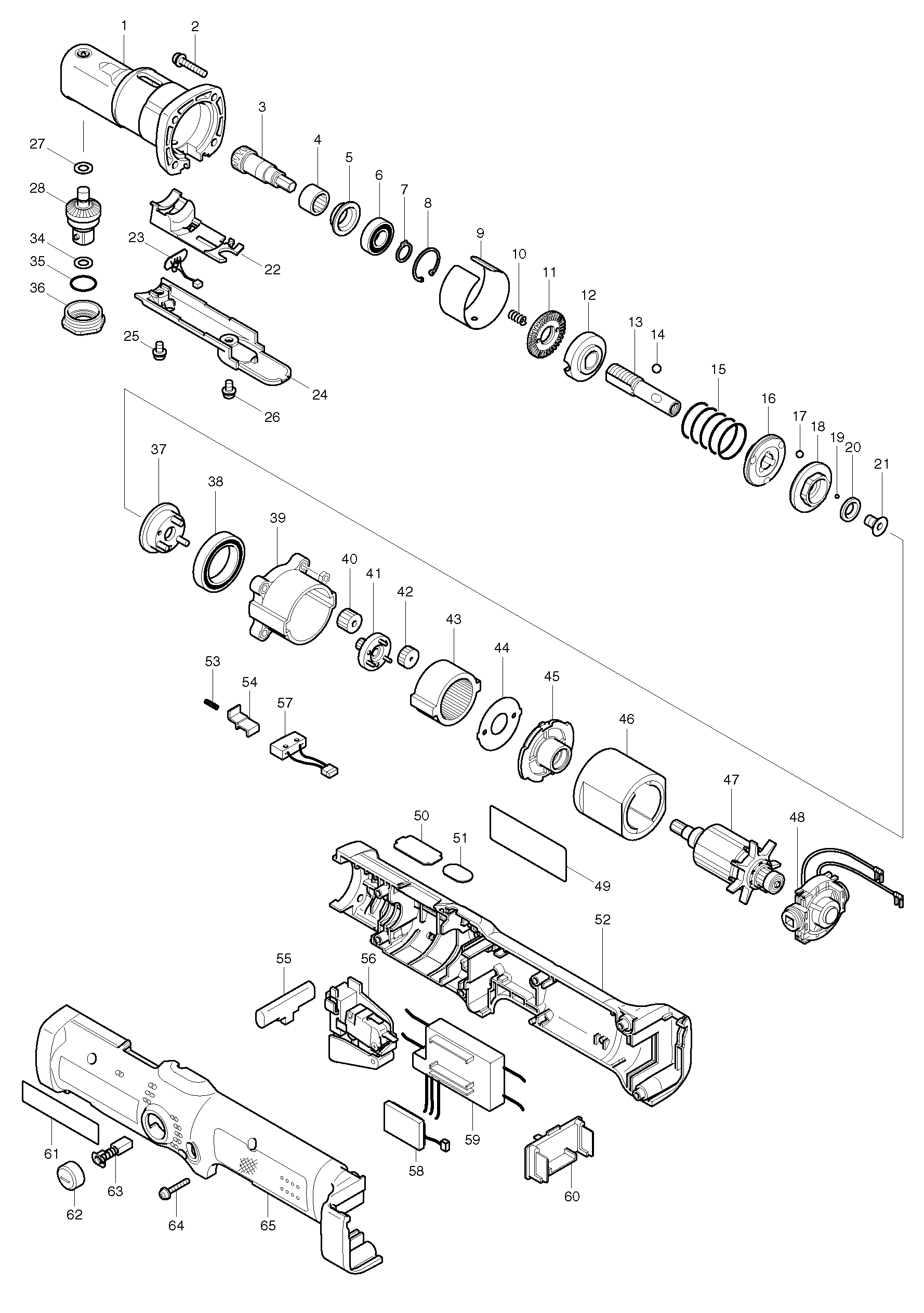

Sheet 1: Makita BFL120F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 154494-2 | Makita 154494-2 ANGLE HEAD COMPLETE, BFL121F |
| 2 | 265145-3 | Makita 265145-3 PAN HEAD SCREW M4X22, BFL |
| 3 | 227469-5 | Makita 227469-5 SPIRAL BEVEL GEAR 9, BFL |
| 4 | 212123-4 | Makita 212123-4 NEEDLE BEARING 1210 |
| 5 | 345281-2 | Makita 345281-2 SPACER, BFL |
| 6 | 210057-5 | Makita 210057-5 BALL BEARING 6900LLB |
| 7 | 961026-6 | Makita 961026-6 RETAINING RING S-10 |
| 8 | 962112-6 | Makita 962112-6 RETAINING RING R-22 |
| 9 | 345286-2 | Makita 345286-2 RING 38B, BFL |
| 10 | 233019-6 | Makita 233019-6 COMPRESSION SPRING 5, BFT040F |
| 11 | 324281-5 | Makita 324281-5 LOCK NUT M12, BFT040F |
| 12 | 153442-8 | Makita 153442-8 ADJUST RING COMPL, BFT040F |
| 13 | 324296-2 | Makita 324296-2 SPINDLE, BFT040F |
| 14 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 15 | 233357-6 | Makita 233357-6 COMPRESSION SPRING 19B, BFL |
| 16 | 223140-9 | Makita 223140-9 CAM B, BFL |
| 17 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 18 | 223139-4 | Makita 223139-4 CAM A, BFL |
| 19 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 20 | 267247-1 | Makita 267247-1 FLAT WASHER 7, BFT040F |
| 21 | 266305-0 | Makita 266305-0 TORX C.S.HEAD SCREW M5X10 |
| 22 | 418011-5 | Makita 418011-5 LIGHT HOLDER, BFL |
| 23 | 631513-6 | Makita 631513-6 LED CIRCUIT, BFT040F |
| 24 | 418005-0 | Makita 418005-0 LIGHT COVER, BFL |
| 25 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 26 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 27 | 253726-5 | Makita 253726-5 FLAT WASHER 6, LS0713 |
| 28 | 153930-5 | Makita 153930-5 SPINDLE A COMPL, BFL |
| 34 | 253842-3 | Makita 253842-3 FLAT WASHER 14, HR2410 |
| 35 | 213162-7 | Makita 213162-7 O RING 14 |
| 36 | 285707-1 | Makita 285707-1 BEARING RETAINER 14-23, BFL |
| 37 | 153444-4 | Makita 153444-4 CARRIER COMPLETE B, BFL |
| 38 | 211375-4 | Makita 211375-4 BALL BEARING 6805LLB, 6220D |
| 39 | 418004-2 | Makita 418004-2 GEAR CASE, BFT040F |
| 40 | 227052-8 | Makita 227052-8 SPUR GEAR 18, BFL |
| 41 | 153447-8 | Makita 153447-8 SPUR GEAR 9 COMPL A, BFL |
| 42 | 227049-7 | Makita 227049-7 SPUR GEAR 18, BFL |
| 43 | 227048-9 | Makita 227048-9 INTERNAL GEAR 47, BFT040F |
| 44 | 267774-8 | Makita 267774-8 LOCK WASHER, BFT040F |
| 45 | 418003-4 | Makita 418003-4 MOTOR BRACKET, BFT040F |
| 46 | 638183-2 | Makita 638183-2 YOKE UNIT, BFL |
| 47 | 619094-0 | Makita 619094-0 ARMATURE, BFL |
| 48 | 687138-4 | Makita 687138-4 ENDBELL COMPLETE, BFL |
| 49 | 853879-6 | Makita 853879-6 NAME PLATE, BFL120F |
| 50 | 345283-8 | |
| 51 | 418001-8 | Makita 418001-8 LENS, BFL |
| 52 | 183509-8 | Makita 183509-8 HOUSING SET, BFL |
| 53 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 54 | 418002-6 | Makita 418002-6 SWITCH LEVER, BFT040F |
| 55 | 417511-2 | Makita 417511-2 F/R CHANGE LEVER |
| 56 | 650536-5 | Makita 650536-5 SWITCH C3Z-5-01, BFT040F |
| 57 | 638184-0 | Makita 638184-0 SWITCH UNIT, BFL |
| 58 | 631514-4 | Makita 631514-4 BUZZER CIRCUIT, BFT040F |
| 59 | 631511-0 | Makita 631511-0 CONTROLLER, BFL |
| 60 | 643800-1 | Makita 643800-1 TERMINAL, BFT040F |
| 61 | 819003-1 | Makita 819003-1 MAKITA LOGO LABEL, 5007NB |
| 62 | 643933-2 | Makita 643933-2 HOLDER CAP, 6935FD |
| 63 | 193466-2 | Makita 193466-2 CARBON BRUSH CB-434 |
| 64 | 265095-2 | Makita 265095-2 PAN HEAD SCREW M3X20 |
| 65 | 183509-8 | Makita 183509-8 HOUSING SET, BFL |
