Makita BDF458
Makita BDF458: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BDF458: 28 positions on 1 sheet

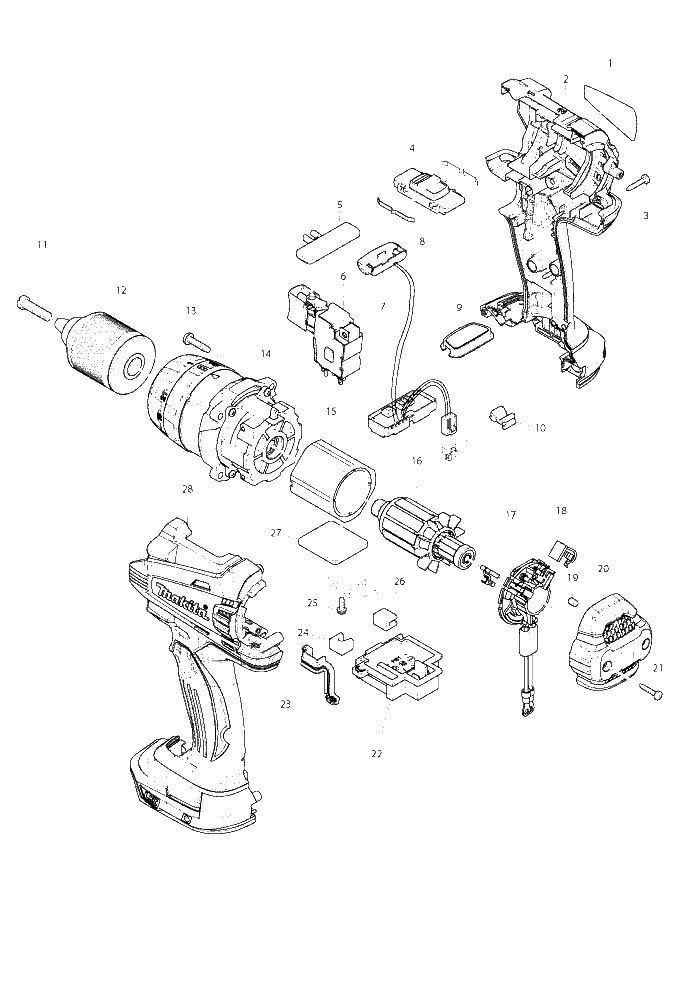

Sheet 1: Makita BDF458 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 897139-6 | |
| 2 | 187430-3 | Makita 187430-3 Housing Set for DF458D BDF448 BDF458 BHP448 BHP458 DDF448 |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 126100-9 | Makita 126100-9 SPEED CHANGE LEVER ASSEMBLY |
| 5 | 419250-0 | Makita 419250-0 Forward Reverse Change Lever HP451D BDF343 BDF441 |
| 6 | 650724-4 | Makita 650724-4 Switch DHP458 BDF448 BDF458 BHP448 BHP458 DDF458 |
| 7 | 620138-1 | Makita 620138-1 LIGHT CIRCUIT, BDF458D |
| 8 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 9 | 140963-9 | Makita 140963-9 SWITCH PLATE COMPLETE, TD134D |
| 10 | 424476-1 | Makita 424476-1 CUSHION |
| 11 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 12 | 766015-4 | Makita 766015-4 Keyless Drill Chuck 13 for BHP448 |
| 13 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 14 | 126098-0 | Makita 126098-0 Gear Assembly for DF458 BDF448 BDF458 DDF448 DDF458 |
| 15 | 638989-8 | Makita 638989-8 Yoke Unit for BDF458D BHP458 DHP458 DF458D |
| 16 | 619301-1 | Old number 619301-1 |
| 17 | 638991-1 | Old number 638991-1 |
| 18 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 19 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 20 | 453394-6 | Makita 453394-6 Rear Cover BDF448 BHP458 BDF458 BHP448 DHP448 DHP458 |
| 21 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 22 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 23 | 424430-5 | Makita 424430-5 SEAL, TD134D |
| 24 | 423422-1 | Makita 423422-1 SPONGE A, TD134D |
| 25 | 911013-5 | Makita 911013-5 PAN HEAD SCREW M3X10, DF456D |
| 26 | 423423-9 | Makita 423423-9 SPONGE B, TD134D |
| 27 | 689176-2 | Makita 689176-2 HEAT SINK, DF448D |
| 28 | 187430-3 | Makita 187430-3 Housing Set for DF458D BDF448 BDF458 BHP448 BHP458 DDF448 |
