Makita BDF440: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BDF440: 23 positions on 1 sheet

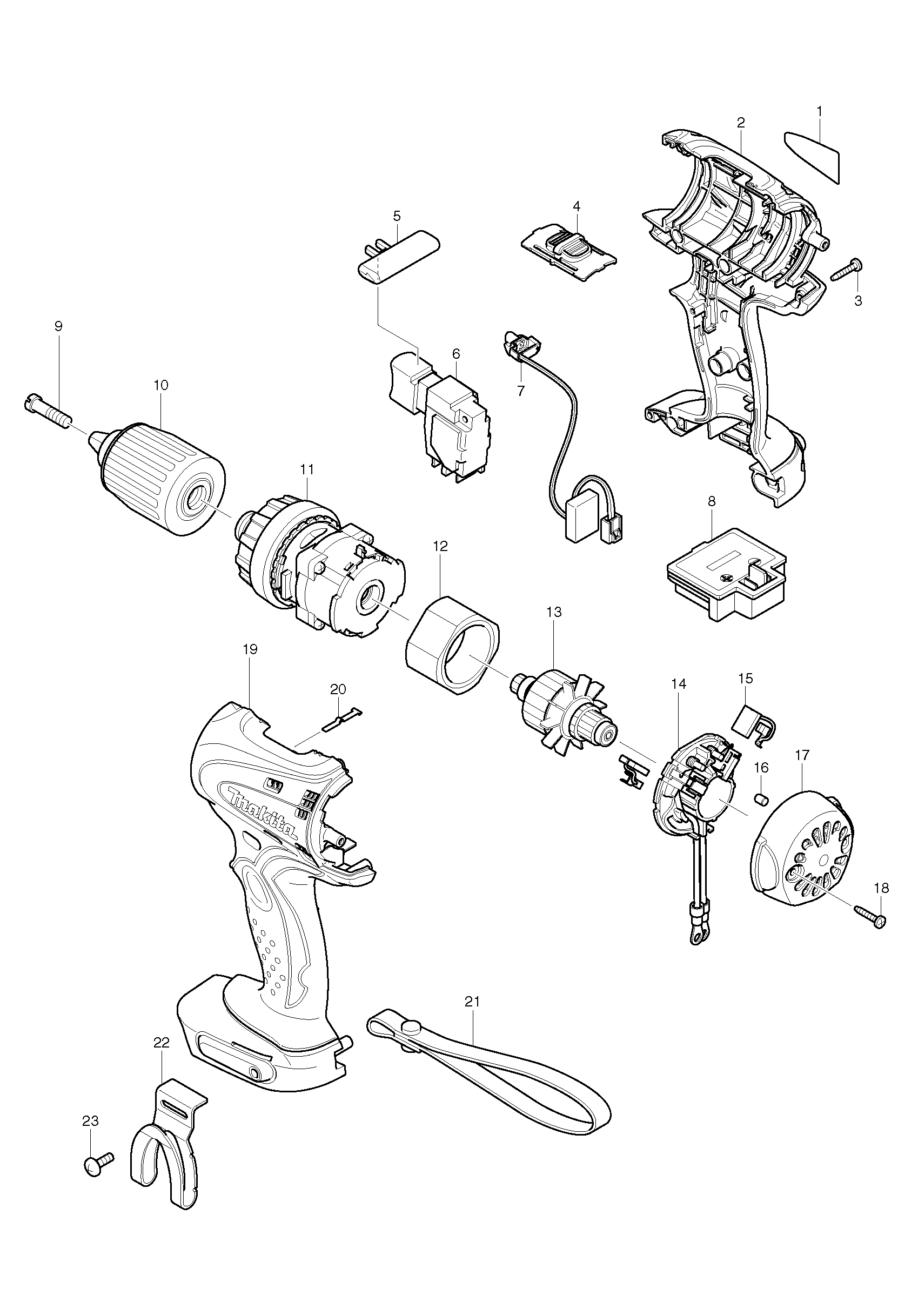

Sheet 1: Makita BDF440 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 861664-3 | Makita 861664-3 NAME PLATE, BDF440 |
| 2 | 188000-1 | Makita 188000-1 HOUSING SET, BDF440 |
| 3 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 4 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 5 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 6 | 650569-0 | Makita 650569-0 Switch TG553FSB-3 for BHP440 BHP450 BDF440 BDF450 |
| 7 | 631631-0 | Makita 631631-0 LIGHT CIRCUIT, BTD130 |
| 8 | 643811-6 | Makita 643811-6 Terminal 14.4v for BDF440 BDF441 BDA340 BUC121 |
| 9 | 251464-3 | Makita 251464-3 Flat Head Screw M6X22 for BDF440 BDF450 BHP440 BHP450 |
| 10 | 763175-3 | |
| 11 | 125182-8 | Makita 125182-8 Gear Assembly BDF430 BDF440 BDF450 BDF430F |
| 12 | 638423-8 | Makita 638423-8 Yoke Unit for BDF440 BDF445d BDF450 DHP440 |
| 13 | 619161-1 | Makita 619161-1 Armature for BTD123F BDF440 BHP440 |
| 14 | 638424-6 | Makita 638424-6 Brush Holder for DF440D BTP140 BDF440 BDF450 BHP440 BHP450 |
| 15 | 194159-4 | Makita 194159-4 CARBON BRUSH CB-436, BTD130 |
| 16 | 263032-0 | Makita 263032-0 Rubber Pin 4 Lxph03 |
| 17 | 418981-8 | Makita 418981-8 RearCover for BDF440 TD140D |
| 18 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 19 | 188000-1 | Makita 188000-1 HOUSING SET, BDF440 |
| 20 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 21 | ||
| 22 | 324553-8 | Makita 324553-8 HOOK, BTD130 |
| 23 | 251314-2 | Makita 251314-2 Truss Head Screw M4*12 for TD140D |
