Makita BDA351
Makita BDA351: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BDA351: 38 positions on 1 sheet

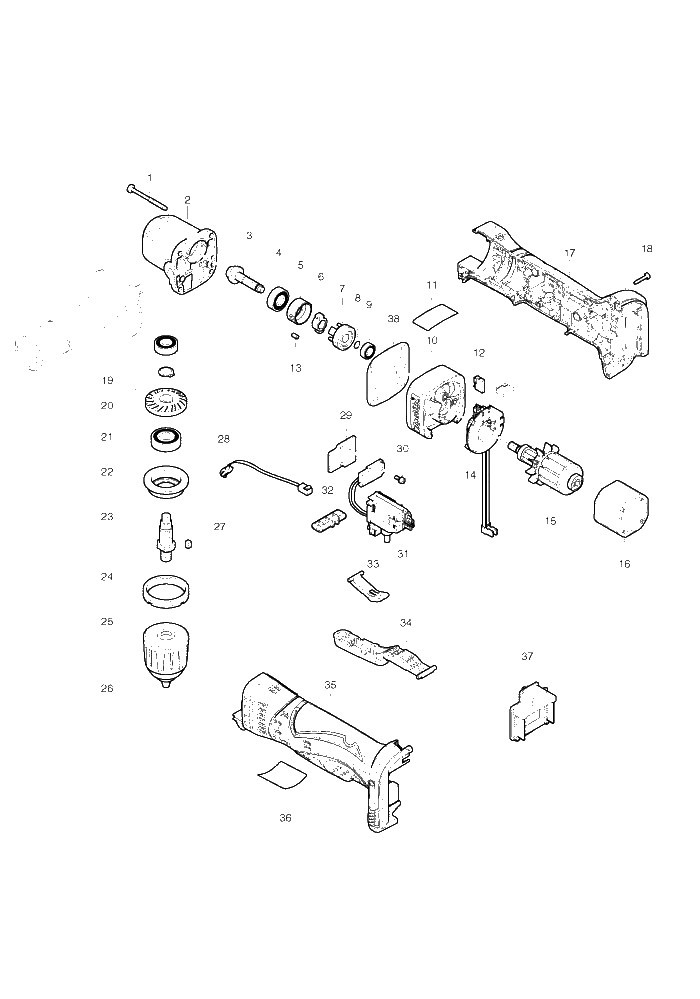

Sheet 1: Makita BDA351 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 2 | 317634-5 | Makita 317634-5 GEAR HOUSING ,DA3011/BDA |
| 3 | 227538-2 | Makita 227538-2 SPIRAL BEVEL GEAR 10 BDA341/3 |
| 4 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 5 | 324930-4 | Makita 324930-4 LOCK RING ,BDA341 |
| 6 | 331647-2 | Makita 331647-2 LOCK CAM, DDA351 |
| 7 | 227221-1 | Makita 227221-1 Spur Gear 29 for BDA341, BDA351, DDA351 |
| 8 | 231956-8 | Makita 231956-8 RING SPRING 6 |
| 9 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 10 | 450607-6 | Makita 450607-6 GEAR HOUSING COVER, BDA340 |
| 11 | ||
| 12 | 194427-5 | Makita 194427-5 Carbon Brushes CB440 for BDF440 BDF441 BHP451 DF451D |
| 13 | 268100-4 | Makita 268100-4 PIN 3,5 ,BDA341/351 |
| 14 | 539202-6 | Makita 539202-6 BRUSH HOLDER COMPLETE, BDA340/350, TEC. 91094 |
| 15 | 619234-0 | Makita 619234-0 Armature for BDA350 |
| 16 | 638613-3 | Makita 638613-3 YOKE UNIT, DF444D |
| 17 | 187130-5 | Makita 187130-5 HOUSING SET, BDA350, TEC. 91094 |
| 18 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 19 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 20 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 21 | 227537-4 | Makita 227537-4 SPIRAL BEVEL GEAR 26 BDA341/5 |
| 22 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 23 | 317633-7 | Makita 317633-7 BEARING BOX, DA3011/BDA |
| 24 | 324329-3 | Makita 324329-3 SPINDLE ,DA3011/BDA |
| 25 | 285842-5 | Makita 285842-5 BEARING RETAINER 36-43 |
| 26 | 766005-7 | |
| 27 | 254201-4 | Makita 254201-4 KEY 4 |
| 28 | 631814-2 | Makita 631814-2 LED CIRCUITBDA340 |
| 29 | 689098-6 | Makita 689098-6 HEAT SINK |
| 30 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 31 | 632B90-3 | Makita 632B90-3 SWITCH UNIT |
| 32 | 450610-7 | Makita 450610-7 F/R CHANGE LEVER, BDA340 |
| 33 | 450609-2 | Makita 450609-2 LINK, BDA340 |
| 34 | 450608-4 | Makita 450608-4 SWITCH LEVER, BDA340 |
| 35 | 187130-5 | Makita 187130-5 HOUSING SET, BDA350, TEC. 91094 |
| 36 | 865498-6 | |
| 37 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 38 | 418036-9 | Makita 418036-9 GASKET DA3010F |
