Makita BCX2510

Makita BCX2510: exploded parts diagram, 10 sheets, 150 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BCX2510: 150 positions on 10 sheets

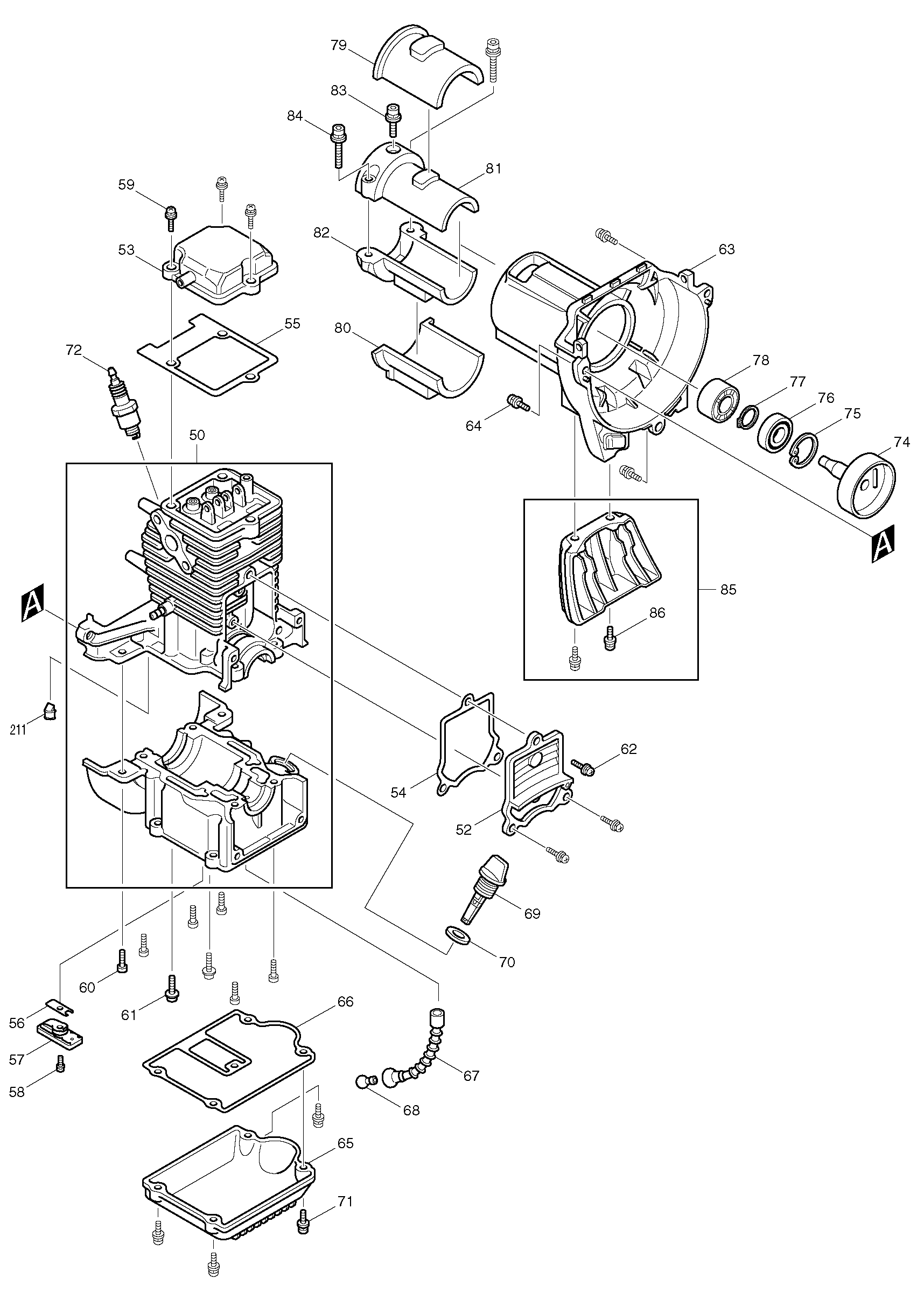

Sheet 1: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 1
No.Part numberPart name
505921005003
525921500502Makita 5921500502 CAMGEAR COVERBHX2500/PB-250.4
535921004000Makita 5921004000 ROCKER COVER COMPLETE
545921500700Makita 5921500700 CAMGEAR COVER GASKETBHX2500/PB-250.4
555921500800Makita 5921500800 ROCKER COVER GASKETBHX2500/PB-250.4
565921501000Makita 5921501000 LEAD VALVEBHX2500/PB-250.4
575921501100Makita 5921501100 RETAINER PLATEBHX2500/PB-250.4
580119049980Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4
590043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
600119059510Makita 0119059510 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
610119059500Makita 0119059500 SOCKET HEAD BOLT M5X30 (W)
620043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
636241500203Makita 6241500203 CLUTCH CASE
640043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
655926500000Makita 5926500000 OIL CASEBHX2500/PB-250.4
665926500100Makita 5926500100 CASE GASKETBHX2500/PB-250.4
675926500200Makita 5926500200 OIL TUBEBHX2500/PB-250.4
685926500300Makita 5926500300 OIL WEIGHTBHX2500/PB-250.4
695926500600Makita 5926500600 OIL GAUGE
700213160020Makita 0213160020 GASKET
710043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
720650109950Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4
746242003000Makita 6242003000 CLUTCH DRUM COMPLETE
750031432000Makita 0031432000 INNER SNAP RING
760600129810
770031512000Makita 0031512000 OUTER SNAP RING
786241500300Makita 6241500300 SPACER
796241500401Makita 6241500401 PIPE DAMPER 1
806241500501Makita 6241500501 PIPE DAMPER 2
816241500600Makita 6241500600 PIPE BRACKET 1
826241500700Makita 6241500700 PIPE BRACKET 2
830119059900Makita 0119059900 SOCKET HEAD BOLT M5X12
840119059950Makita 0119059950 SOCKET HEAD BOLT M5X18
860140059480Makita 0140059480 SCREW ASS'Y M5X14BHX2500/PB-250.4
2115921501800Makita 5921501800 CHECK VALVEBHX2500/PB-250.4

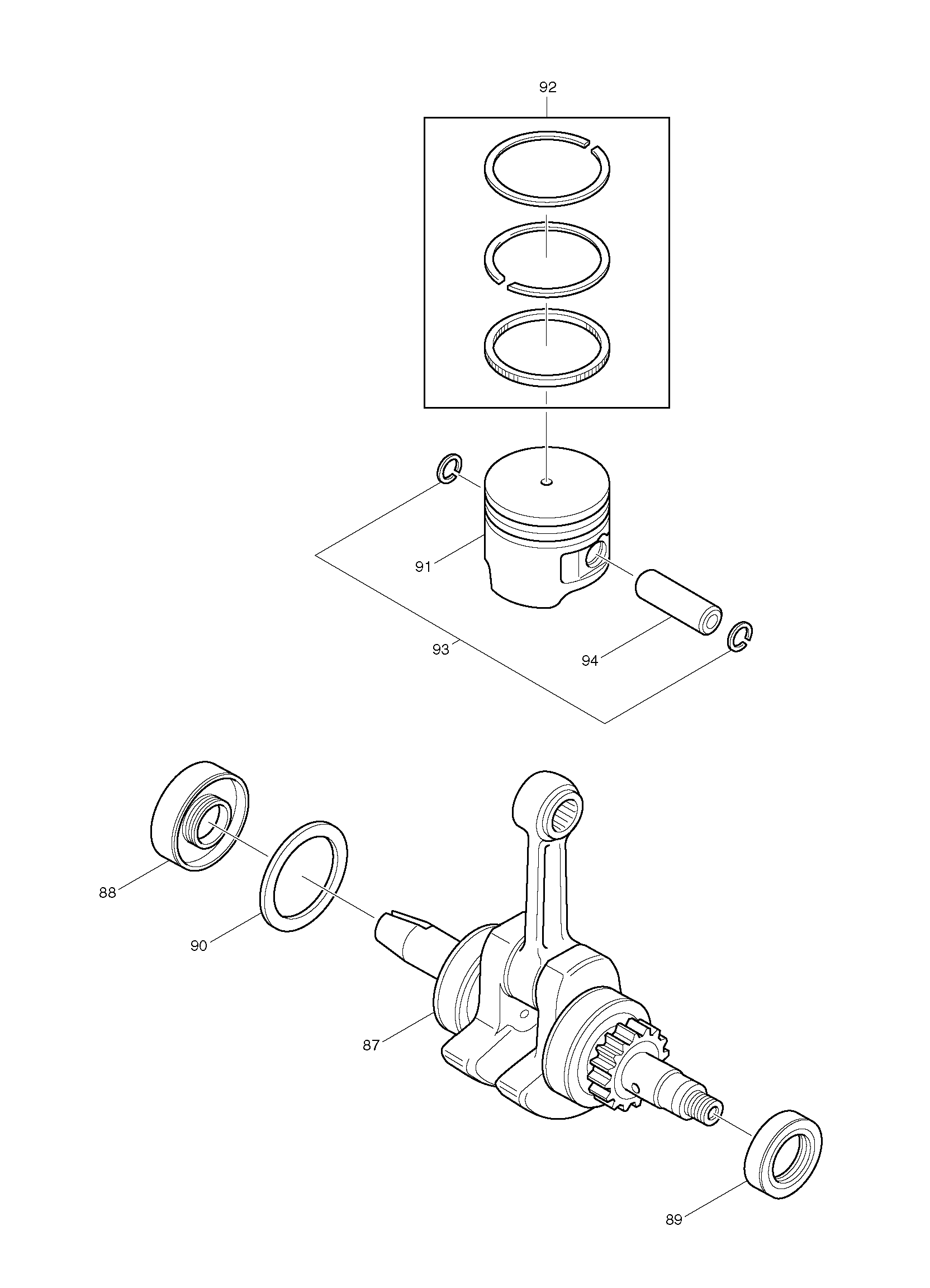

Sheet 2: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 2
No.Part numberPart name
875922003000Makita 5922003000 CRANK SHAFT ASS'YBHX2500/PB-250.4
880440129960Makita 0440129960 OIL SEAL (L)BHX2500/PB-250.4
890440109970Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4
905421500500Makita 5421500500 CLIPBHX2500/PB-250.4
915922500900Makita 5922500900 PISTONBHX2500/PB-250.4
925922004000Makita 5922004000 PISTON RING SETBHX2500/PB-250.4
930565089970Makita 0565089970 CLIPBHX2500/PB-250.4
945232502600Makita 5232502600 PISTON PINBHX2500/PB-250.4

Sheet 3: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 3
No.Part numberPart name
955921501400Makita 5921501400 SPACERBHX2500/PB-250.4
965923500001Makita 5923500001 CAM LIFTERBHX2500/PB-250.4
975923007000Makita 5923007000 CAM GEAR ASS Y
985923500501Makita 5923500501 CAM GEAR SHAFTBHX2500/PB-250.4
995923500600Makita 5923500600 CAM LIFTER SHAFTBHX2500/PB-250.4
1005923500700Makita 5923500700 PUSH RODBHX2500/PB-250.4
1015933002000Makita 5933002000 ROCKER ARM ASS'YBHX2500/PB-250.4
1025933500100Makita 5933500100 ROCKER SHAFTBHX2500/PB-250.4
1035923501200Makita 5923501200 VALVE SPRINGBHX2500/PB-250.4
1045923501300Makita 5923501300 SPRING RETAINERBHX2500/PB-250.4
1055923501400Makita 5923501400 EXHAUST VALVEBHX2500/PB-250.4
1065923501500Makita 5923501500 INTAKE VALVEBHX2500/PB-250.4

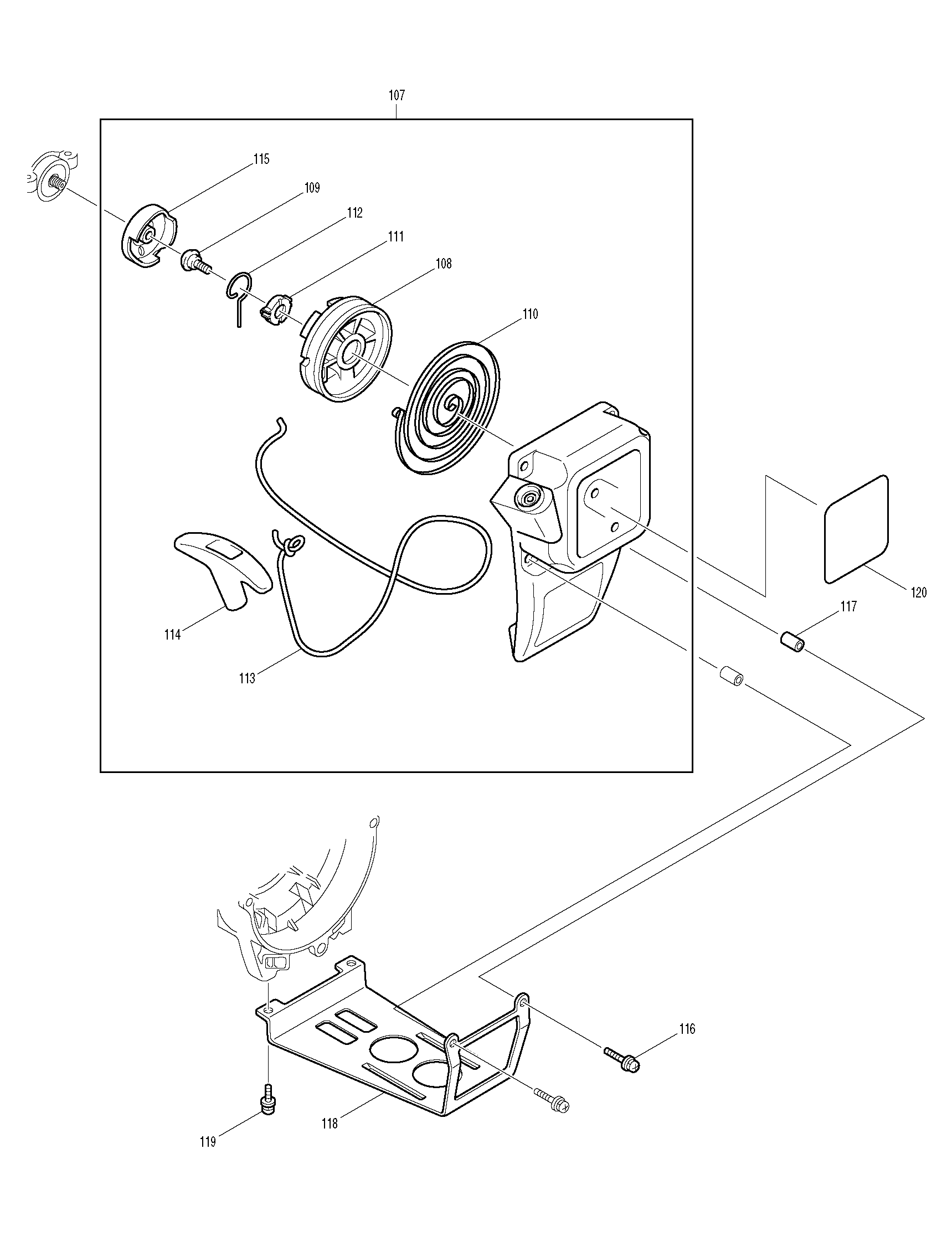

Sheet 4: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 4
No.Part numberPart name
1085925001030Makita 5925001030 REELBHX2500/PB-250.4
1095195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
1105215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
1115195002110Makita 5195002110 COLLARBHX2500/PB-250.4
1125195002100Makita 5195002100 SWING ARMBHX2500/PB-250.4
1135925001050Makita 5925001050 STARTER ROPEBHX2500/PB-250.4
1145225004020Makita 5225004020 HANDLEBHX2500/PB-250.4
1155195500000Makita 5195500000 PULLEYBHX2500/PB-250.4
1160043604250Makita 0043604250 SCREW ASS Y M4X25
1170230049940Makita 0230049940 SPACER
1185929500800Makita 5929500800 TANK GUARD
1190043605100Makita 0043605100 SCREW ASSEMBLY
1206249506900

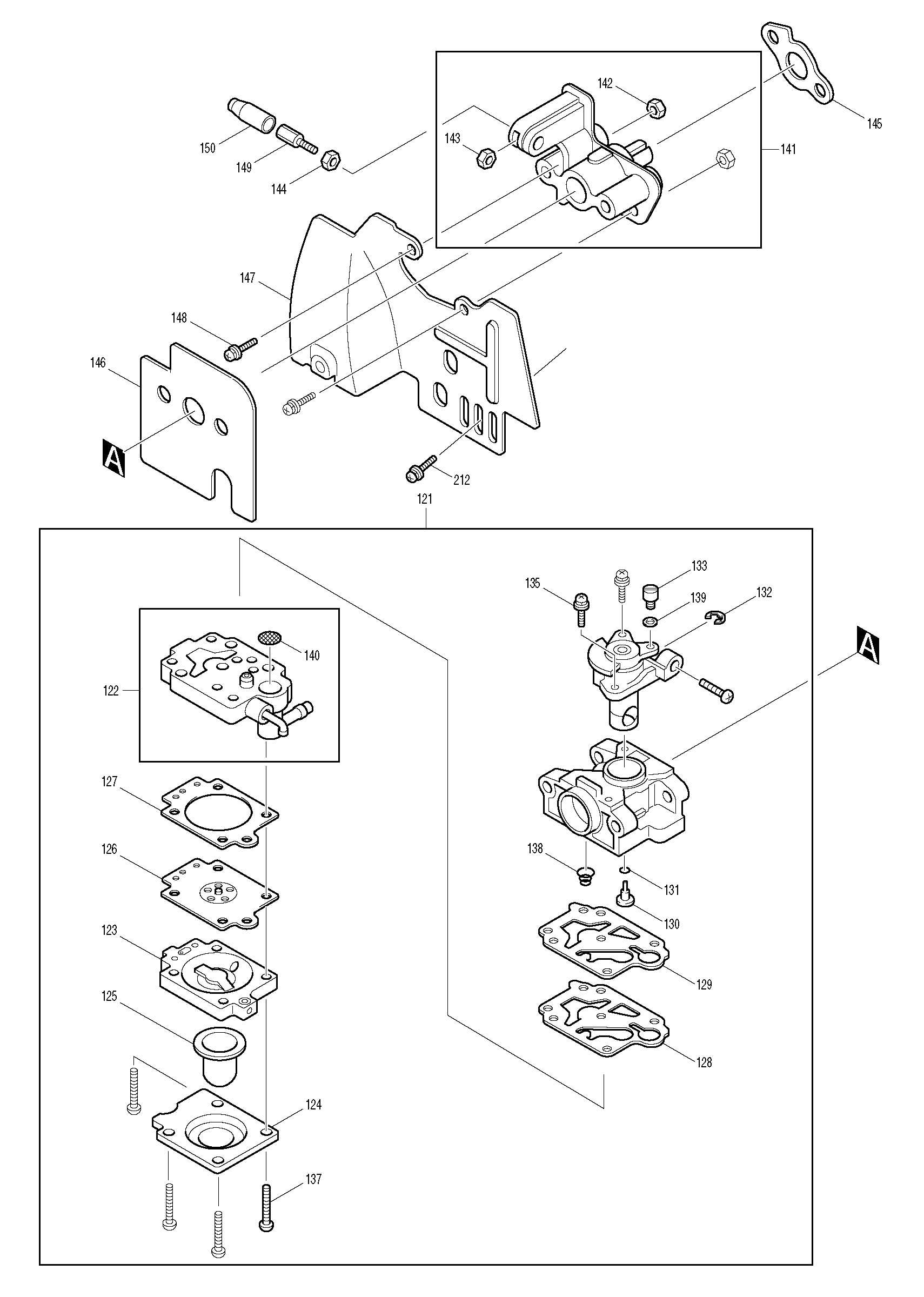

Sheet 5: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 5
No.Part numberPart name
1235236046140Makita 5236046140 AIR PURGE BODY ASS'YBHX2500/PB-250.4
1245236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
1255246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
1265316005250Makita 5316005250 METERING DIAPHRAGM ASS Y
1275236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
1285246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
1295926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1305196002020Makita 5196002020 JETBHX2500/PB-250.4
1315246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1325316005120Makita 5316005120 RINGBHX2500/PB-250.4
1335236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
134
1355206008030Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4
1375236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
1385926002020Makita 5926002020 PUMP SPRINGBHX2500/PB-250.4
1395426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1405016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1420021705000Makita 0021705000 NUT M5
1430022706000Makita 0022706000 NUT M6
1440022706000Makita 0022706000 NUT M6
1455923501801Makita 5923501801 INSULATOR GASKETBHX2500/PB-250.4
1465923501900Makita 5923501900 CARBURETOR GASKETBHX2500/PB-250.4
1475923502000Makita 5923502000 CARBURETOR INSULATOR
1480043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1490149069970Makita 0149069970 ADJUST SCREW M6X16
1505246004150Makita 5246004150 CAP
2120043605100Makita 0043605100 SCREW ASSEMBLY

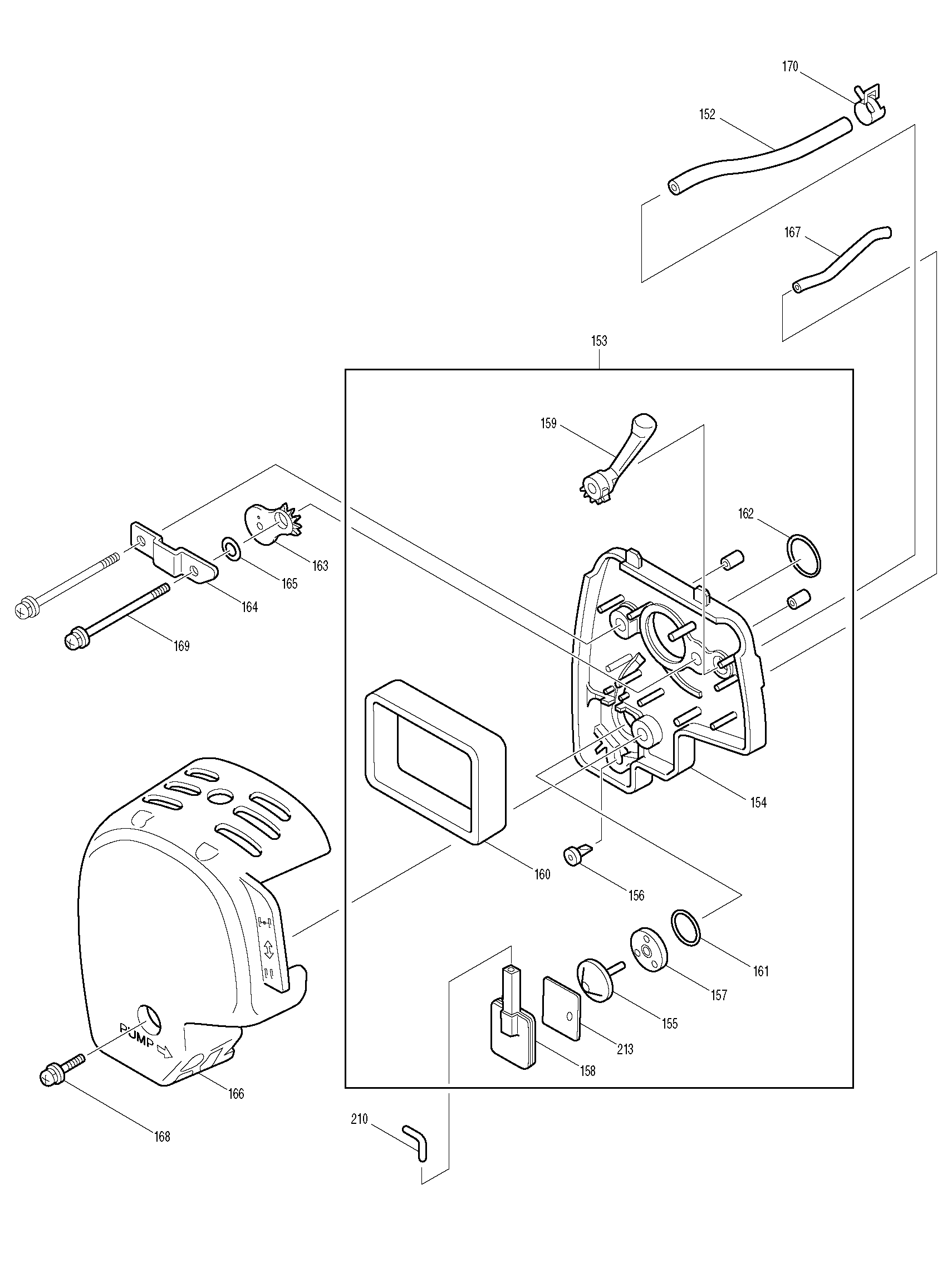

Sheet 6: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 6
No.Part numberPart name
1525921500900Makita 5921500900 BREATHER PIPEBHX2500/PB-250.4
1545923006000Makita 5923006000 AIR CLEANER PLATE COMPLETE
1555316500701Makita 5316500701 CHECK VALVEBHX2500/PB-250.4
1565923502400Makita 5923502400 CHECK VALVE (1)BHX2500/PB-250.4
1575923502500Makita 5923502500 CHECK VALVE PLATEBHX2500/PB-250.4
1585923503300Makita 5923503300 SEPARATOR PLATE
1595923502200Makita 5923502200 CHOKE LEVERBHX2500/PB-250.4
1605923503200Makita 5923503200 AIR CLEANER ELEMENT
1610240139970Makita 0240139970 O RING P14BHX2500/PB-250.4
1620240159990Makita 0240159990 O RING P15BHX2500/PB-250.4
1635923502300Makita 5923502300 CHOKE PLATE
1645923502600Makita 5923502600 PLATEBHX2500/PB-250.4
1650213069990Makita 0213069990 GASKETBHX2500/PB-250.4
1665923502700Makita 5923502700 AIR CLEANER COVER
1675923503001Makita 5923503001 PIPE
1680140059480Makita 0140059480 SCREW ASS'Y M5X14BHX2500/PB-250.4
1695923503100Makita 5923503100 SCREW M5X68 (W,SW SUBHX2500/PB-250.4
1700561080010Makita 0561080010 HOSE CLAMPBHX2500/PB-250.4
2105923503900
2135923503500Makita 5923503500 GASKET SEPARATORBHX2500/PB-250.4

Sheet 7: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 7
No.Part numberPart name
1715923001000Makita 5923001000 EXHAUST MUFFLER
1725923501601Makita 5923501601 MUFFLER GASKET
1735923503400Makita 5923503400 MUFFLER COVER
1740119059520Makita 0119059520 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1750140059962Makita 0140059962 SCREW M5X6

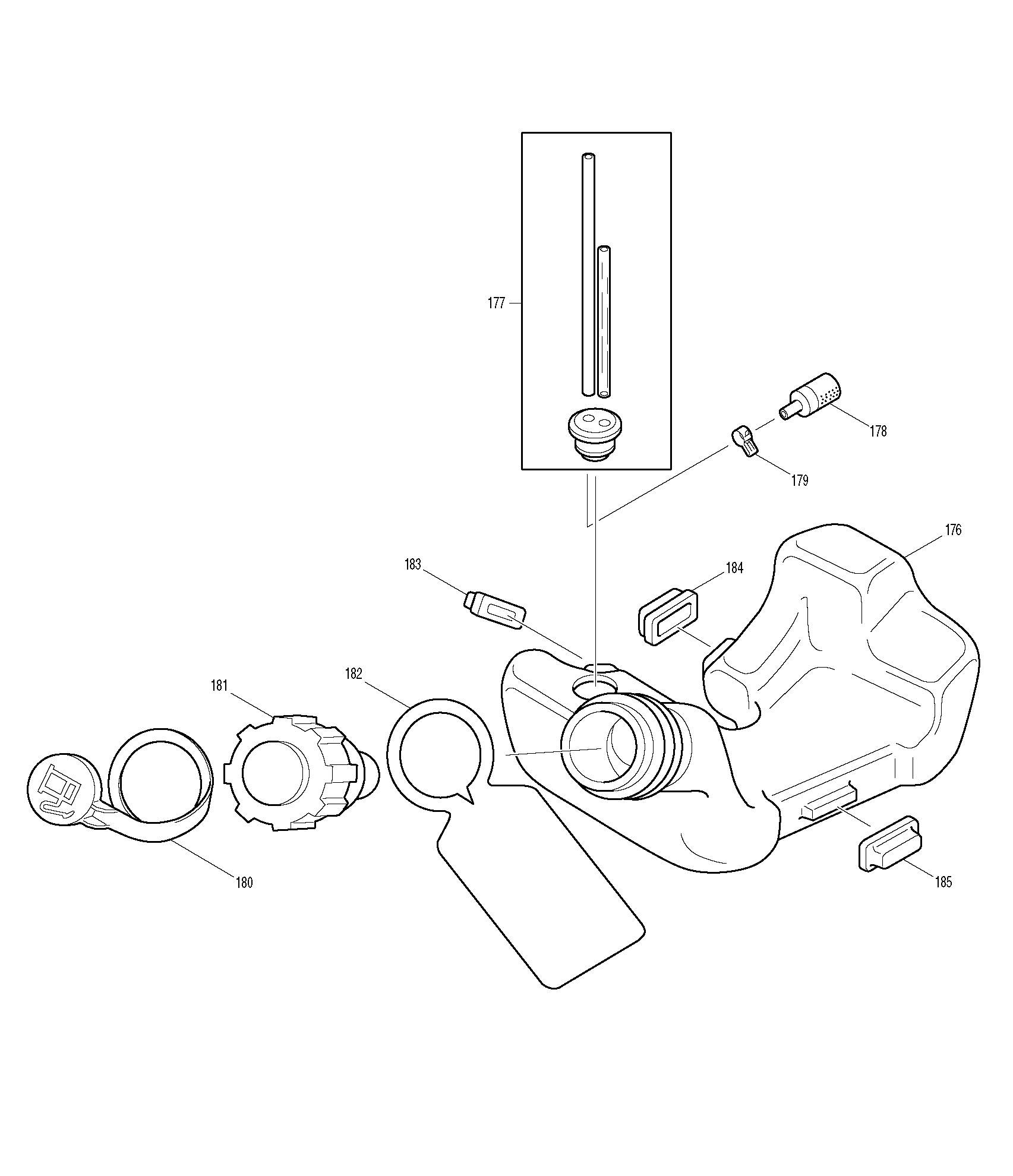

Sheet 8: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 8
No.Part numberPart name
1765926500400Makita 5926500400 FUEL TANK
1775926003000Makita 5926003000 TUBE
1785236503900Makita 5236503900 FILTERBHX2500/PB-250.4
1790561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1805926006001Makita 5926006001 FUEL TANK CAP ASS Y
1815926005000Makita 5926005000 STRAP PCE
1826249501501Makita 6249501501 STRAP
1835036500200Makita 5036500200 PLATEBCX3400
1845036500300Makita 5036500300 PLATEBCX3400
1855196500301Makita 5196500301 DAMPERBCX3400

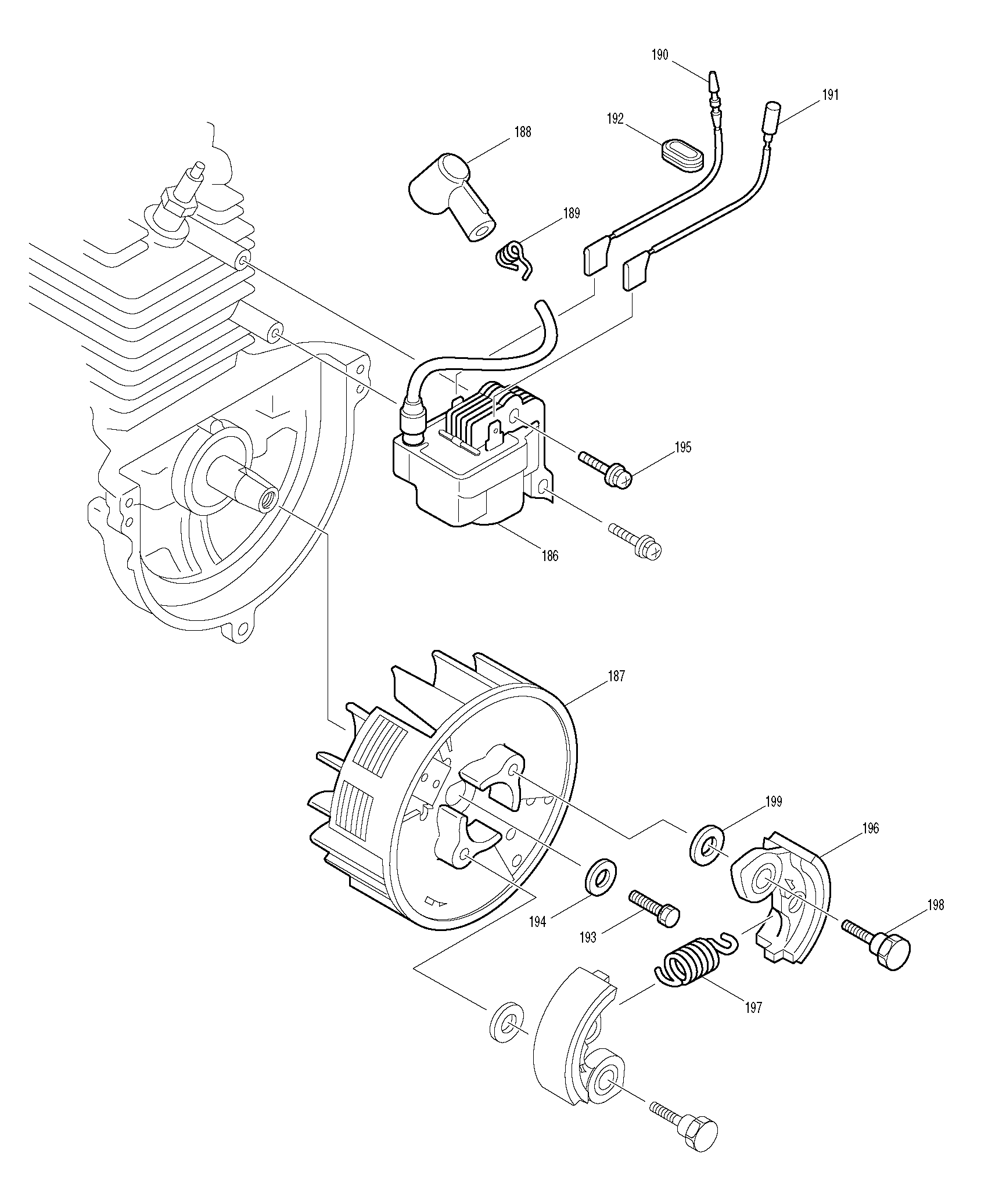

Sheet 9: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 9
No.Part numberPart name
1865927001010Makita 5927001010 IGNITION COIL
1875927001020Makita 5927001020 FLYWHEEL
1885927500100Makita 5927500100 PLUG CAPBHX2500/PB-250.4
1890654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
1905927003000Makita 5927003000 WIRE COMPLETE
1915257018001Makita 5257018001 WIRE COMPLETE
1925257500300Makita 5257500300 GROMMET
1930011306160Makita 0011306160 BOLT ASS Y
1940031206000Makita 0031206000 WASHER
1950140049920Makita 0140049920 SCREW ASS Y M4X20
1965928500000Makita 5928500000 CLUTCH SHOE
1975928500100Makita 5928500100 SPRING
1985928500200Makita 5928500200 CLUTCH BOLT
1995928500300Makita 5928500300 WASHER

Sheet 10: Makita BCX2510 parts diagram

Makita BCX2510 parts diagram, sheet 10
No.Part numberPart name
2005925500800Makita 5925500800 CYLINDER COVER
2010043605100Makita 0043605100 SCREW ASSEMBLY
2020043604160Makita 0043604160 SCREW M4X16(W,SW)
2035927500000Makita 5927500000 PLUG COVER
2040566059980DISC Genuine Makita 0566059980 CLAMP
2055929501001Makita 5929501001 TRADE MARK LABELBCX3400
