Makita BBY180
Makita BBY180: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BBY180: 14 positions on 1 sheet

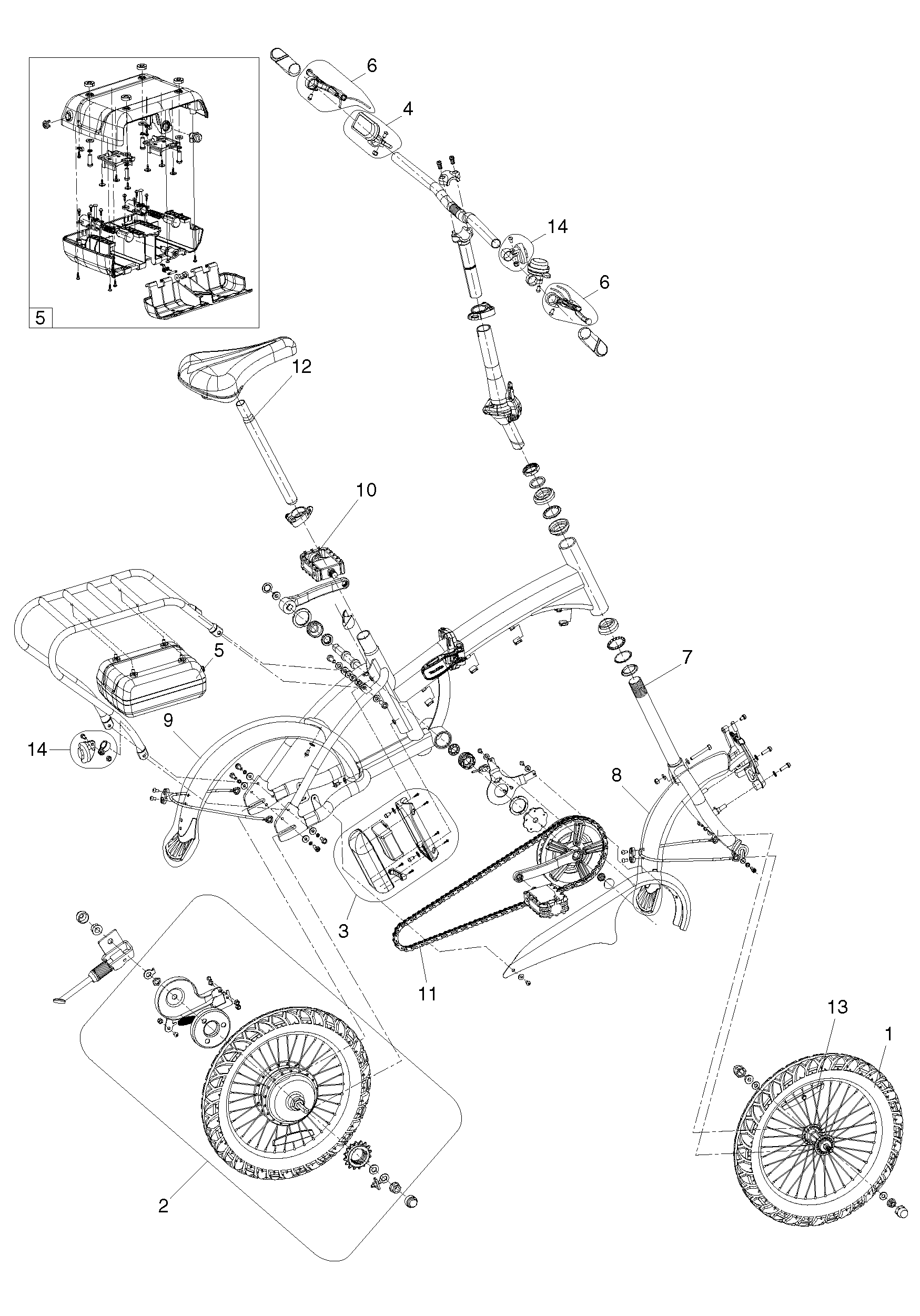

Sheet 1: Makita BBY180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | GE00000001 | Makita GE00000001 TYRE, BBY180 |
| 2 | GE00000002 | OTHR Makita GE00000002 REAR WHEEL SET, BBY180 |
| 3 | GE00000003 | Makita GE00000003 Controller Box for BBY180 |
| 4 | GE00000004 | Makita GE00000004 Controller Panel for BBY180 |
| 5 | GE00000005 | Makita GE00000005 Battery Box for BBY180 |
| 6 | GE00000006 | Makita GE00000006 BRAKE LEVER, BBY180 |
| 7 | GE00000007 | Makita GE00000007 FRONT FORK, BBY180 |
| 8 | GE00000008 | Makita GE00000008 FRONT FENDER, BBY180 |
| 9 | GE00000009 | Makita GE00000009 REAR FRNDER, BBY180 |
| 10 | GE00000010 | Makita GE00000010 PEDAL L/R SET, BBY180 |
| 11 | GE00000011 | Makita GE00000011 CHAIN, BBY180 |
| 12 | GE00000012 | Makita GE00000012 SADDLE POST, BBY180 |
| 13 | GE00000013 | Makita GE00000013 WHEEL REFLECTOR, BBY180 |
| 14 | GE00000014 | Makita GE00000014 FRONT/REAR REFLECTOR, BBY180 |
