Makita BBO180

Makita BBO180: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BBO180: 32 positions on 1 sheet

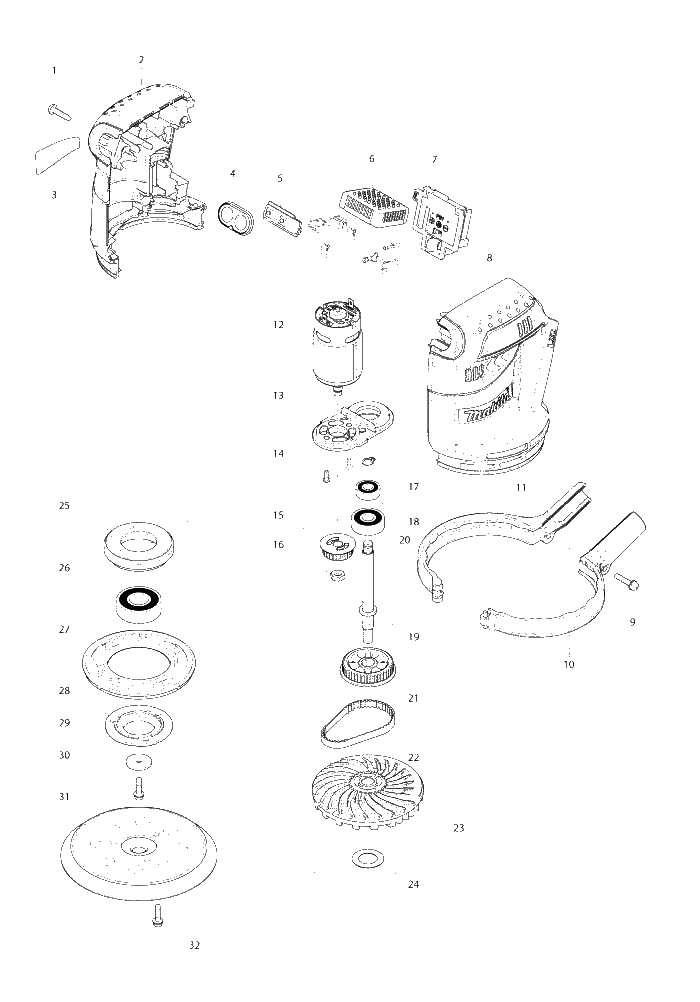

Sheet 1: Makita BBO180 parts diagram

Makita BBO180 parts diagram, sheet 1
No.Part numberPart name
1265995-6Makita 265995-6 TAPPING SCREW 4X18, 4100NH
2187423-0Makita 187423-0 HOUSING SET
3897244-9
4141419-5Makita 141419-5 SWITCH PLATE COMPLETE
5620115-3Makita 620115-3 SWITCH UNIT
6638982-2OLDN Makita 638982-2 CONTROLLER UNIT
7644808-8Makita 644808-8 Terminal DSC162 DGD8000 DUR183
8187423-0Makita 187423-0 HOUSING SET
9911138-5Makita 911138-5 P.H.SCREW M4*20, M442
10187360-8Makita 187360-8 SKIRT SET
11187360-8Makita 187360-8 SKIRT SET
12629952-2Makita 629952-2 DC Motor 18V for BBO180 LXOB01
13453632-6Makita 453632-6 MOTOR BRACKET
14265199-0Makita 265199-0 PAN HEAD SCREW, 4075D
15222175-7Makita 222175-7 PULLEY 7.5-24.1, BBO140
16931303-0Makita 931303-0 HEX. NUT M6
17961003-8Makita 961003-8 RETAINING RING, HR2450
18210062-2Makita 210062-2 BALL BEARING 607ZZ, MT952
19326168-7Makita 326168-7 SPINDLE
20211092-6Makita 211092-6 Ball Bearing for 629DDW UB1101
21222176-5Makita 222176-5 PULLEY
22225095-4Makita 225095-4 SYNCHRO BELT 6-174
23240136-5Makita 240136-5 FAN 88
24267164-5Makita 267164-5 FLAT WASHER 4, N5900B
25318304-9Makita 318304-9 BEARING BOX, BO5030
26211228-7Makita 211228-7 BALL BEARING 6202DDW, GA9010
27424131-5Makita 424131-5 BRAKE RING, BO5030
28318303-1Makita 318303-1 BEARING BOX COVER, BO5030
29253739-6Makita 253739-6 FLAT UASHER 4, MT922
30911128-8Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
31743081-8Old number 743081-8
32911128-8Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
