Makita BBO140
Makita BBO140: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita BBO140: 32 positions on 1 sheet

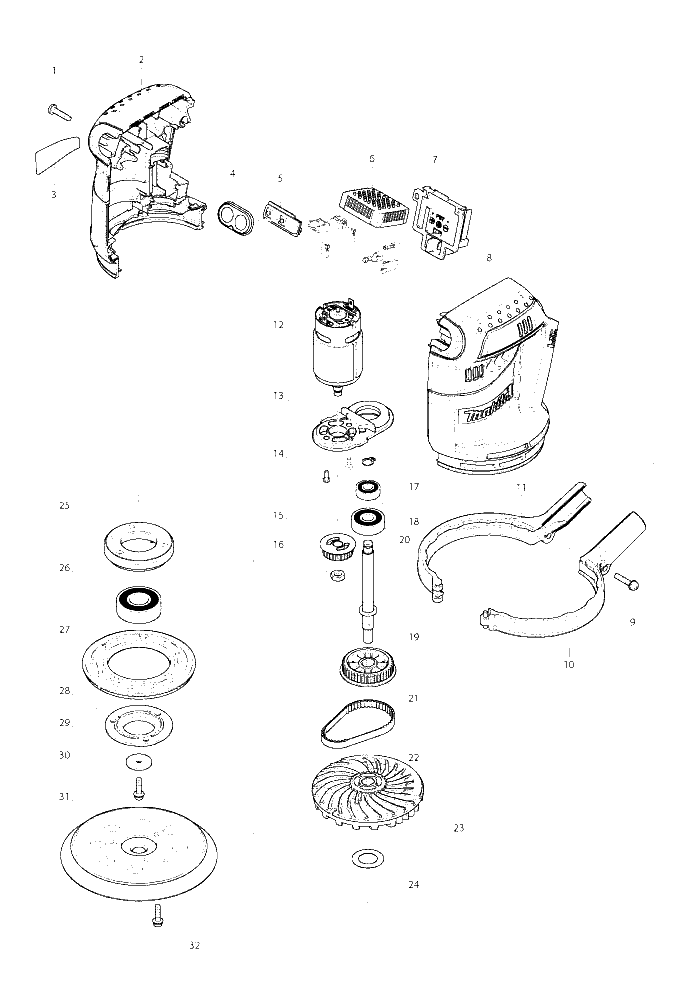

Sheet 1: Makita BBO140 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 187423-0 | Makita 187423-0 HOUSING SET |
| 3 | 897236-8 | |
| 4 | 141419-5 | Makita 141419-5 SWITCH PLATE COMPLETE |
| 5 | 620115-3 | Makita 620115-3 SWITCH UNIT |
| 6 | 638981-4 | |
| 7 | 643866-1 | Makita 643866-1 Terminal, DF446D |
| 8 | 187423-0 | Makita 187423-0 HOUSING SET |
| 9 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 10 | 187360-8 | Makita 187360-8 SKIRT SET |
| 11 | 187360-8 | Makita 187360-8 SKIRT SET |
| 12 | 629950-6 | Makita 629950-6 DC MOTOR |
| 13 | 453632-6 | Makita 453632-6 MOTOR BRACKET |
| 14 | 265199-0 | Makita 265199-0 PAN HEAD SCREW, 4075D |
| 15 | 222175-7 | Makita 222175-7 PULLEY 7.5-24.1, BBO140 |
| 16 | 931303-0 | Makita 931303-0 HEX. NUT M6 |
| 17 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 18 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 19 | 326168-7 | Makita 326168-7 SPINDLE |
| 20 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 21 | 222176-5 | Makita 222176-5 PULLEY |
| 22 | 225095-4 | Makita 225095-4 SYNCHRO BELT 6-174 |
| 23 | 240136-5 | Makita 240136-5 FAN 88 |
| 24 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 25 | 318304-9 | Makita 318304-9 BEARING BOX, BO5030 |
| 26 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 27 | 424131-5 | Makita 424131-5 BRAKE RING, BO5030 |
| 28 | 318303-1 | Makita 318303-1 BEARING BOX COVER, BO5030 |
| 29 | 253739-6 | Makita 253739-6 FLAT UASHER 4, MT922 |
| 30 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 31 | 743081-8 | Old number 743081-8 |
| 32 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
