Bosch BBH 4-30 CCE

Bosch BBH 4-30 CCE rotary hammer: exploded parts diagram, 2 sheets, 107 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BBH 4-30 CCE: 107 positions on 2 sheets

Bosch BBH 4-30 CCE parts list (2 sheets)

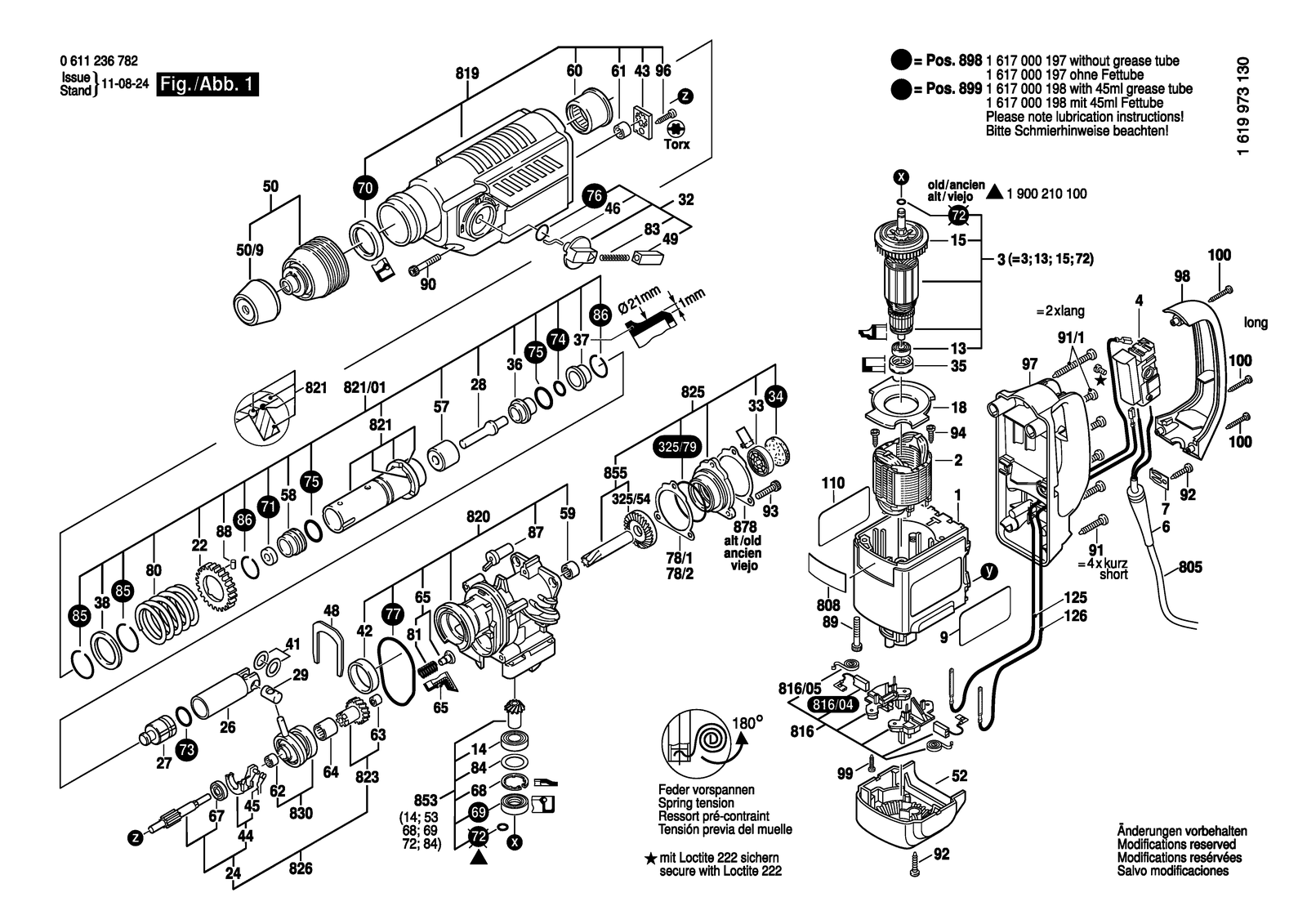

Bosch BBH 4-30 CCE parts diagram, sheet 1Bosch BBH 4-30 CCE parts diagram, sheet 2
No.Part numberPart name
11615108130Motor Housing Marine Blue
1002914211311Oval-Head Screw 40 X 35MM
1101611110992Manufacturer's nameplate
120160202507HAuxiliary Handle
1211618040054Support clamp Ø51X110 MM
1221613490002T-Head Bolt M8X40 MM
1231611316009Clamping Band Ø51 MM
1241613001008Depth-Gauge SW 6X330 MM
1251614448035Connecting Cable White L=330 MM
1261614448036Connecting Cable Blue L=215 MM
131610905025Groove ball bearing 7X19X6
141900900289Groove ball bearing 12X28X8
151606610132Fan
181610591011Air-Deflector Ring
21614220117Field 230V
221616317602Cylindrical Gear Z=50
241617000500Toothed Shaft Z=3/9
261618700063Hammer Piston
271618710060Striker
281613124043Striker Pin
291613105012Piston Pin
31614010128Armature With Fan 220-230V
321612026101Clamp Handle Light Grey
325/541616333029Crown Gear Z=32
325/792600210003O-Ring 40,0X1,5 MM
331610190016Perforated disk
341610005000Felt Disc
351610206021Rubber Ring
361610390016Guide Bushing
371610390032Damping Bushing Ø21 MM
381610102026Supporting Disc
41617200106Switch Light Grey
411610101011Shim washer Thick 1,2 MM
421610202015Plain bearing
431611098005Tab Washer
441615820092Switching Element
451614651014Switch Spring
461614690002Driver Pin
481611016003Holding Plate
491612026035Switch Button Red
501618598175Quick-Change Collet Chuck Sds-Plus L=70 MM
50/91610508026Protective Cap L=21,5 Mm, Sds-Plus
521615500355Cover Marine Blue
571610390025Stop Bushing
581610390026Guide Ring
591610910080Needle bearing
62600703018Grommet Ø7,3-Ø8,6X76 MM
601610910073Needle-Roller Bearing
611610910098Needle bearing
621610200020Plain bearing
631610910064Needle bearing
641610913010Needle-Roller Assembly
651610591016Plain bearing
6611615430010Grease Tube 30 Ml
671610905016Groove ball bearing
681610119009Retaining ring
691610283041Rotary shaft lip seal
6911615438304Carrying Case Black
71601302018Fastening Clamp
701610283023Rotary shaft lip seal
711610290029Scraper
720/81617000358Auxiliary Handle Ø51 MM
731610210121O-Ring Green 17,0X3,0 MM
741610210104O-Ring 11,0X3,5 MM
751610210159O-Ring 18,0X3,5 MM
761610210046O-Ring 10,5X2,7 MM
771610210106O-Ring 60,0X3,0 MM
78/11610134005Shim Thick 0,1 MM
78/21610134006Shim Thick 0,2 MM
801614634006Compression Spring
8051614460026Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A3HCNameplate
811614611009Compression Spring
8161617000357Brush Holder
816/041617014124Carbon-Brush Set
816/051614652002Spiral Spring
8191617000592Impact Mechanism Housing
8201617000315Gear Housing
8211617000978Ratchet Sleeve
821/011617000979Ratchet Sleeve
8231616328044Gear Sleeve Z=25
8251615805064Bearing Flange
8261617000516Toothed Shaft Z=3/9
831614611006Compression Spring
8301615819022Drive bearing
841610101627Supporting Disc Thick 1,2 MM
851614601011Retaining ring
8531617000196Pinion Z=15
8551617000982Jack Shaft Z=9
861614601024Retaining ring
871610390027Screw Bushing
8781610134008Plain Washer Thick 0,5 MM
881613200007Roller
892910141168Hex Socket Head Cap Screw DIN 912-M 5X35-8.8
8981617000197Wear and Tear Part Set
8991617000198Wear and Tear Part Set
91611110Y10Manufacturer's nameplate
902910141168Hex Socket Head Cap Screw DIN 912-M 5X35-8.8
912910211036Tapping Screw DIN 7971-ST4,8X25-F
91/12910211038Tapping Screw DIN 7971-ST4,8X38-F
922912401019Tapping Screw DIN7981-ST3,9X16-C-Z
932910141162Hex Socket Head Cap Screw DIN 912-M5X20-8.8
942603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
962912401018Tapping Screw DIN7981-ST3,9X13-C-Z
971615133031Handle Cover Black
981615133030Cover Black
992910211005Tapping Screw DIN 7971-ST2,9X9,5-F
