Bosch BBH 3-28 E

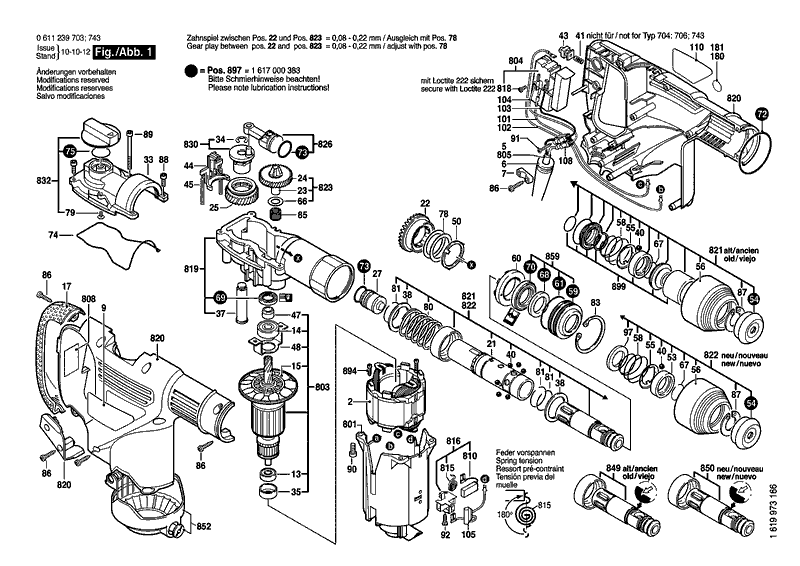

Bosch BBH 3-28 E rotary hammer: exploded parts diagram, 2 sheets, 449 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BBH 3-28 E: 449 positions on 2 sheets
Bosch BBH 3-28 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1614449012 | Connecting Cable White L=360 MM |
| 101 | 1614449012 | Connecting Cable White L=360 MM |
| 101 | 1614449012 | Connecting Cable White L=360 MM |
| 101 | 1614449012 | Connecting Cable White L=360 MM |
| 102 | 1614431028 | Connecting Cable White L=220 MM |
| 102 | 1614431028 | Connecting Cable White L=220 MM |
| 102 | 1614431028 | Connecting Cable White L=220 MM |
| 102 | 1614431028 | Connecting Cable White L=220 MM |
| 103 | 1614437017 | Connecting Cable Blue L=180 MM |
| 103 | 1614437017 | Connecting Cable Blue L=180 MM |
| 103 | 1614437017 | Connecting Cable Blue L=180 MM |
| 103 | 1614437017 | Connecting Cable Blue L=180 MM |
| 104 | 1614437018 | Connecting Cable |
| 104 | 1614437018 | Connecting Cable |
| 104 | 1614437018 | Connecting Cable |
| 104 | 1614437018 | Connecting Cable |
| 105 | 1614431029 | Suppression Filter |
| 105 | 1614449013 | Connecting Cable |
| 105 | 1614449013 | Connecting Cable |
| 105 | 1614431029 | Suppression Filter |
| 105 | 1614431029 | Suppression Filter |
| 108 | 1611091003 | Connecting terminal 2-POLE |
| 108 | 1611091006 | Connecting terminal 2-POLE |
| 108 | 1611091003 | Connecting terminal 2-POLE |
| 108 | 1611091006 | Connecting terminal 2-POLE |
| 108 | 1611091003 | Connecting terminal 2-POLE |
| 108 | 1611091006 | Connecting terminal 2-POLE |
| 108 | 1611091003 | Connecting terminal 2-POLE |
| 108 | 1611091006 | Connecting terminal 2-POLE |
| 110 | 1611110A54 | Reference Plate |
| 110 | 1611110C03 | Reference Plate |
| 110 | 1611110C03 | Reference Plate |
| 110 | 1611110A48 | Reference Plate |
| 110 | 1611110A50 | Reference Plate |
| 120 | 160202507H | Auxiliary Handle |
| 120 | 160202507H | Auxiliary Handle |
| 120 | 160202507H | Auxiliary Handle |
| 120 | 160202507H | Auxiliary Handle |
| 121 | 1618040073 | Support clamp |
| 121 | 1618040073 | Support clamp |
| 121 | 1618040073 | Support clamp |
| 121 | 1618040073 | Support clamp |
| 122 | 1613450017 | Hex Screw M 8X40 MM |
| 122 | 1613450017 | Hex Screw M 8X40 MM |
| 122 | 1613450017 | Hex Screw M 8X40 MM |
| 122 | 1613450017 | Hex Screw M 8X40 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 123 | 1611316018 | Clamping Band Ø 63 MM |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 124 | 2915051180 | Hex Nut ISO-4035-M8-05 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 14 | 1610905036 | Groove ball bearing 10X26X8 |
| 15 | 1616610088 | Fan |
| 15 | 1616610088 | Fan |
| 15 | 1616610088 | Fan |
| 15 | 1616610088 | Fan |
| 17 | 1615132075 | Flap Grip |
| 17 | 1615132085 | Flap Grip |
| 17 | 1615132085 | Flap Grip |
| 17 | 1615132075 | Flap Grip |
| 17 | 1615132075 | Flap Grip |
| 180 | 1611110E67 | Warning Plate |
| 180 | 3601119137 | Warning Plate Caution |
| 180 | 1611110855 | Sticker |
| 181 | 1611110880 | Warning Plate |
| 181 | 1611110A44 | Warning Plate |
| 2 | 1614220118 | Field 220-230V |
| 2 | 1614220148 | Field 110-120V |
| 2 | 1614220149 | Field 100V |
| 2 | 1614220155 | Field 240V |
| 2 | 1614220118 | Field 220-230V |
| 2 | 1614220118 | Field 220-230V |
| 2 | 1614220118 | Field 220-230V |
| 21 | 1615806047 | Pipe |
| 21 | 1615806047 | Pipe |
| 21 | 1615806047 | Pipe |
| 21 | 1615806047 | Pipe |
| 22 | 1616333038 | Crown Gear Z=31 |
| 22 | 1616333038 | Crown Gear Z=31 |
| 22 | 1616333038 | Crown Gear Z=31 |
| 22 | 1616333038 | Crown Gear Z=31 |
| 23 | 1616333039 | Pinion Z=6 |
| 23 | 1616333039 | Pinion Z=6 |
| 23 | 1616333039 | Pinion Z=6 |
| 23 | 1616333039 | Pinion Z=6 |
| 24 | 1616312005 | Cylindrical Gear |
| 24 | 1616312005 | Cylindrical Gear |
| 24 | 1616312005 | Cylindrical Gear |
| 24 | 1616312005 | Cylindrical Gear |
| 25 | 1616317061 | Eccentric Cog Wheel Z=31 |
| 25 | 1616317061 | Eccentric Cog Wheel Z=31 |
| 25 | 1616317061 | Eccentric Cog Wheel Z=31 |
| 25 | 1616317061 | Eccentric Cog Wheel Z=31 |
| 27 | 1610311016 | Striker |
| 27 | 1610311016 | Striker |
| 27 | 1610311016 | Striker |
| 27 | 1610311016 | Striker |
| 33 | 1615808082 | Gear Cover |
| 33 | 1615808082 | Gear Cover |
| 33 | 1615808082 | Gear Cover |
| 33 | 1615808082 | Gear Cover |
| 34 | 2916080910 | Locking washer DIN 6799-7-FST |
| 34 | 2916080910 | Locking washer DIN 6799-7-FST |
| 34 | 2916080910 | Locking washer DIN 6799-7-FST |
| 34 | 2916080910 | Locking washer DIN 6799-7-FST |
| 35 | 1600502023 | Intermediate Ring |
| 35 | 1600502023 | Intermediate Ring |
| 35 | 1600502023 | Intermediate Ring |
| 35 | 1600502023 | Intermediate Ring |
| 37 | 1613123004 | Eccentric Shaft |
| 37 | 1613123004 | Eccentric Shaft |
| 37 | 1613123004 | Eccentric Shaft |
| 37 | 1613123004 | Eccentric Shaft |
| 38 | 1610202018 | Supporting Disc |
| 38 | 1610202018 | Supporting Disc |
| 38 | 1610202018 | Supporting Disc |
| 38 | 1610202018 | Supporting Disc |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 40 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 41 | 3604618008 | Compression Spring |
| 41 | 3604618008 | Compression Spring |
| 41 | 3604618008 | Compression Spring |
| 43 | 1610390043 | Screw Bushing |
| 43 | 1610390048 | Screw Bushing |
| 43 | 1610390048 | Screw Bushing |
| 43 | 1610390043 | Screw Bushing |
| 43 | 1610390043 | Screw Bushing |
| 44 | 1611329019 | Control Fork |
| 44 | 1611329019 | Control Fork |
| 44 | 1611329019 | Control Fork |
| 44 | 1611329019 | Control Fork |
| 45 | 1614611016 | Compression Spring |
| 45 | 1614611016 | Compression Spring |
| 45 | 1614611016 | Compression Spring |
| 45 | 1614611016 | Compression Spring |
| 47 | 1610250010 | Inner Ring |
| 47 | 1610250010 | Inner Ring |
| 47 | 1610250010 | Inner Ring |
| 47 | 1610250010 | Inner Ring |
| 48 | 1611329020 | Fixing Plate |
| 48 | 1611329020 | Fixing Plate |
| 48 | 1611329020 | Fixing Plate |
| 48 | 1611329020 | Fixing Plate |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460022 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 5 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460060 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460086 | Power supply cord AR 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 2604460228 | Power supply cord SAM 4,15M 2 X 082MM SJ 18/2 |
| 5 | 1614460088 | Power supply cord CN 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 1610290059 | Friction Washer |
| 50 | 1610290059 | Friction Washer |
| 50 | 1610290059 | Friction Washer |
| 50 | 1610290059 | Friction Washer |
| 53 | 1610422018 | Thrust Ring |
| 53 | 1610422018 | Thrust Ring |
| 53 | 1610422018 | Thrust Ring |
| 53 | 1610422018 | Thrust Ring |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 54 | 1610508039 | Protective Cap L=13 MM |
| 55 | 1610190040 | Holding Plate |
| 55 | 1610190040 | Holding Plate |
| 55 | 1610190040 | Holding Plate |
| 55 | 1610190040 | Holding Plate |
| 56 | 1610499042 | Protection Sleeve |
| 56 | 1610499042 | Protection Sleeve |
| 56 | 1610499042 | Protection Sleeve |
| 56 | 1610499042 | Protection Sleeve |
| 58 | 1614615004 | Compression Spring |
| 58 | 1614615004 | Compression Spring |
| 58 | 1614615004 | Compression Spring |
| 58 | 1614615004 | Compression Spring |
| 59 | 1610314003 | Sealing Sleeve |
| 59 | 1610314003 | Sealing Sleeve |
| 59 | 1610314003 | Sealing Sleeve |
| 59 | 1610314003 | Sealing Sleeve |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1615190087 | Plain bearing |
| 60 | 1615190087 | Plain bearing |
| 60 | 1615190087 | Plain bearing |
| 60 | 1615190087 | Plain bearing |
| 61 | 1610210156 | O-Ring 39,0X3,0 MM |
| 61 | 1610210156 | O-Ring 39,0X3,0 MM |
| 61 | 1610210156 | O-Ring 39,0X3,0 MM |
| 61 | 1610210156 | O-Ring 39,0X3,0 MM |
| 66 | 1610100612 | Support Disc Thick 0,5 MM |
| 66 | 1610100612 | Support Disc Thick 0,5 MM |
| 66 | 1610100612 | Support Disc Thick 0,5 MM |
| 66 | 1610100612 | Support Disc Thick 0,5 MM |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 67 | 1614601032 | Retaining ring |
| 67 | 1614601032 | Retaining ring |
| 67 | 1614601032 | Retaining ring |
| 67 | 1614601032 | Retaining ring |
| 68 | 1610205008 | Felt Washer |
| 68 | 1610205008 | Felt Washer |
| 68 | 1610205008 | Felt Washer |
| 68 | 1610205008 | Felt Washer |
| 69 | 1610283031 | Rotary shaft lip seal |
| 69 | 1610283031 | Rotary shaft lip seal |
| 69 | 1610283031 | Rotary shaft lip seal |
| 69 | 1610283031 | Rotary shaft lip seal |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 70 | 1610283032 | Rotary shaft lip seal |
| 70 | 1610283032 | Rotary shaft lip seal |
| 70 | 1610283032 | Rotary shaft lip seal |
| 70 | 1610283032 | Rotary shaft lip seal |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 701 | 1608571088 | Chuck |
| 701 | 1608571088 | Chuck |
| 701 | 1608571088 | Chuck |
| 701 | 1608571088 | Chuck |
| 707 | 2607950007 | Chuck Wrench SG2 |
| 707 | 2607950007 | Chuck Wrench SG2 |
| 707 | 2607950007 | Chuck Wrench SG2 |
| 707 | 2607950007 | Chuck Wrench SG2 |
| 72 | 1610210157 | O-Ring 52,0X3,0 MM |
| 72 | 1610210157 | O-Ring 52,0X3,0 MM |
| 72 | 1610210157 | O-Ring 52,0X3,0 MM |
| 72 | 1610210157 | O-Ring 52,0X3,0 MM |
| 720 | 2602025112 | Auxiliary Handle Ø 63 MM |
| 720 | 2602025112 | Auxiliary Handle Ø 63 MM |
| 720 | 2602025112 | Auxiliary Handle Ø 63 MM |
| 720 | 2602025112 | Auxiliary Handle Ø 63 MM |
| 725 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 725 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 725 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 725 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 73 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 74 | 1611014002 | Sealing Frame |
| 74 | 1611014002 | Sealing Frame |
| 74 | 1611014002 | Sealing Frame |
| 74 | 1611014002 | Sealing Frame |
| 75 | 1610210155 | O-Ring 19,0X2,5 MM |
| 75 | 1610210155 | O-Ring 19,0X2,5 MM |
| 75 | 1610210155 | O-Ring 19,0X2,5 MM |
| 75 | 1610210155 | O-Ring 19,0X2,5 MM |
| 78 | 1610102051 | Shim 0,3 MM |
| 78 | 1610102052 | Shim 0,4 MM |
| 78 | 1610102053 | Shim 0,5 MM |
| 78 | 1610102051 | Shim 0,3 MM |
| 78 | 1610102052 | Shim 0,4 MM |
| 78 | 1610102053 | Shim 0,5 MM |
| 78 | 1610102051 | Shim 0,3 MM |
| 78 | 1610102052 | Shim 0,4 MM |
| 78 | 1610102053 | Shim 0,5 MM |
| 78 | 1610102051 | Shim 0,3 MM |
| 78 | 1610102052 | Shim 0,4 MM |
| 78 | 1610102053 | Shim 0,5 MM |
| 79 | 1928491082 | Oval-Head Screw |
| 79 | 1928491082 | Oval-Head Screw |
| 79 | 1928491082 | Oval-Head Screw |
| 79 | 1928491082 | Oval-Head Screw |
| 80 | 1614615003 | Compression Spring |
| 80 | 1614615003 | Compression Spring |
| 80 | 1614615003 | Compression Spring |
| 80 | 1614615003 | Compression Spring |
| 801 | 1615108103 | Insulating Housing |
| 801 | 1615108103 | Insulating Housing |
| 801 | 1615108103 | Insulating Housing |
| 801 | 1615108103 | Insulating Housing |
| 802 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 802 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 802 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 802 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 803 | 1614010705 | Armature With Fan 220-230V |
| 803 | 1614010706 | Armature With Fan 110-120V |
| 803 | 1614010707 | Armature With Fan 100V |
| 803 | 1614010708 | Armature With Fan 240V |
| 803 | 1614010705 | Armature With Fan 220-230V |
| 803 | 1614010705 | Armature With Fan 220-230V |
| 803 | 1614010705 | Armature With Fan 220-230V |
| 804 | 2607200576 | Switch |
| 804 | 2607200577 | Switch |
| 804 | 2607200576 | Switch |
| 805 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 808 | 160111A3HD | Nameplate |
| 81 | 1614601033 | Retaining ring |
| 81 | 1614601033 | Retaining ring |
| 81 | 1614601033 | Retaining ring |
| 81 | 1614601033 | Retaining ring |
| 810 | 1617014137 | Carbon-Brush Set |
| 810 | 1617014139 | Carbon-Brush Set |
| 810 | 1617014137 | Carbon-Brush Set |
| 810 | 1617014137 | Carbon-Brush Set |
| 810 | 1617014137 | Carbon-Brush Set |
| 815 | 1614652003 | Spiral Spring |
| 815 | 1614652003 | Spiral Spring |
| 815 | 1614652003 | Spiral Spring |
| 815 | 1614652003 | Spiral Spring |
| 816 | 1617000392 | Brush Holder |
| 816 | 1617000397 | Brush Holder |
| 816 | 1617000392 | Brush Holder |
| 816 | 1617000392 | Brush Holder |
| 816 | 1617000392 | Brush Holder |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 819 | 1617000382 | Gear Housing |
| 819 | 1617000382 | Gear Housing |
| 819 | 1617000382 | Gear Housing |
| 819 | 1617000382 | Gear Housing |
| 820 | 1615104016 | Housing Section Blue |
| 820 | 1615104016 | Housing Section Blue |
| 820 | 1615104021 | Housing Section Gray |
| 820 | 1615104025 | Housing Section Orange |
| 821 | 1618598221 | Toolholder Sds-Plus |
| 821 | 1618598221 | Toolholder Sds-Plus |
| 821 | 1618598221 | Toolholder Sds-Plus |
| 821 | 1618598221 | Toolholder Sds-Plus |
| 822 | 1618598248 | Toolholder |
| 822 | 1618598248 | Toolholder |
| 822 | 1618598248 | Toolholder |
| 822 | 1618598248 | Toolholder |
| 823 | 1617016009 | Pinion |
| 823 | 1617016009 | Pinion |
| 823 | 1617016009 | Pinion |
| 823 | 1617016009 | Pinion |
| 826 | 1618700085 | Hammer Piston |
| 826 | 1618700085 | Hammer Piston |
| 826 | 1618700085 | Hammer Piston |
| 826 | 1618700085 | Hammer Piston |
| 83 | 1614601036 | Spring retaining ring |
| 83 | 1614601036 | Spring retaining ring |
| 83 | 1614601036 | Spring retaining ring |
| 83 | 1614601036 | Spring retaining ring |
| 830 | 1612210118 | Eccentric |
| 830 | 1612210118 | Eccentric |
| 830 | 1612210118 | Eccentric |
| 830 | 1612210118 | Eccentric |
| 832 | 1612026090 | Clamp Handle |
| 832 | 1612026090 | Clamp Handle |
| 832 | 1612026090 | Clamp Handle |
| 832 | 1612026090 | Clamp Handle |
| 849 | 1618598220 | Tool Holding Fixture Sds-Plus |
| 849 | 1618598220 | Tool Holding Fixture Sds-Plus |
| 849 | 1618598220 | Tool Holding Fixture Sds-Plus |
| 849 | 1618598220 | Tool Holding Fixture Sds-Plus |
| 85 | 1610913015 | Needle-Roller Assembly |
| 85 | 1610913015 | Needle-Roller Assembly |
| 85 | 1610913015 | Needle-Roller Assembly |
| 85 | 1610913015 | Needle-Roller Assembly |
| 850 | 1618598249 | Tool Holding Fixture |
| 850 | 1618598249 | Tool Holding Fixture |
| 850 | 1618598249 | Tool Holding Fixture |
| 850 | 1618598249 | Tool Holding Fixture |
| 852 | 1615500310 | Brush-Cover |
| 852 | 1615500310 | Brush-Cover |
| 852 | 1615500310 | Brush-Cover |
| 852 | 1615500310 | Brush-Cover |
| 859 | 1610314004 | Sealing Sleeve |
| 859 | 1610314004 | Sealing Sleeve |
| 859 | 1610314004 | Sealing Sleeve |
| 859 | 1610314004 | Sealing Sleeve |
| 86 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 86 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 86 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 86 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 87 | 1610209006 | Backup ring |
| 87 | 1610209006 | Backup ring |
| 87 | 1610209006 | Backup ring |
| 87 | 1610209006 | Backup ring |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 88 | 1613414016 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 89 | 1613414017 | Hex Socket Head Cap Screw |
| 894 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 894 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 894 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 894 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 895 | 1615430019 | Oil Reservoir 1000 Ml |
| 897 | 1617000383 | Wear and Tear Part Set |
| 897 | 1617000383 | Wear and Tear Part Set |
| 897 | 1617000383 | Wear and Tear Part Set |
| 897 | 1617000383 | Wear and Tear Part Set |
| 898 | 1615437509 | Oil Reservoir 50 Ml |
| 898 | 1615437509 | Oil Reservoir 50 Ml |
| 898 | 1615437509 | Oil Reservoir 50 Ml |
| 898 | 1615437509 | Oil Reservoir 50 Ml |
| 899 | 1617000V76 | Wear and Tear Part Set |
| 899 | 1617000V76 | Wear and Tear Part Set |
| 899 | 1617000V76 | Wear and Tear Part Set |
| 899 | 1617000V76 | Wear and Tear Part Set |
| 9 | 1611110A53 | Manufacturer's nameplate |
| 9 | 1611110C02 | Manufacturer's nameplate |
| 9 | 1611110C02 | Manufacturer's nameplate |
| 9 | 1611110A47 | Manufacturer's nameplate |
| 9 | 1611110A49 | Manufacturer's nameplate |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5X12-8.8 |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5X12-8.8 |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5X12-8.8 |
| 90 | 2910131154 | Hex Socket Head Cap Screw DIN 7984-M5X12-8.8 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9X19 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9X19 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9X19 |
| 91 | 2912401008 | Tapping Screw DIN 7983-ST-2,9X19 |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 92 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 97 | 1610102025 | Friction Washer |
| 97 | 1610102025 | Friction Washer |
| 97 | 1610102025 | Friction Washer |
| 97 | 1610102025 | Friction Washer |
Selected parts0
