Bosch BBH 24 VRE

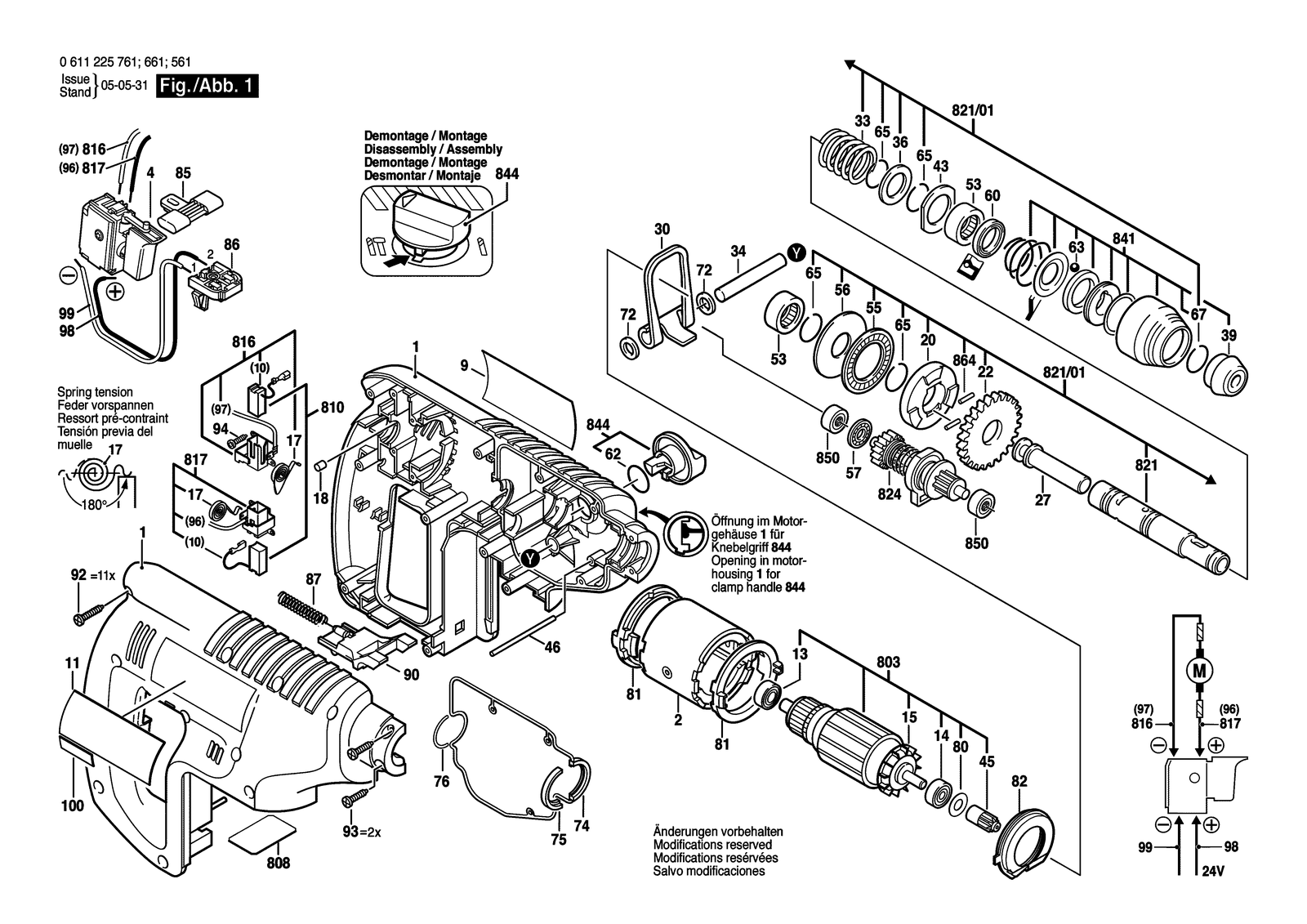

Bosch BBH 24 VRE cordless rotary hammer: exploded parts diagram, 2 sheets, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BBH 24 VRE: 72 positions on 2 sheets
Bosch BBH 24 VRE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615104014 | Housing Section Gray |
| 100 | 1611110983 | Reference Plate |
| 11 | 1611110982 | Reference Plate |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040067 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 13 | 1600905033 | Groove ball bearing 8X22X7 |
| 14 | 2600905052 | Groove ball bearing 8X22X7 |
| 15 | 1616610080 | Fan |
| 17 | 1614652008 | Spiral Spring |
| 18 | 2603100056 | Damping rubber |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 20 | 1616409012 | Catch Disk |
| 22 | 1616317613 | Cylindrical Gear Z=53 |
| 27 | 1618710068 | Striker |
| 30 | 1611911000 | Drive Lever |
| 33 | 1614634008 | Compression Spring |
| 34 | 1613100021 | Bearing Pin |
| 36 | 1610190021 | Supporting Disc |
| 39 | 1610508021 | Protective Cap Sds-Plus |
| 4 | 1617200067 | On-Off Switch |
| 43 | 1610190020 | Supporting Disc |
| 45 | 1616316602 | Drive pinion Z=9 |
| 46 | 1613160022 | Straight Pin |
| 53 | 1610910077 | Needle bearing |
| 55 | 1610920012 | Roller Thrust Bearing |
| 56 | 1610102030 | Support Disc Thick 1,0 MM |
| 57 | 1610920009 | Roller Thrust Bearing Black |
| 60 | 1610280006 | Seal Ring |
| 62 | 1610210125 | O-Ring 18,0X2,5 MM |
| 63 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 65 | 1614601018 | Retaining ring |
| 655 | 1610508032 | Protective Cap Red |
| 661 | 1615430010 | Grease Tube 30 Ml |
| 67 | 3600224038 | Spring retaining ring |
| 691 | 1615438280 | Carrying Case Gray |
| 72 | 1610100007 | Shim washer Thick 1,0 MM |
| 720 | 2602025092 | Auxiliary Handle Black Ø43 MM |
| 74 | 1611015045 | Sealing Frame |
| 75 | 1611015041 | Sealing Frame |
| 752 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 753 | 2607335082 | Slide-In Accu Package 24V, 1,7AH, Nicd |
| 753 | 2607335190 | Accumulator package 24V,1,7AH,NICD |
| 753 | 2607335234 | Accumulator package Battery Without Charger 24V,3,0AH,NICD |
| 754 | 2607224376 | Fast Charger EU 230/7,2-24V, 15 Min. |
| 76 | 1610210138 | Seal Ring |
| 80 | 1610100008 | Sealing disk |
| 803 | 1617000319 | Armature With Fan 24V |
| 808 | 160111A3HD | Nameplate |
| 81 | 1610290043 | Locating Ring |
| 810 | 1617014131 | Carbon-Brush Set |
| 816 | 1617000379 | Brush Holder Blue L=145 MM |
| 817 | 1617000380 | Brush Holder Red L=45 MM |
| 82 | 1610591017 | Air-Deflector Ring |
| 821 | 1617000320 | Hammer Pipe Sds-Plus |
| 821/01 | 1617000375 | Hammer Pipe Sds-Plus |
| 824 | 1617000314 | Jack Shaft Z=31/12 |
| 841 | 1617000303 | Protection Sleeve Sds-Plus |
| 844 | 1617000322 | Clamp Handle Black |
| 85 | 1613231009 | Switch Slide Black |
| 850 | 1617000975 | Bushing |
| 86 | 1609280157 | Contact retainer |
| 864 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 87 | 1614611012 | Compression Spring |
| 9 | 1611110981 | Manufacturer's nameplate |
| 90 | 1613231007 | Catch Slide |
| 92 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 93 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 94 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 98 | 1614416012 | Connecting Cable Red L=260 MM |
| 99 | 1614416011 | Connecting Cable Blue L=270 MM |
