Bosch BAG-125 SA
Bosch BAG-125 SA angle grinder: exploded parts diagram, 2 sheets, 119 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

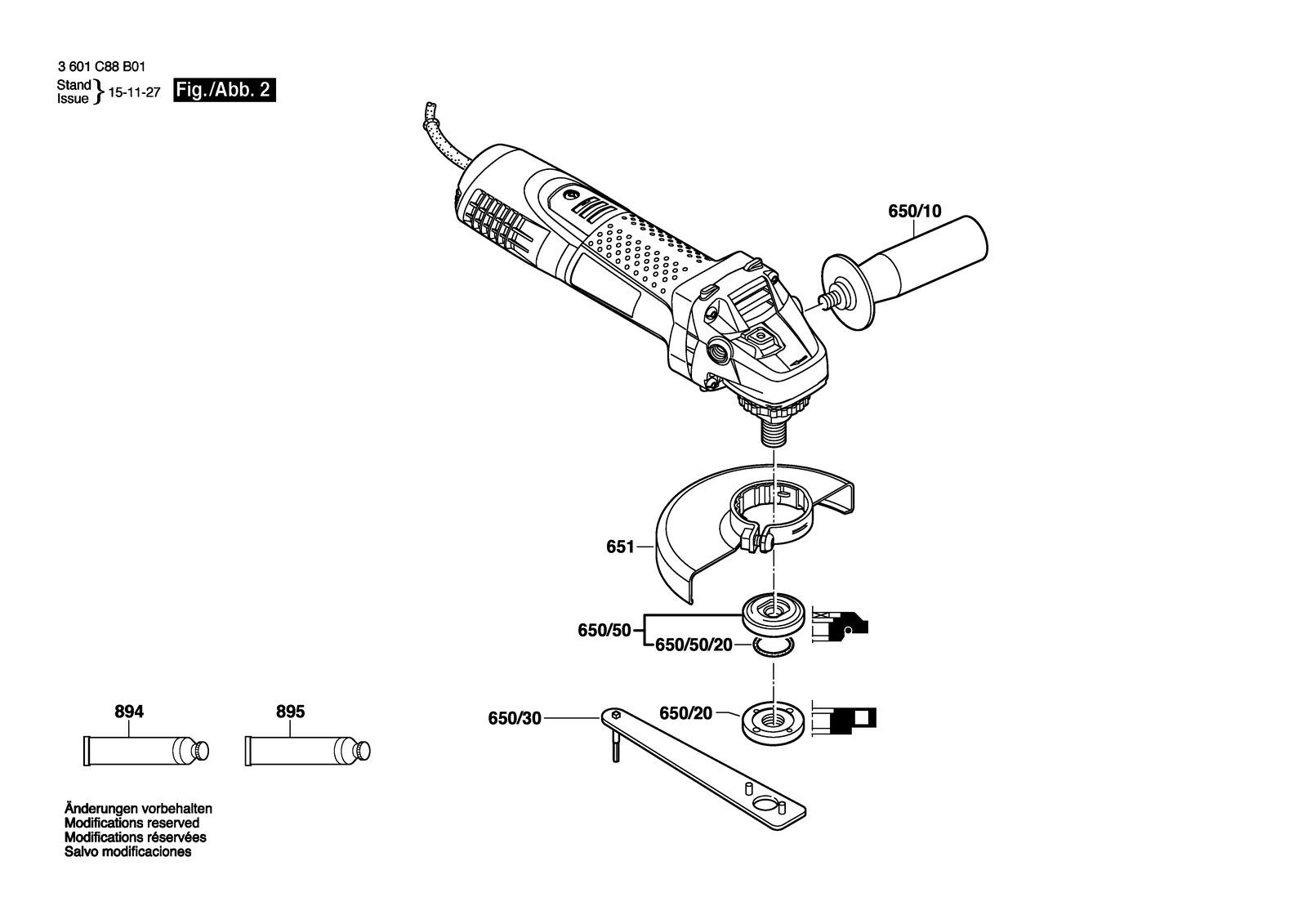

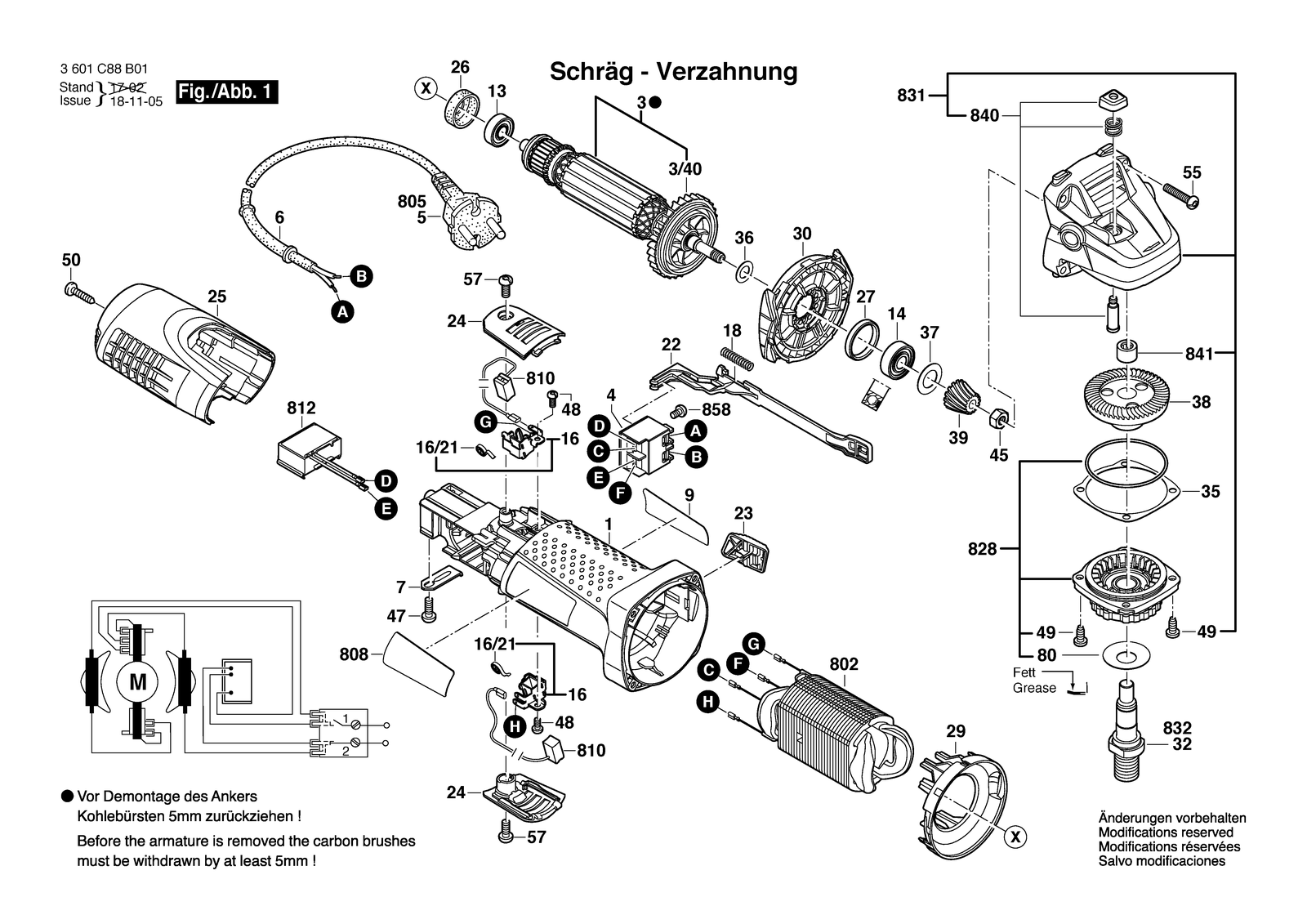

All parts of Bosch BAG-125 SA: 119 positions on 2 sheets
Bosch BAG-125 SA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P09191 | Motor Housing |
| 1 | 1619P09191 | Motor Housing |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1619P00455 | Ball Bearing |
| 14 | 1619P00455 | Ball Bearing |
| 16 | 1619P02845 | Brush Holder |
| 16 | 1619P02845 | Brush Holder |
| 16/21 | 1619P02809 | Spiral Spring |
| 16/21 | 1619P02809 | Spiral Spring |
| 18 | 1604611031 | Compression Spring |
| 18 | 1604611031 | Compression Spring |
| 22 | 1619P02811 | Adjusting Slide |
| 22 | 1619P02811 | Adjusting Slide |
| 23 | 1619P09198 | Switch Button |
| 23 | 1619P09198 | Switch Button |
| 24 | 1619P02828 | Brush-Cover |
| 24 | 1619P02828 | Brush-Cover |
| 25 | 1619P09200 | Housing Cover |
| 25 | 1619P09200 | Housing Cover |
| 26 | 1600502023 | Intermediate Ring |
| 26 | 1600502023 | Intermediate Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1619P02818 | Air-Deflector Ring |
| 29 | 1619P02818 | Air-Deflector Ring |
| 3 | 1604010BK7 | Armature |
| 3 | 1604010BK7 | Armature |
| 3/40 | 1619P02801 | Fan |
| 3/40 | 1619P02801 | Fan |
| 30 | 1619P09202 | Air Distributor |
| 30 | 1619P09202 | Air Distributor |
| 32 | 1619P06419 | Grinding Spindle M 14, SW 17 |
| 32 | 1619P06419 | Grinding Spindle M 14, SW 17 |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 36 | 1619P00987 | Washer |
| 36 | 1619P00987 | Washer |
| 37 | 1600100033 | Cover Disc |
| 37 | 1600100033 | Cover Disc |
| 38 | 1619P02823 | Crown Gear |
| 38 | 1619P02823 | Crown Gear |
| 39 | 1619P02825 | Bevel Gear |
| 39 | 1619P02825 | Bevel Gear |
| 4 | 1607200179 | On-Off Switch |
| 4 | 1607200326 | Switch |
| 4 | 1607200179 | On-Off Switch |
| 4 | 1607200326 | Switch |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 45 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 47 | 2609110052 | Special Screw |
| 47 | 2609110052 | Special Screw |
| 48 | 1619P02849 | Torx Oval-Head Screw 3X8 |
| 48 | 1619P02849 | Torx Oval-Head Screw 3X8 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 1604460312 | Power supply cord EU 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1604460312 | Power supply cord EU 2,65M 2 X 0,75MM H05 W-f |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 55 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 57 | 1619P02848 | Torx Oval-Head Screw 4X12 |
| 57 | 1619P02848 | Torx Oval-Head Screw 4X12 |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/30 | 1619P08927 | Pin-Type Face-Wrench |
| 650/30 | 1619P08927 | Pin-Type Face-Wrench |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 651 | 1600A00XU6 | Protective Cover Silver Ø115 MM |
| 651 | 1600A00XU7 | Protective Cover Silver Ø125 MM |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 802 | 1619P07239 | Field 220-230V |
| 802 | 1619P07239 | Field 220-230V |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 805 | 1607000385 | Power supply cord EU 2,6M 2 X 1,0 MM |
| 808 | 1619P09380 | Nameplate |
| 808 | 1619P13146 | Nameplate |
| 808 | 1619P09381 | Nameplate |
| 808 | 1619P13147 | Nameplate |
| 810 | 1619P02870 | Carbon-Brush Set |
| 810 | 1619P02870 | Carbon-Brush Set |
| 812 | 1619P07240 | Suppression Capacitor |
| 812 | 1619P15041 | Suppression Filter |
| 812 | 1619P07240 | Suppression Capacitor |
| 812 | 1619P15041 | Suppression Filter |
| 828 | 1619P07452 | Bearing Flange |
| 828 | 1619P07452 | Bearing Flange |
| 831 | 1619P09204 | Gear Housing |
| 831 | 1619P09204 | Gear Housing |
| 832 | 1607000D6A | Grinding Spindle |
| 832 | 1607000D6A | Grinding Spindle |
| 840 | 1619P09205 | Push Button |
| 840 | 1619P09205 | Push Button |
| 841 | 1600200029 | Plain bearing |
| 841 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 841 | 1600200029 | Plain bearing |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1619P09196 | Manufacturer's nameplate BAG-115 Sa |
| 9 | 1619P13465 | Manufacturer's nameplate BAG 115-2 |
| 9 | 1619P09197 | Manufacturer's nameplate BAG-125 Sa |
| 9 | 1619P13466 | Manufacturer's nameplate BAG 125-2 |
