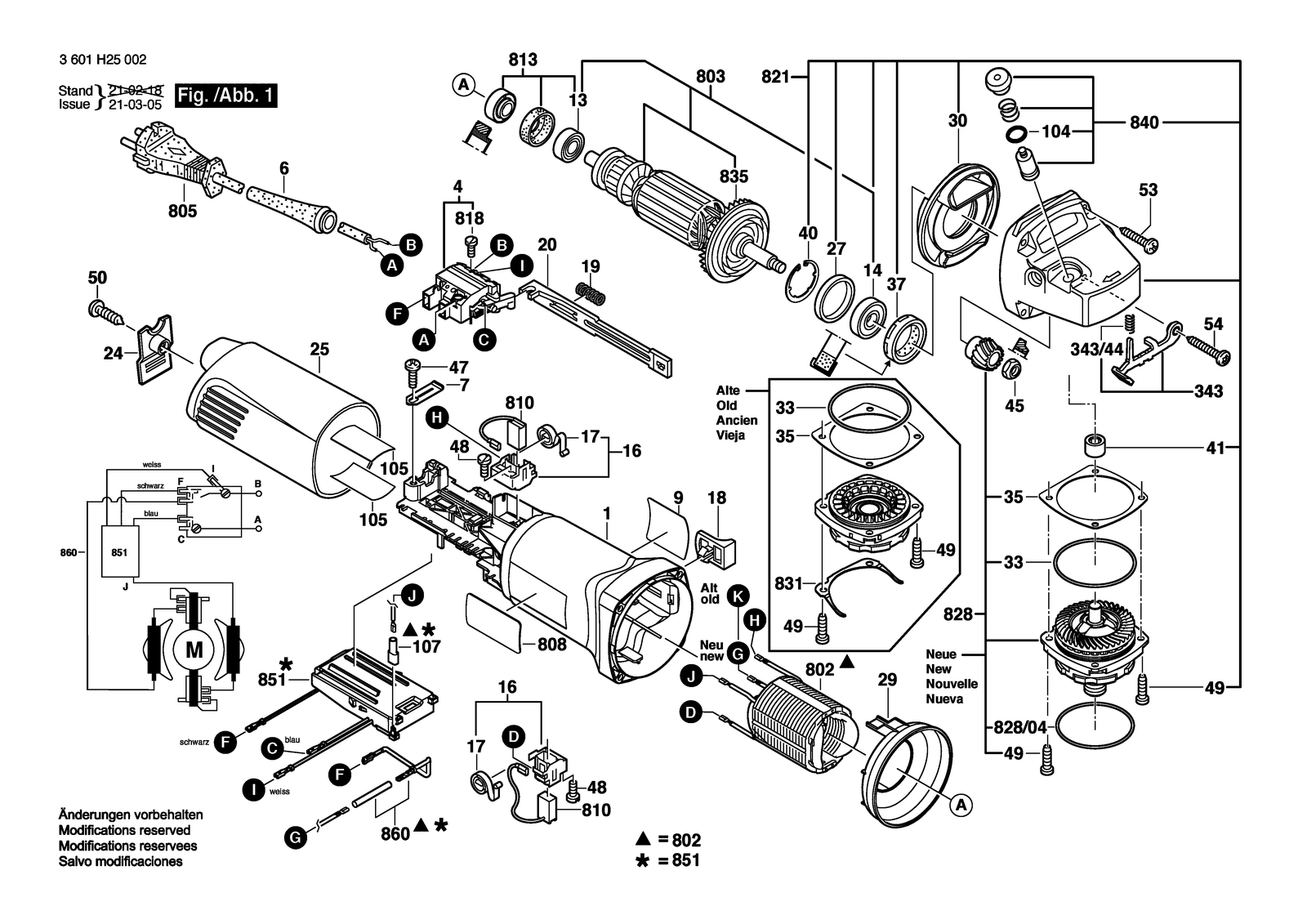

Bosch BAG 125-1 E angle grinder: exploded parts diagram, 2 sheets, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BAG 125-1 E: 118 positions on 2 sheets
Bosch BAG 125-1 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108265 | Motor Housing Marine Blue |
| 1 | 1605108266 | Motor Housing Orange |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 105 | 1601008005 | Insulating Plate |
| 107 | 1600712030 | Insulating Part |
| 107 | 1600712030 | Insulating Part |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1601323025 | Brush Holder |
| 16 | 1601323025 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1602026090 | Switch Handle |
| 18 | 1602026088 | Switch Handle |
| 19 | 1604611026 | Compression Spring |
| 19 | 1604611026 | Compression Spring |
| 20 | 1602319011 | Adjusting Slide |
| 20 | 1602319011 | Adjusting Slide |
| 24 | 1605500267 | Cover Marine Blue |
| 24 | 1605500268 | Cover Orange |
| 25 | 1605500271 | Housing Cover Marine Blue |
| 25 | 1605500272 | Housing Cover Orange |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 30 | 1600591014 | Air-Deflector Ring |
| 30 | 1600591014 | Air-Deflector Ring |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 343 | 1607000742 | Catch Lever |
| 343 | 1607000742 | Catch Lever |
| 343/44 | 1604611042 | Compression Spring |
| 343/44 | 1604611042 | Compression Spring |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200200 | Switch |
| 4 | 1607200200 | Switch |
| 40 | 1600119011 | Retaining clip |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 54 | 1603414026 | Torx Oval-Head Screw 4X30 |
| 6 | 1600703040 | Grommet |
| 6 | 1600703040 | Grommet |
| 651 | 1600A025XR | Protective Cover |
| 651 | 1600A025XR | Protective Cover |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 802 | 1607000397 | Field 220-240V |
| 802 | 1607000397 | Field 220-240V |
| 803 | 1604010A90 | Armature With Fan 230V |
| 803 | 1604010A90 | Armature With Fan 230V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3HC | Nameplate |
| 808 | 160111A3HC | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 810 | 1607014176 | Carbon-Brush Set |
| 813 | 1607000378 | Parts Set |
| 813 | 1607000378 | Parts Set |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 821 | 16058065SB | Gear Housing |
| 821 | 16058065SB | Gear Housing |
| 828 | 1607000E1D | Bearing Flange |
| 828 | 1607000E1D | Bearing Flange |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 828/04 | 3600210109 | O-Ring 47,0X1,5 MM |
| 831 | 1601290013 | Spring Element |
| 831 | 1601290013 | Spring Element |
| 835 | 1606610132 | Fan |
| 835 | 1606610132 | Fan |
| 840 | 1607000A71 | Push-Button |
| 840 | 1607000A71 | Push-Button |
| 851 | 1607233307 | Speed governor 220-240V |
| 851 | 1607233308 | Speed governor 220-240V |
| 860 | 1604448023 | Connecting Cable |
| 860 | 1604448023 | Connecting Cable |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 160202507H | Auxiliary Handle |
| 891 | 1602025044 | Auxiliary Handle Gray M 10 |
| 892 | 1603345043 | Round Nut M14 |
| 892 | 1603345043 | Round Nut M14 |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 896 | 1600A016PP | Fast Locking Flange |
| 896 | 1600A016PP | Fast Locking Flange |
| 9 | 1601118N24 | Manufacturer's nameplate |
