Bosch BACSDB-1 18V cordless drill driver: exploded parts diagram, 2 sheets, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

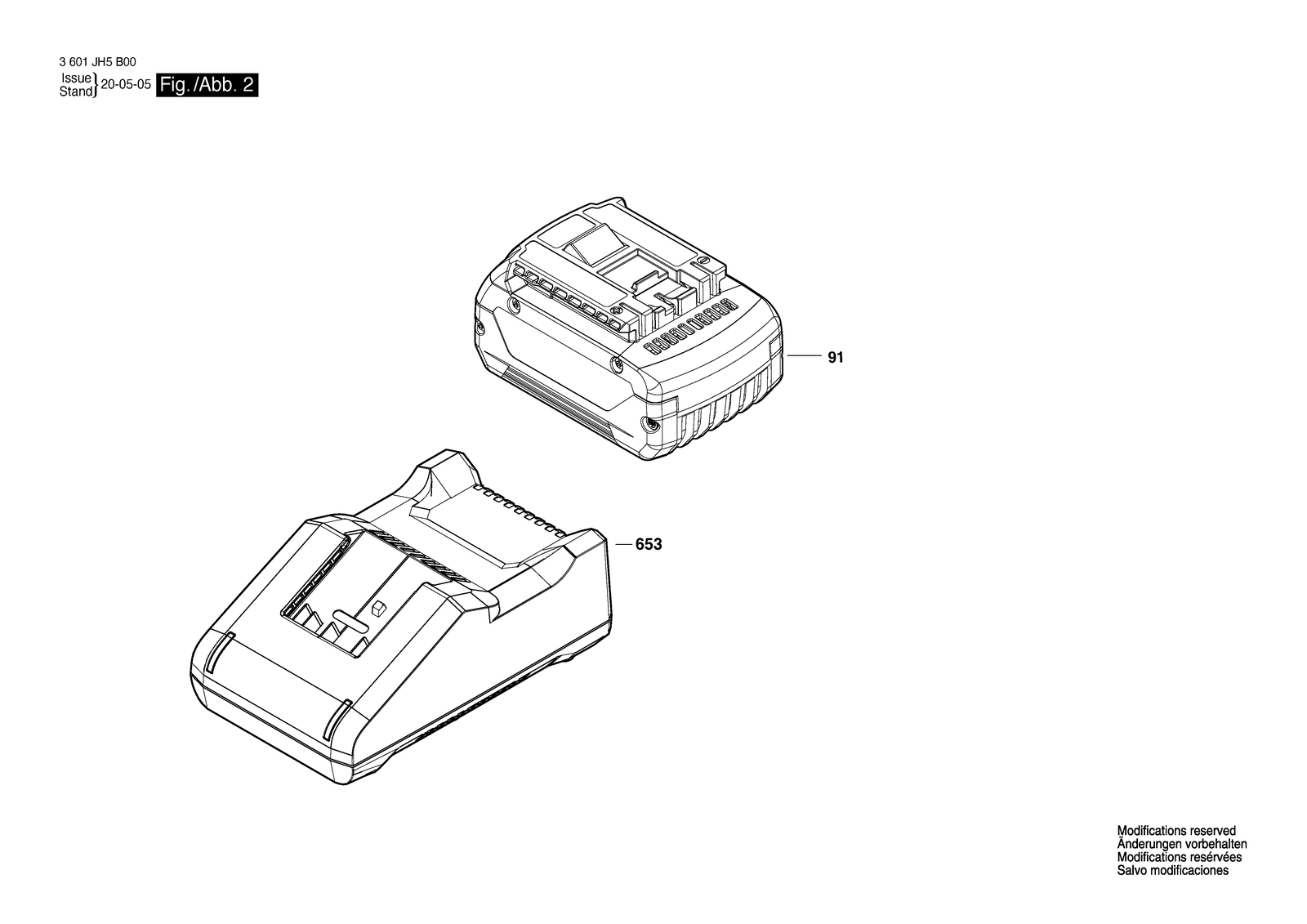

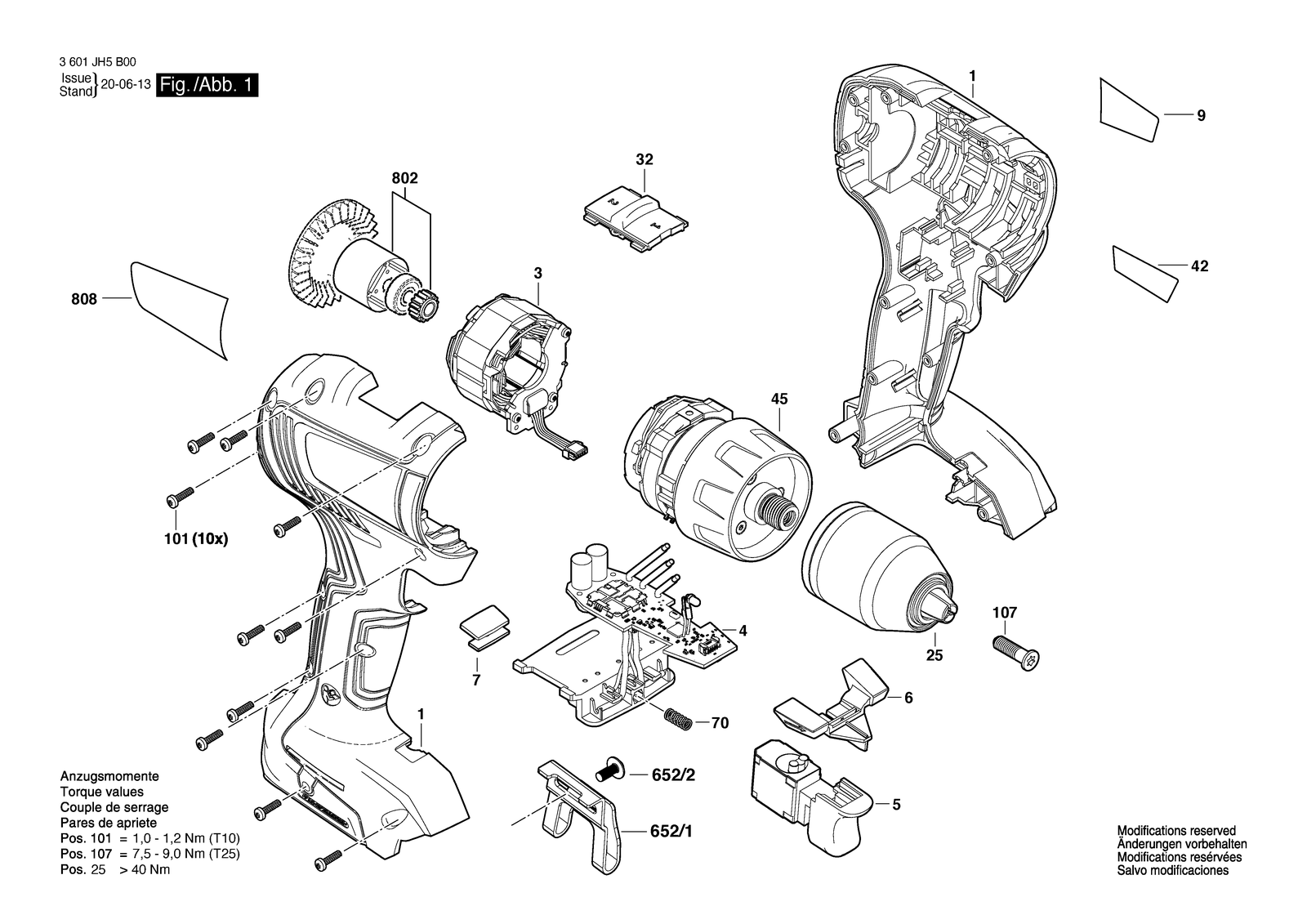

All parts of Bosch BACSDB-1 18V: 20 positions on 2 sheets
Bosch BACSDB-1 18V parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580665C | Housing |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 25 | 1600A02N9H | Keyless Chuck |
| 3 | 1600A016YW | Stator |
| 32 | 2609101758 | Switchover Unit |
| 4 | 16072335FX | Electronics Module |
| 42 | 160111C3TV | Sticker |
| 45 | 1600A0160R | Gear Box |
| 5 | 2607202523 | Switch |
| 6 | 1600A021MR | Changeover Lever |
| 652/1 | 2609111584 | Clip |
| 652/2 | 2609110834 | Screw |
| 653 | 2607226513 | Fast Charger Gb GAL 18V-40 220-240V |
| 7 | 2609100858 | Lens |
| 70 | 1609280477 | Compression Spring |
| 802 | 1607000DM8 | Motor Spare Parts Set |
| 808 | 160111A7UW | Nameplate |
| 9 | 160111C3TW | Manufacturer's nameplate |
| 91 | 1607A350M3 | Battery Pack |
