Bosch BACS 12 V

Bosch BACS 12 V batt-oper screwdriver: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACS 12 V: 21 positions on 1 sheet

Bosch BACS 12 V parts list (1 sheet)

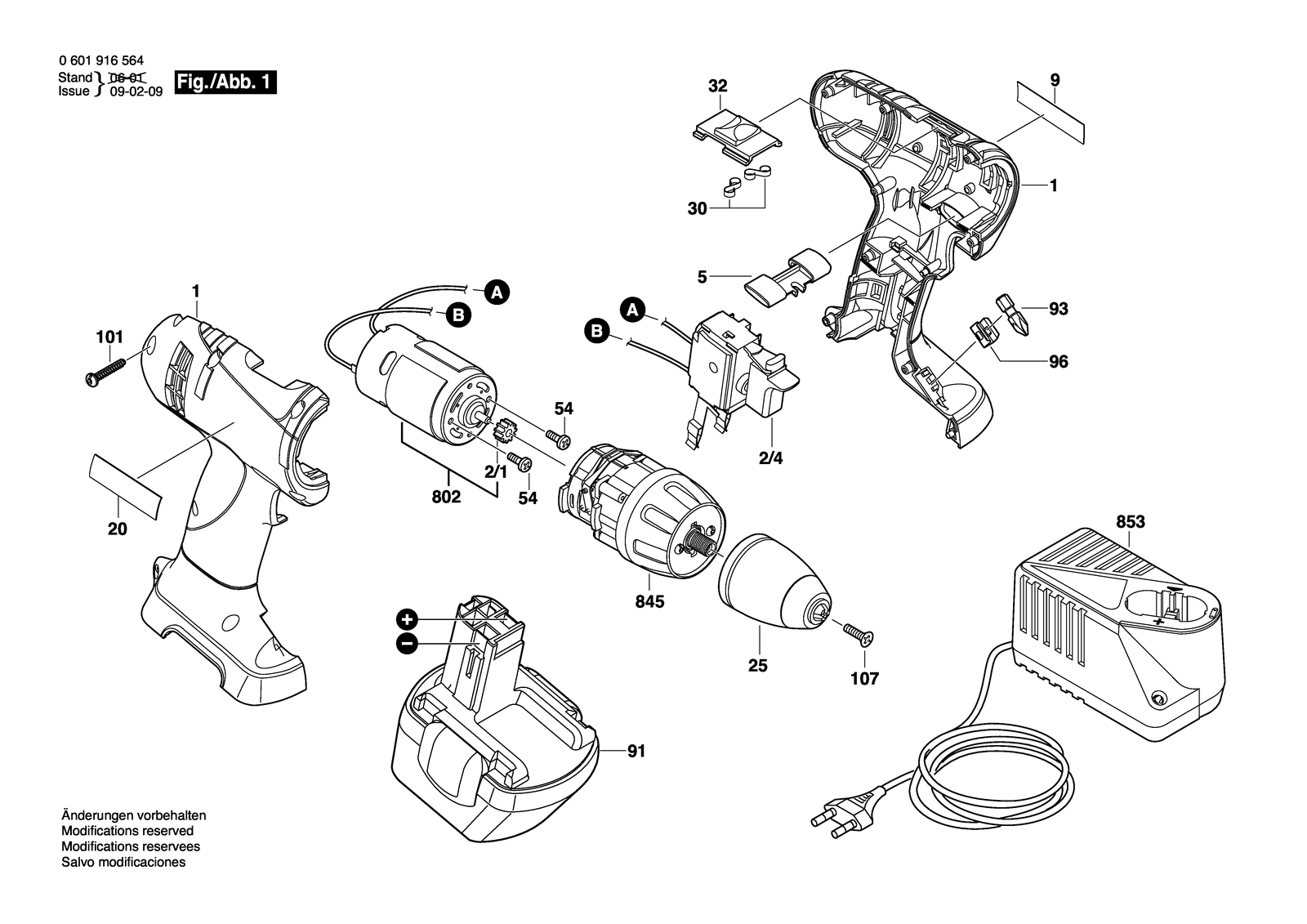

Bosch BACS 12 V parts diagram, sheet 1
No.Part numberPart name
12605105042Housing Section Blue/black
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072609110721Countersunk-Head Screw M5X20
2/12606316226Pinion
2/42607200482On-Off Switch
202601116501Reference Plate
252608572201Keyless Chuck
302604690022Leaf Spring
322601099133Adjusting Slide
52601099132Adjusting Slide
542603414049Torx SH cap screw M4X8-4,8-Z
8022607022869DC motor 12-14,4V
8452606200941Planetary Gear Train
8452606200946Planetary Gear Train
8532607225021Fast Charger EU 230/7,2-24V,1H
92601116500Manufacturer's nameplate
912607335647Slide-In Accu Package 12V, 1,5AH
912607335767Slide-In Accu Package 12V,2,6AH,NIMH
932607000366Screwdriver Bit
962604690035Spring Element
