Bosch BACP BL 12V

Bosch BACP BL 12V planer/power tool: exploded parts diagram, 2 sheets, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch BACP BL 12V: 47 positions on 2 sheets

Bosch BACP BL 12V parts list (2 sheets)

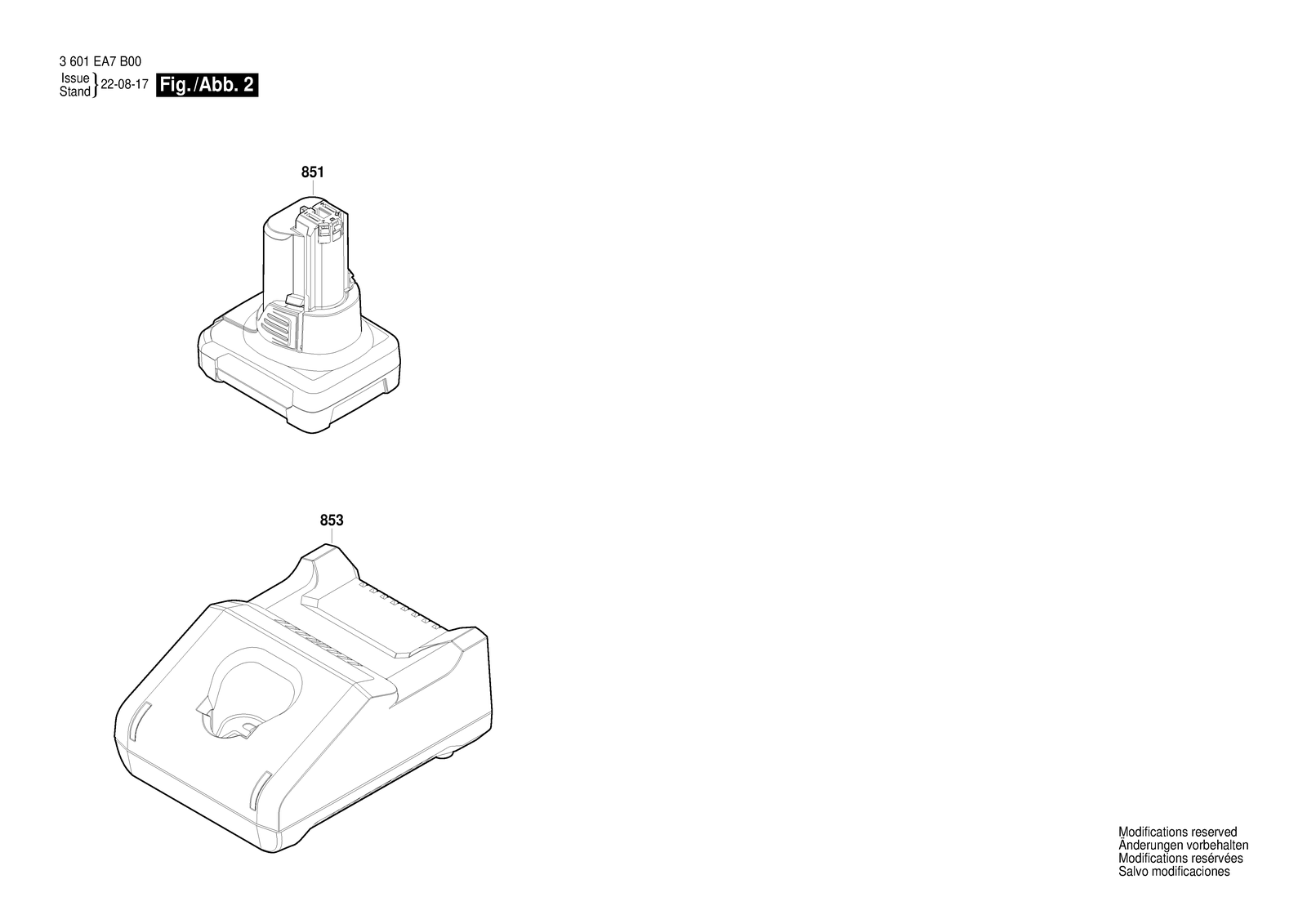

Bosch BACP BL 12V parts diagram, sheet 1Bosch BACP BL 12V parts diagram, sheet 2
No.Part numberPart name
116051082RZHousing Section
132609270035Frame
142603410051Thread-forming tap. Screw
1821600A02H1GLabel
212600034008Sheet metal cover
222604651034Torsion Spring
232917850080Straight Pin
242609270036Frame
252604448382Light Guide
262600707082Insulating Foil
272603490017Torx Oval-Head Screw 3X10
301600A029S0Button
312604690055Compression Spring
322600148020Air Deflection
331600A029RZSafety Switch
4160720038MSwitch
422600327009Threaded Ring
432916190108Shim ring
442600116099Spring retaining ring
452604610156Compression Spring
462600327008Rotary Knob
472600590006Ratchet Cap
482609200575Screw
492600451010Rotary Handle
516072335D3Electronic Module
502606338002Planer Head
512609200574Screw
522915011038Hex Nut M5-8-A
542606625041Toothed Belt Wheel
552918750129Spring Washer DIN 137-A6-X12CRNI17 7
562604736018Toothed Belt
602609004706Clip
612603490027Torx Oval-Head Screw 4X40
622603490024Torx Oval-Head Screw 4X25
631907950003Offset Screwdriver DIN 911 SW2,5
641600A029S1Blade Holder
662605500230Belt Cover
692609004274Clip
8031607000CH4Drive Unit
808160111A93BNameplate
8201607000CH6Base Plate
8401607000CH8Adjusting Plate
8511607A350A7Battery Pack BBP 12 V 4,0 AH 343769
8532607226381Fast Charger BBCF 12V 370468 10,8-12V 4A
8651600A01953Planing knife
8671607000CJ0Chip Deflector
9160111C4P7Manufacturer's nameplate Bacp BL 12 V
